Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

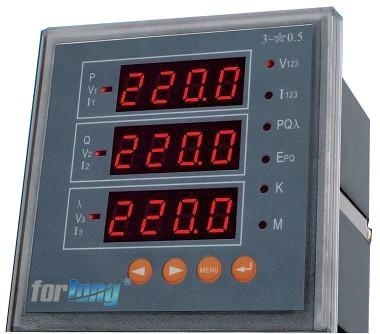

PM 800 series multifunction power meter integrate the functions with programmable measurement, display, digital communication and electric energy pulse transmitting output, which can carry out electric power measurement, electric energy calculation, data display, data acquisition and data transmission. They are widely used in transform substation automation, Distribution network automation, intelligent construction and the inner electric energy measurement, management and evaluation in the enterprise. The meters is class 0.5, achieved LED/LCD display on spot, RS485 digital interface communication remote control, adopt MODBUS-RUT communication protocol.
|
Accuracy |
U, I 0.2 class, P, Q 0.5 class, Active electric energy 0.5 class, Reactive electric energy 2 class |
|
Display |
LED / LCD Display |
|
Network |
Three Phase Three Line, Three Phase Four Line |
Input
measurement |
Voltage |
Rated value |
AC 100V, AC 400V |
|
Overloading |
Continuance: 1.2 times Instantaneous: Voltage 2 times (10s) |
|
Power consumption |
< 1VA(each phase) |
|
Current |
Impedance |
> 300kΩ |
|
Rated value |
AC1A, 5A |
|
Overloading |
Continuance: 1.2 times Instantaneous: Current 10 times (5s) |
|
Power consumption |
< 0.4VA(each phase) |
|
Impedance |
< 20mΩ |
|
Frequency |
50/60Hz± 10% |
|
Electric energy |
Active and reactive electric energy measuring |
|
Power supply |
Working range |
AC, DC 80V~270V |
|
Power consumption |
≤ 5VA |
|
Output |
Digital value |
RS-485 Interface, MODBUS-RTU protocol |
|
Pulse output |
2 electric energy pulse output, light coupler relay |
|
Operation condition |
Ambient temperature: -10~55° C, relative humidity ≤ 93%, no corrosive gas, height above sea level≤ 2500m |
|
Isolation withstand voltage |
Input and power supply> 2kV, input and output > 2kV, power supply and output> 1.5kV |
|
Insulation resistance |
≥ 100MΩ |
