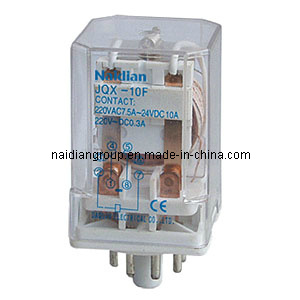

Naidian Relay (General Purpose Relay, Power Relay, PCB Relay)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
JQX-10F-3Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drawing: |
34.7*34.7*52.0mm |
Product Description
JQX-13F Power Relay, General-purpose relay
1. Contact capacity: 10A 28VDC 220VAC
2. Mounting Type: Socket
3. Coil power
Outline Dimensions And Wiring Diagram
Contact Data
|
Contact Ratings |
2Z |
3Z |
|
Contact Resistance |
50mΩ (1A 6VDC) |
|
Contact Resistance |
Ag alloy |
|
Contact capacity |
10A |
10A/5A(NO/NC) |
|
28VDC/220VAC |
28VDC/220VAC |
Characteristics
|
Insulation Resistance |
500MΩ, 500VDC |
|
Dielectric Strength |
BCC 1500Vr.m.s 1 minute |
|
BOC 1000Vr.m.s 1 minute |
|
Operate /Release Time |
20ms /20ms |
|
Terminal Type |
Socket |
COIL Power
|
Nominal Coil Power |
1.5W/2.5VA |
Coil data
|
Nominal Voltage VDC |
Pull-in Voltage
VDC |
Release Voltage
VDC |
Coil ResistanceΩ:±10% |
|
Nominal Voltage VAC |
Pull-in Voltage
VDC |
Release Voltage
VDC |
Coil ResistanceΩ:±10% |
|
6 |
4.8 |
0.60 |
40 |
6 |
4.80 |
1.80 |
5.5 |
|
12 |
9.6 |
1.20 |
80 |
12 |
9.60 |
3.60 |
24 |
|
24 |
19.2 |
2.40 |
325 |
24 |
19.2 |
7.20 |
72 |
|
48 |
38.4 |
4.80 |
1200 |
48 |
38.4 |
14.4 |
430 |
|
100 |
80.0 |
10.0 |
7550 |
110/120 |
96.0 |
36 |
1512 |
|
110 |
88.0 |
11.0 |
9000 |
220/240 |
176.0 |
72.0 |
6050/7200 |
Established in1989, With a 20-plus year history of leadership, Naidian Group Co., Ltd located in China Electric Capital - Liushi where is regarded as low voltage electrical equipment production base of China. We design, manufacture and market products for customers in industries ranging. Naidian is an professional manufacturer & exporter of relays.
We mainly produce all types of relays, such as Power Relay, PCB Relay, General-purpose Relay, Solid State Relay, Time Relay, Automotive Relay, Counter, Thermal Relay, Electromagnetic Relay, Earth Leakage Relay, liquid Level Relay, motor control motor protection series, Relay Socket.
ISO9001 quality management have been strictly operating in our corporation, Meanwhile the products have been approved by UL, cUL, TUV, CE, CCC Certificate. The company is advanced in technical strength and has adopted auto, semi-auto production line to manufacture product. We are also strong in the technical reform, new items development and some products have passed new design patent.
Looking into the future, the group will face more business opportunity, and more challenge. Naidian will comply with request and development of epoch, continue to further and reform innovation, expand capital strength, implement brand strategy, create the new increasing point, and look forward to cooperate with customers at home and abroad.
Excellence, share with the world. ------- Naidian Group Co., Ltd.
