Product Specifications
| Prod Model: |
CT-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

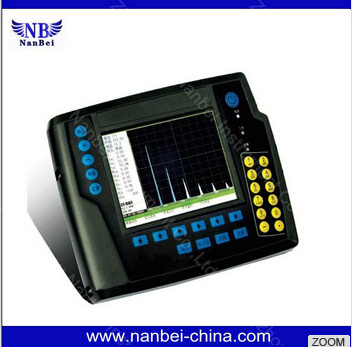

Ultrasonic Flaw Detector |
Product Description
Quick Details
Place of Origin: |
Henan, China (Mainland) |
Brand Name: |
Nanbei |
Model Number: |
CT-60 |
Power: |
Electronic |
Usage: |
Auto Testing Machine |
Detection range of ultrasonic flaw: |
0.5~6000mm |
Packaging & Delivery
Packaging Details: | Export standard packaging for digital ultrasonic flaw detector. |
| Delivery Detail: | delivery in 3-10 days |
Specifications
digital ultrasonic flaw detector:
1,automatic production DAC curve
2,long working hours
3,automatic display report
4,safe
Product Description
The instrument can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate,evaluate and diagnose.
Widely used in laboratory, hospital special prosecutor, shipbuilding, oil and gas equipment,aerospace, defense, chemical, electric power, iron and steel, metallurgy, railway, automobile manufacturing, machinery, boilers, pressure vessels, special equipment, oil pipelines, construction, mold manufacturing and other industries.
Our forgings, castings, plate, pipe, bar, steel alloy type parts of the testing has a wealth of experience.
Functions and features:
1, Automatic test probe zero velocity and K values.
2, Automatic production DAC curve.
3, Automatic displays the flaw echo position (level, depth, distance, when the value).
4, Automatic shutter sound and light alarm (door position, the door width, door height freely adjustable).
5, Free switching 100 channel group testing process.
6, Automatically generate standard inspection report.
7, Free to input the industry testing standards report.
8, All imports of original motherboard devices.
9, Large-capacity storage, 5000 testing data space, data is not lost after power.
10, Long working hours, no memory effect efficient lithium battery, ensure that continuous working time is more than six hours.
11, Channel password, testing personnel can be stored their inspection channels, permanently kept not is modified by someone else.
12, Built-in communications software, connect the network cable directly to your computer to print and save all testing data.
13, Two-way communication, users can edit their own inspection report format.
14, Testing waveforms save time dynamic video.
Technical parameters:
Gain range |
0-120dB,0.1,2.0,6.0dBStepping |
Frequency Range |
0.4~20.0MHz |
Detection range |
0.5~6000mm |
Sensitivity margin |
>62dB |
Resolution |
>40dB |
Dynamic Range |
>32dB |
Horizontal linear |
1m within 0 |
CUI linear |
<3% |
Pusler |
Variable pulse generator |
Work Mode |
Single / Dual Penetrate |
Damping |
50/100/400Ω automatically match |
Detection method |
Half-wave / Radiofrequency |
suppression |
0 to 99% linear inhibition |
Display ambient temperature |
-20 ~ 50 °C |
The charger |
220 ~ 240V AC input |
Operating Voltage |
7.4V ± 0.3V |
Size |
215 * 175 * 33mm |
Weight |
1kg
|
