Manufacturer of PK bucket elevator: Henan Pingyuan Mining Machinery Co., Ltd
Brand of bucket elevator: PK

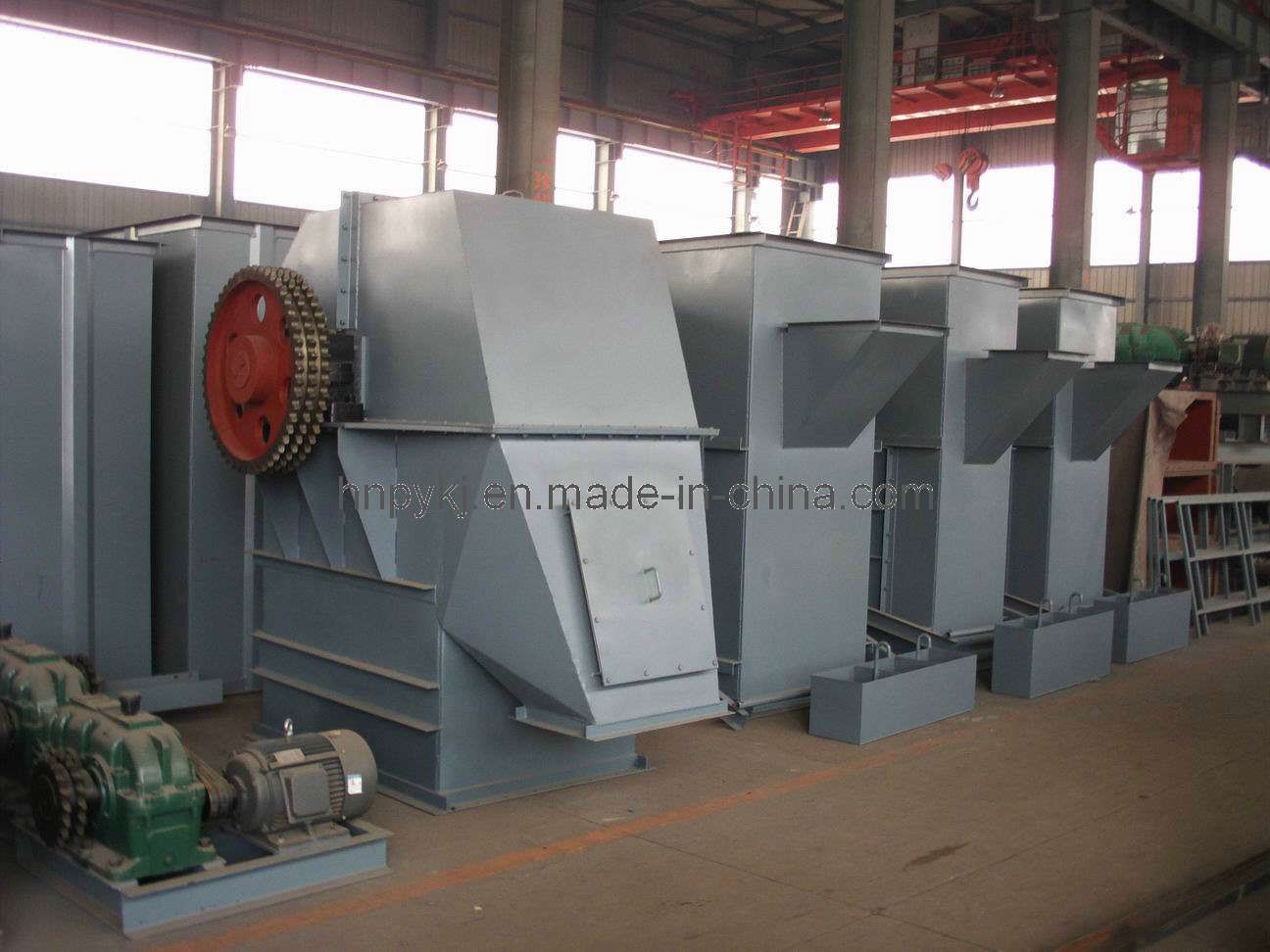

NE, NSE Series Plate-Chain Bucket Elevator is applicable for vertical transporting of powder, bulk and all other materials. It replaces traditional fish-out feeding with flow-into feeding. It is an upgrated product instead of traditional bucket elevator.
Features & Technical requirements:
Flow-into feeding can make that there is hardly extrusion and impact happening among all parts of conveyor and materials. It runs stably and it's easy to maitain.
Transporting Chain can repalce point-contact ring chain with face-contact plain chain. It can greatly increase lifetime, which can come up to more than 5 years.
Flow-into feeding, gravity-inducing discharge, the low bucket, the high line speed(15-30m/min)...
| Model | Capacity (m3/h) | Max. particle size (mm) | Material bulk density (t/m3) | Max. lifting height (m) | Motor Power (kw) |
| NE15 | 10-15 | 40 | 0.6-2.0 | 35 | 1.5-4 |
| NE30 | 18.5-31 | 55 | 0.6-2.0 | 50 | 1.5-11 |
| NE50 | 35-60 | 60 | 0.6-2.0 | 45 | 1.5-18.5 |
| NE100 | 75-110 | 70 | 0.6-2.0 | 45 | 5.5-30 |
| NE150 | 112-165 | 90 | 0.6-2.0 | 45 | 5.5-45 |
| NE200 | 170-220 | 100 | 0.6-1.8 | 40 | 7.5-55 |
| NE30 | 230-340 | 125 | 0.6-1.8 | 40 | 11-75 |
| NE400 | 340-450 | 130 | 0.6-1.8 | 30 | 18.5-90 |
| NE500 | 450-550 | 140 | 0.6-1.8 | 30 | 30-110 |
| NE600 | 550-660 | 150 | 0.6-1.8 | 30 | 37-132 |
| NE800 | 680-830 | 165 | 0.6-1.8 | 30 | 37-160 |
Henan Pingyuan Mining Machinery Co., Ltd is a professional manufacturer of screening equipment, conveying machinery and vibrating feeder etc. The company locates in Xinxiang, covering above 60 thousand square meters. Since established in 1960s, the company has been taking the scientific management method of the modern enterprise, producing with advanced production technology and considerate service and developing to a promising pearl of the mechanical industry in China.
Till now, the company has developed to be a professional team integrated with R&D and production system. Our objective is to design and customize as per the customers' requirements with all kinds of mining machinery: Vibrating Screen, Bucket Elevator, Vibrating Feeder, Belt conveyor and other type conveyors. Especially a featured self-developed conveyor have not only filled the blank of domestic market, but also gained favarable comments and trusts from foreigners and successfully achieved ISO9001: 2000 Quality Management Certificate and EU CE Certificate. The Company was also awarded the title of "Contract Abiding and Promise Keeping Enterprise", "Key Enterprise", "AAA Credit Enterprise" and "National Science and Technology Advancement Prize" in China. The company has been adhering to the principle of "Honesty and Faithfulness, Quality First, Mutual Benefit and Common Progress" under which the Company has successfully exported to Pakistan, South Asia, Vietnam, Turkey, Russia, Africa, EU etc.
We will make full use of our strong ability of R&D and production, sound quality assurance system, good reputation and after service to satisfy all customers' requirements. If you are interested in our products, please feel free to contact us timely. We must be your most loyal friend.
