Product Specifications
Prod Model: |
NES-120W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Output Voltage: |
5V 12V 24V |
OEM: |
Yes |
Size: |
159*97*38mm |
Weight: |
0.5kg |
Output Type: |
Single |
Output Power: |
101 - 200W |
Input Voltage: |
110-220V |
Voltage Regulating Mode: |
Frequency Modulation Type |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Self-excited Switching Power Supply |
Warranty: |
2 Years |
Power Supplying System: |
Terminal Power Distribution Equipment |
Certification: |
CE |
Product Description

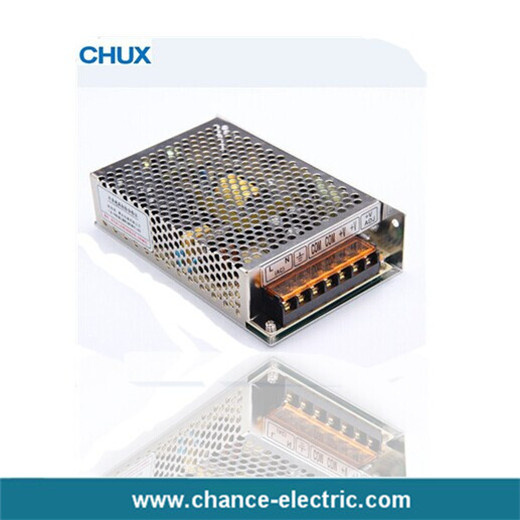

NES 120W High Efficiency Switching Power Supply ( NES-120W)
Feature:
1. Low price and high reliability of LED switching power supply
2.105 degree output capacitor
3. AC input power suitable for the world
4. High efficiency and low operation temperature
5. Soft-start current can reduce the AC input impact effecticly
6. Compact size, light weight
7.100% full-load bum-in test
8.24hours testing
9. Installed with EMI filter, minimum wave.
1) PROTECTION
· Over Load: 110%~150% Type: Pulsing hiccup shutdown Reset: Auto recovery
· Over Voltage: 115%-135%; Hiccup mode, recovers automatically after fault condition is removed.
2) ENVIRONMENT
· Working Temp. & Humidity: -10º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -20º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min, /1cycle, Period for 60min, Each axes
4) SAFETY STANDARDS
· Withstand Voltage; Input and output internal: 1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure: 0.5KvAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ /500VDC
· Safety Standards: Design refer to UL1012, UL1950, TUV, EN60950
· EMC Standards: Design refer to CISPR22(EN55022), IEC801-2, 3, 4, IEC555-2 Verification
MODEL | NES-120-5 | NES-120-12 | NES-120-15 | NES-120-24 |
OUTPUT | DC voltage | 5V | 12V | 15V | 24V |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% |
Rated current | 20A | 10A | 8A | 5A |
Current range | 0~20A | 0~10A | 0~8A | 0~5A |
Rated power | 100W | 120W | 120.5W | 120.8W |
Ripple&noise | 80mvp-p | 100mvp-p | 100mvp-p | 120mvp-p |
DC voltage ADJ.range | -9%~+10% | ±10% | ±10% | ±10% |
INPUT | Voltage range | 90~137VAC/176~264VAC Selected By Switch,125~373VDC |
frequency | 47~63Hz |
AC current | 2.2A/115VAC,1.1A/230VAC |
efficiency | 79% | 82% | 82% | 84% |
Inrush current | Cold start current 20A/115VAC,40A/230VAC |
Leakage current | < 2mA/240VAC |
