Product Specifications
Prod Model: |
XXD-13LX03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Network Cabling & Computer Cable & LAN Cable |
Conductor: |
Ofc/Bc/CCA/CCS |
Wire Guage: |
23/24/26/28 AWG Optional |
No. Of Conductor: |
8 |
Insulation: |
HDPE |
Jacket: |
PVC,Lszh,PE |
OEM&ODM: |
Available |
Color: |
as Your Require |
Length: |
305m/Roll |
Delivery Time: |
7-15days |
Application: |
RF Cable |
Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
Type: |
Cat 6 |
Cover Material: |
PVC |
Certification: |
UL |
Product Description

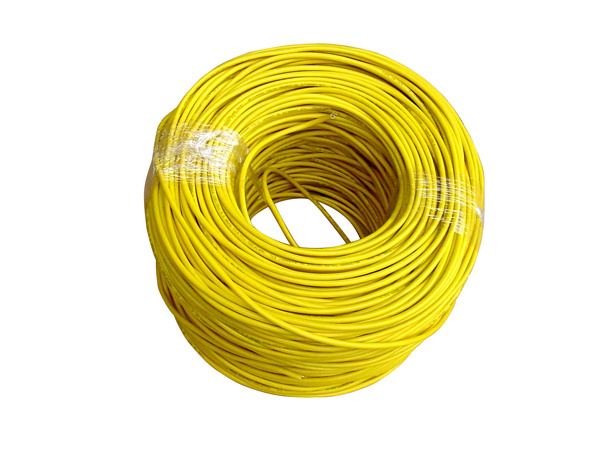

Network Cabling & Computer Cable & LAN Cable
PRODUCT DESCRIPTION
1. The center conduction of the 4 pairs FTP Cat. 6 cable is made of 23AWG bare Copper. This kind of cable also adopts PE material to be the dielectric, AL foil To be the shield and fireproof material to be the jacket. Besides, the "+" Typer inner frame setted in the center is good for keeping the balance and Quality, which are so important for the cat. 6 communication.
2. This Cat. 6 FTP cable is conform to the related standards like ISO/IEC, TIA/EIA And EN.
3. All the electrical characteristics are exceed the lastest Cat. 6 standards Of ISO/IEC.
4. LSZH: Means "Low smoke zero halogen", which is the symbol of environmental Protection.
ELECTRICAL CHARACTERISTICS
1. Return resisitance: 14.9/100m
2. Impedance: 100± 5
3. Static electric capacity: 46pF/m 1kHz
4. Unbalance capacity: 100pF/100m
5. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Outer diameter: 6.8mm
3. Shielding material: AL foil
4. Weight: 13.9 kg/kft
5. Minimum bend radius: 60mm
6. Maximum pulling tension: 10kg
7. Jacket material: PVC/LSZH
8. Roted temperature: -20~60
9. Packing: Axles
APPLICATION
1.10/100/1000Mbps Ethernet;
2.100VG-AnyLAN;
3. Token ring; ATM155/ATM622, etc.
STANDARD
1. ISO/IEC-11801 (2ND edition)
2. EN (2ND edition)
3. TIA/EIA-568B. 2-1
Color of Insulation:
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Other color available according to client's request.
Features:
1. Double Shields Assure the Anti-Jam and Data-Protection Strongly
2. Fast and Reliable Connection
3. Twisted Pairs with Bright Color for Easy Recognition
4. Ripcord and Footmark for Convenient Use
5. Smooth Jacket for Easy Pulling in Tight Space
6. Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Packing:
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
Ethernet lan cable |
Category |
Cat5e,cat6.cat6A,cat7 |
Specification |
4 pairs |
Conductor |
0.58mm(23AWG),0.5mm(24AWG),0.4mm(26AWG) |
Material |
Oxygen free copper,Bare copper,CCA,CCS |
Shield |
UTP(Unshielded Twisted Pair), FTP(Shielded Foil Twisted Pair), SFTP(Shielded Foil Twisted Pair) |
Jacket |
PVC,LSZH,PE |
Color |
Grey,Blue,White,Black,Green,Yellow,Red,etc |
Meters |
305mtr/box |
