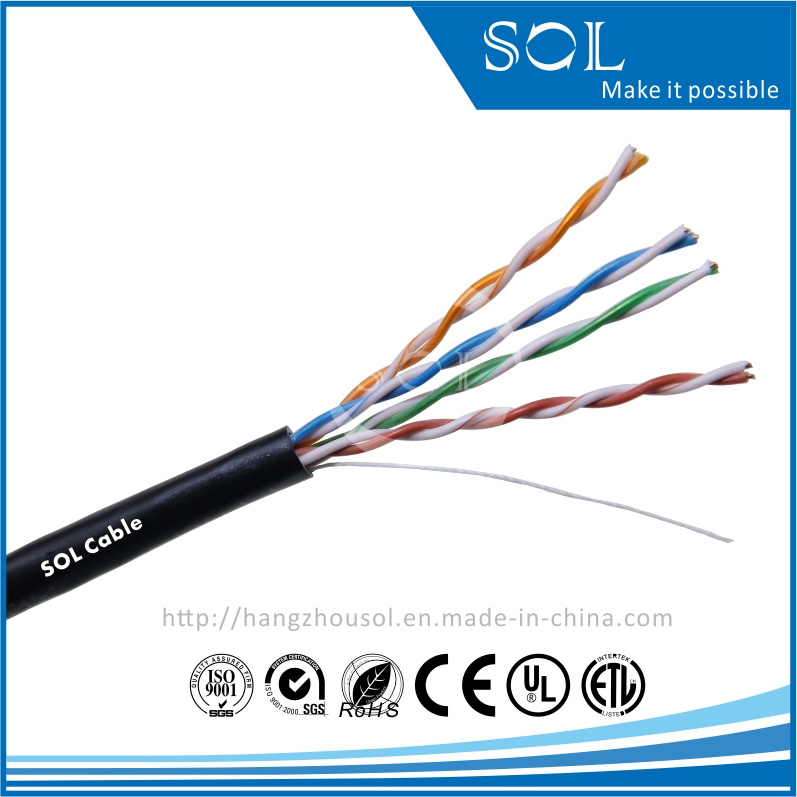

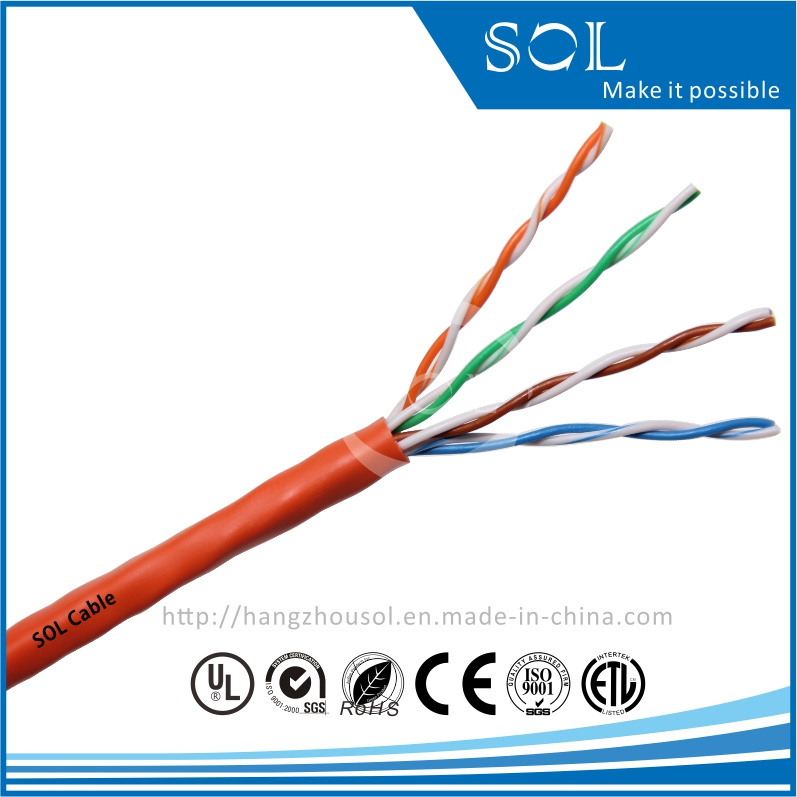

Network Computer 4pairs LAN Cable (UTP Cat5e)
Price: |
US $ 0.15/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10000/Meter |
Pay Type: |
L/C,T/T,D/P |
Lan Cable Series:UTP Cat5e (Unshielded Twisted 4Pairs) Application: used as work-station oution to the FD/IDF and other horizontal cabling, supporting:TP-PMD Audio, Integrated service digital network(ISDN), ATM, 100Base-TX, 100VG-AnyLAN, 1000Base-T(Gigabit Ethernet), Fast Ethernet ETC.UTP cat5e | No. | STRUCTURE | MATERIAL |
1 | Conductor | Bare solid copper |
2 | Insulation | Colourcoded PE |
3 | Polyester | Optional |
4 | Rip cord | Optional |
5 | Shield | PET/AL |
6 | Jacket | Lead free PVC or LSZH |
Description | Flammability grade | CMX, CM, CMG, CMR |
Rated temperature | 60°C , 75°C, 90°C |
Reference Standard | UL444, UL1581 |
Note: Other specification can be made upon customer requirements.Item No. | Construction | Nominal Conductor Dimension mm | Nomial Insulation Diameter mm | No.of Pairs | Nomial Cable OD. Mm | Type oljacket | Remark |
UTP5e-500 | UTP | 0.5 | 0.89 | 4 | 5.1/5.4 | PVC/PE/LSZH | 100MHz |
NCUTP5e-510APD | UTP | 0.51 | 1.01 | 4 | 6 | PE | Jelly Filled 100MHz |
UTP5e-510WBT | UTP | 0.51 | 0.95 | 4 | 6.5 | PE | iAfeter blocked Tape 100MHz |
UTP5e-500DB | UTP | 0.5 | 0.9 | 4 | 6.3 | PVC+PE | 100MHz |
UTP5e-510#350 | UTP | 0.51 | 0.91 | 4 | 5.3 | PVC/LSZH | 350MHz |
Packing:100m/200m per Coil/roll, 200m/250m per Reel,500ft/1000ft per Rolling Reel, 305m/500m per wooden Drum. Delivery Day: 20days after receiving the T/T payment. Port: Shanghai Port, Ningbo Port.
Prod Model: |
UTP Cat5e |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Conductor: |
Bare Solid Copper |
Insulation: |
HDPE |
Rip Cord: |
Optional |
Jacket: |
PVC or Lszh |
Filled: |
Jelly |
Application: |
LAN Cable |
Conductor Material: |
Copper |
Cover Material: |
PE |
Type: |
Cat 5 |
Certification: |
SGS |
Model: |
UTP Cat5e |
Brand: |
Sol |
We specialize in cable & wires 15years!
HangZhou SOL Information Technology Co., Ltd. is one of a professional cable manufacturer & trading company, located in HangZhou ZheJiang, the largest cable production base in China. There is the more competitive raw material, excellent technical personnels & the complete industry chain.
The location is closed to HangZhou International airport, and NingBo or Shanghai international port.
At first it was founded in HongKong in 2000 as a international agency procurement super expert office, we enjoys a high reputation in the international cable industry since past 15years. Also we win the honor Outstanding Leader from Alibaba.
We will be glad to stand with you, support you & win our mutual future.
SOL Cable & wires always your best choose!
Our specifications for your kindly reference:
LAN Cable Cat5E UTP/FTP, SFTP, CAT6
Coaxial Cable RG6, RG59, RG11, 500;
With UL, CE & ISO Cert.
Telephone wire, Speaker cable, Electrical wire
Composite cable & accessories
Optical Fiber Cable GYXTY; GYXTA; GYSTY; GYSTS; GYXTY53; ADSS; GYXTC8Y; GYXTC8S;
GYDXTW; DYDSTS; GYSTY53; GYSTA53; GYXTA53; 2-12cores; 24cores...
