| Price: | US $ 21000-28400/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
Overall size: L * W * H (mm) : 5200*2380*1840
Features:
1. Model: Uni-input & Uni-output shaft
2. Rolls: made of chilled cast iron , depth of chill 4 -22 mm, cored, hardness 42-55HRC, with smooth surface after precision ground & mirror polished processing.
3. Roll cooling arrangement: through recycle cooling water station
4. Roll safety: shear pad arrangment, with safety shear force of 800kN.
5. Hand of drive: right hand
6. Reducer: planetary circular hardened tooth surface type . Noise is low, and using life is long.
7. Bush: three types, nylon, copper, and roller bearing
8. Nip adjustment: two types, manual and electric
9. Lubrication of roll: two types, oil lubrication and grease lubrication
10. Emergency stop device: with emergency button and lever, to ensure the safety of operator and equipment.
Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.
Company Information:
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.

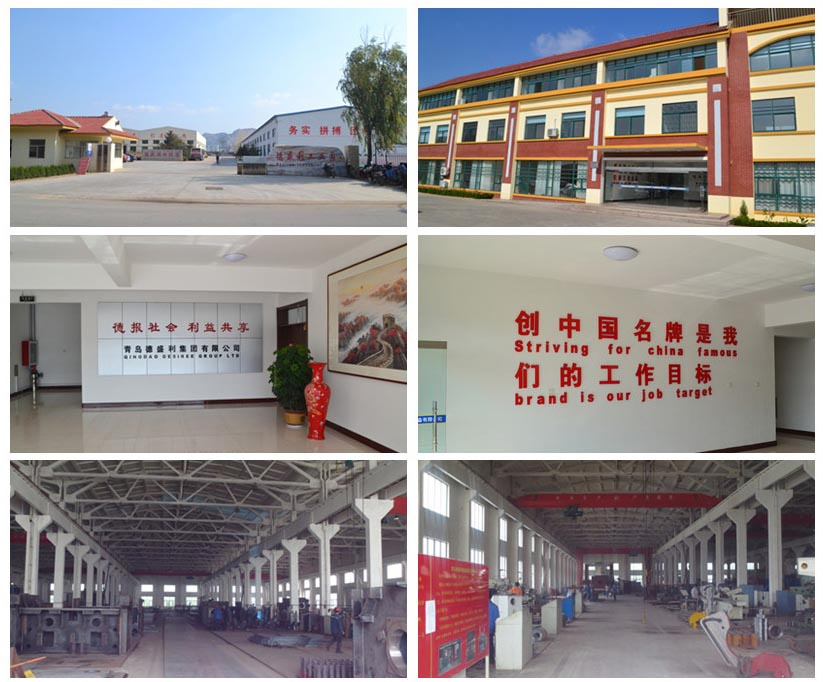

Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas
3. Any demand, we will give feedback within 24hours.
Technical Parameters:| Open Mixing Mill Model No. | XK-400 | XK-550B | XK-660 |
| Roll working diameter(mm) | 400 | 550 | 660 |
| Roll working length(mm) | 1000 | 1500 | 2130 |
| Linear velocity of the front roll(m/min) | 18.65 | 27.94 | 28.6 |
| Friction ratio of rolls | 1:1.27 | 1:1.22 | 1:1.24 |
| Max. nip of rolls(mm) | 10 | 15 | 15 |
| Feeding capacity per batch(kg) | 18-35 | 50~60 | 165 |
| Motor power(kW) | 37 | 110 | 245 |
| Overall size: L * W * H (mm) | 4350*1850*1785 | 5870*2475*2045 | 7465*3662*2080 |
| Prod Model: | XK-450C |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Customized: | Customized |
| Voltage: | 380V |
| Weight: | <50 tons |
| Type Of General Rubber Machinery: | Mixing Roll |
| Type Of Tire Machinery: | Rubber Regeneration Machinery |
| Certification: | ISO, CE |
| Power: | 10~100KW |
| Using Life: | ≥15 Years |
| Name: | Open Mixing Mill |
| Type: | General Rubber Machinery |
| Warranty: | 12months |
