| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | MB420 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Gaohua |
| Model Number: | MB400 |
| Name: | Industrial Pressure Transmitter |
| Pressure Reference: | Gauge, Absolute, Sealed Gauge |
| Power Supply: | 20VDC-36VDC |
| Output Signal: | 4-20mA, 0-5V, 0-10V, 1-5V |
| Applications: | Petroleum, Chemical Industry, Metallurgy, Engineeri |
| Compensation Temperature: | 0-80 Centigrade |
| Medium Temperature: | -40-125 Centigrade |
Features
4 digits LED digital indicator displaying pressure value
F.S software adjustable
RS485,RS232,HART,CAN protocol
Accepting custom design
Application
Engineering machinery,Car
Oil and Chemical industry
Automatic checkout systen
Shipping,Railway transportation
Wind power generation
Supply heating,Medicine
Hydraulic pressure,Air compressor and Pump
Introduction

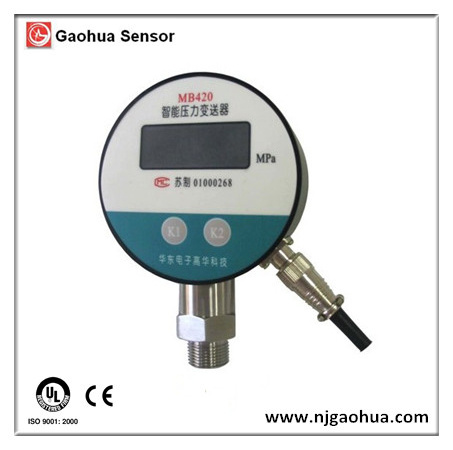

MB420 intelligent pressure transmitter adopts all-weld OEM oil
filled pressure sensor and ADI proffesional chip,combined with microprocessor technology,it has the fuctions, such as 4 digits LED digital indicator to display pressure value,data processing,zero/F.S software adjustable, permanently saved the setting parameters,4~20mA output signal etc.Widely used in process control field of petroleum, chemical industry,general machinery,metallurgy, etc.
|
MB420 |
Industrial Pressure Transmitter |
||||||||
|
|
0~1MPa |
Pressure range,Please write the range directly ( Unit:Mpa,kpa,psi,bar ^ ) |
|||||||
|
|
Code |
Pressure reference |
|||||||
|
A |
absolute pressure |
||||||||
|
G |
gauge pressure |
||||||||
|
S |
sealed gauge pressure |
||||||||
|
|
Code |
Excitation |
|||||||
|
V1 |
24V |
||||||||
|
V2 |
12V |
||||||||
|
V3 |
others (please specify) |
||||||||
|
|
Code |
Output signal |
|||||||
|
S 1 |
4 ~ 20mA |
||||||||
|
S 2 |
1 ~ 5V |
||||||||
|
S 3 |
0 ~ 5V |
||||||||
|
S 4 |
others (please specify) |
||||||||
|
|
Code |
Electrical connection |
|||||||
|
E 1 |
Aviation connector |
||||||||
|
E 2 |
Cable directly |
||||||||
|
E 3 |
others(please specify) |
||||||||
|
|
Code |
Pressure connection |
|||||||
|
C 1 |
M20×1.5 |
||||||||
|
C 2 |
G1/2'' |
||||||||
|
C 3 |
others (please specify) |
||||||||
|
|
Code |
Accuracy |
|||||||
|
A 1 |
0.1%FS |
||||||||
|
A 2 |
0.25%FS |
||||||||
|
A 3 |
0.5%FS (typ.) |
||||||||
|
A4 |
1 %FS |
||||||||
|
|
S |
Others,Please note when ordering |
|||||||
|
MB420 |
1MPa |
G |
V1 |
S 1 |
E 1 |
C 1 |
A 1 |
S |
|
