Product Specifications
| Prod Model: |
FV50B/1-150S |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gray |
| Protection Mode: |
L-N / L-PE |
| Response Time: |
<100ns |
| Function: |
Surge Protection for Power System in AC Side |
| No. Of Poles: |
1 Pole |
| OEM&ODM: |
Welcome |
| Uc: |
150V AC |
| Iimp: |
50ka |
| Imax: |
140ka |
| Disconnection Indicator: |
Mechanical Indicator |
| Type: |
Power Source Arrester |
| Structure: |
Protective Gap |
| Certification: |
CE |
| Brand: |
Fatech |
Product Description

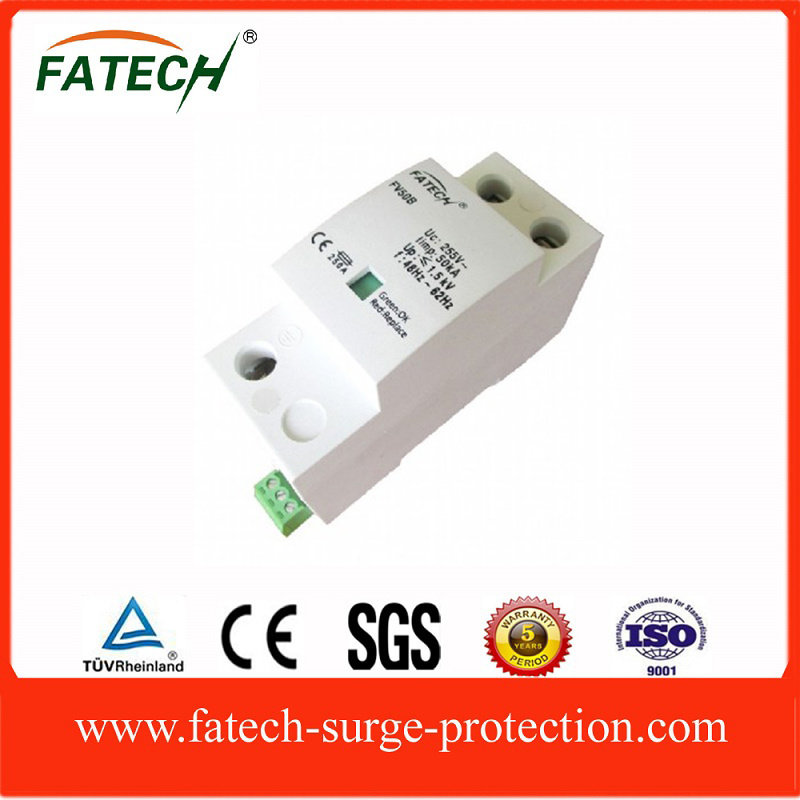

AC SPD FV50B/1-150S is for low-voltage power supply 150V, Imax 140kA, 1pole.
1.surge arrester Characteristic for surge arrester FV50B/1-150S
-Class I 50kA surge arrester with remote control contacts,
- With indication window,
- Compact design,
-Used in the lightning protection zones concept at boundary LPZ0B-LPZ1,
-The core parts are spark gap with high discharge capacity,
-35mm2 DIN-rail in accordance with EN 50022/DIN46277-3,
-Low residual voltage and quick response.
-Protection mode: L-N / L-PE.
2. surge arrester Certificate
CE, ISO9001-2008
3.surge arrester electrical parameters for surge arrester FV50B/1-150S
| Model No.: FV50B/1-150S |
|
|
|
| Max. continuous AC voltage | Uc | V | 150 |
| Requirement class to DIN EN 61643-1: 2005 |
|
| Class B |
| Max. Discharge current(8/20μ s) | Imax | kA | 140 |
| Impulse discharge current (1/350μ s) | Iimp | kA | 50 |
| Voltage protection level (at In) | Up | kV | <=1.5 |
| Response time | tA | ns | 100 |
| Operation temperature range |
|
| -40 ~ +85degree |
| Degree of protection |
|
| IP20 |
| Remote control contacts |
|
| YES |
Fatech Electronic (Foshan) Co., Ltd., is a professional manufacturer on R&D, production and sales of lightning and surge protection products. We have two centers (R & D center, marketing center) and joint venture manufacturing bases in China.
Our main products including:
- Surge arresters for protection of photovoltaic system,
- Surge protection devices for protection of power supply systems,
- SPD surge protectors for protection of signal system,
- Lighting rod,
- Test devices,
- Metal oxide varistors.
Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support.
We have an independent testing laboratory, and a complete set of advanced testing equipment, including impulse current generator, the SPD Test System of Thermal Stability, varistor tester, lightning device tester, & TOV testers. We built up a complete quality control system, and strict process control system, product's stability & reliability are qualified by users.
Our company gathered authority technical experts and professionals, including 2 senior engineers, 5 engineers, and 11 excellent technicians with more than five years experience in lightning and surge protection industry. FATECH is well-known registered trademark, our products have achieved certificates of CE, and the company is achieved ISO9001-2008 quality system.
Based on our superior location advantages (It needs 50 minutes drive from Guangzhou Baiyun International Airport, 2 hours drive from Hong Kong), adhering to the business philosophy - "quality first, customer first, sustainable development", we are encouraging independent innovation, brand influence is increasing day by day, the products is selling to more than 30 countries in Europe, Latin America, Asia-Pacific and other regions.
Here are the advantages of us:
1. Stable Quality --- Product performance is stable and reliable.
2. Competitive Price --- Strict cost control system achievements very competitive prices.
3. Fast and always on-time delivery --- Leading technology and production capacity advantage make sure the short & fast delivery and always on-time.
4. ODM & OEM service supplied --- We are able to make not only standard surge protection devices, but also special products according to customer's requirement...
5. Professional on R&D and manufacturing --- With the capability and experience to provide customers with lightning and surge protection applications solutions
