Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
1 HDMI |
| Output: |
4 HDMI |
| Supprot: |
3D, 4k X 2k, 1080P |
| Usage: |
Video |
| Edition: |
3D |
| Package: |
Paper Bag |
| Condition: |
Used |
| Customized: |
Non-Customized |
Product Description

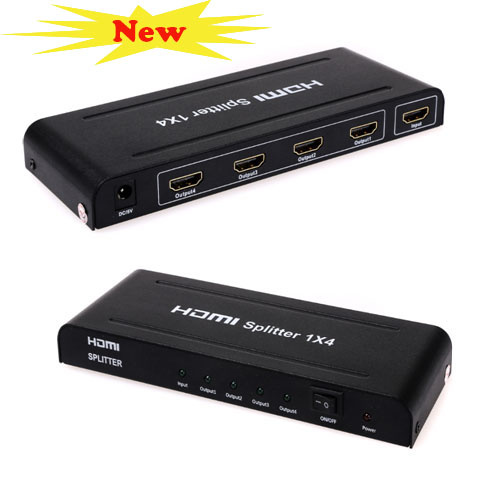

New Designed 1x4 HDMI Splitter 1 in 4 out with 3D Supported
Description:
1). Distributes 1 HDMI source to 4 HDMI Displays simultaneously.
2). Supports all the mandatory and several optional 3D formats.
3). Supports High Definition Resolutions: 4KX2K @ 24 HZ, 1080p @ 60HZ, 720p/1080i @ 120Hz
4). Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio
5). DC 5V Power
6). USB firware upgrading (optional)
Specification:
1). HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
2). Support video color format: 24bit/deep color 30bit, 36bit, 48bit
3). Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
4). Max bandwidth: 340MHz
5). Max baud rate: 10.2Gbps
6). Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
7). Input/Output DDC signal: 5Volts p-p (TTL)
8). Input cable distance: ≤ 15m HDMI AWG26
9). Output cable distance: ≤ 25m AWG26 HDMI standard cable
10). Max working current: 1200mA
11). Power adapter format. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
12). Operating Temperature range: (-15 to +55° C)
13). Operating Humidity range: 5 to 90%RH (No Condensation)
Operating and Connecting:
1. Connect one cable from HDMI source devices into HDMI Splitter input.
2. Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3. Connect 5V power supply to the Mini HDMI 1x4 Splitter.
Our Advantages:
OEM and ODM services are welcome
No minimum order quantity requirements and supports mixed batch
Offers sample, please contact us for specific rules for sample application
12-month warranty and replacement of condemned goods
In addition, we are responsible for freight of condemned goods replacement
Can gives customer's maximum discount based on customer's order
Fully service sale and personal follow-up
Reply any of customer's inquiries in 24 hours
Founded 2001, Full Strike Ltd. (Shenzhen Office) is a professional OEM manufacturer of electronic components from Taiwan area.
In China, we have our own facilities located in Hangzhou and Ningbo of Zhejiang Province. We are also proud of having a strong and solid R&D team as well as sales, QC and production staff members in this field with experience for more than a decade to support our customers globally.
Our OEG components and products are distributed to customers worldwide with our "3 Best Policy": Best price, best quality and best service.
