Product Specifications
| Prod Model: |
WDYA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color & Page: |
Multi-Colour Printing Press |
| Structure: |
Rotary Printing Press |
| Style: |
Intaglio Printing Press |
Product Description

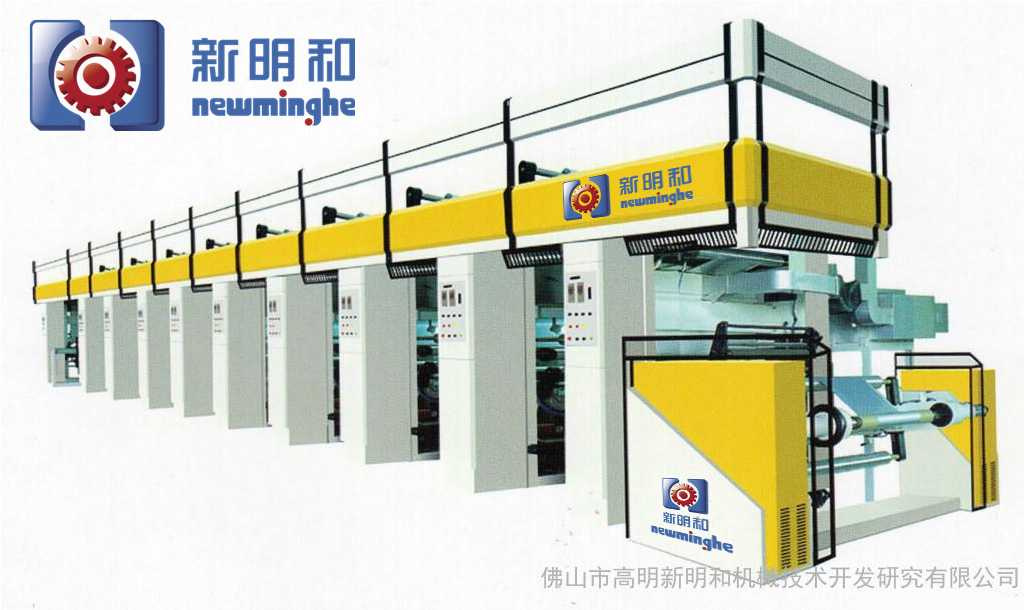

INTRODUCTION: This machine is suitable for printing PVC/PE/EVA soft plastic film(table cloth)etc.
MAIN FEATURES
It is the most advanced mechanical design structure
Complete digital control distributed operation digital-control system
The seven motors are four segments of tension for joint control
It possesses heavy squeegee system with dual shaft and dual cylinder
Perfect nonstop auto-feeding device in high speed
All of core parts of apparatus are imported named brand products.
It is high stabilization with the features of rolling and unrolling
Without shaft feeding
Vertical printing with automatic pre-overprint function, transverse printing with fine-adjustment control system"
|
MAIN TECHNICAL PARAMENTS: |
|
Printing colour: |
2-10 colours |
|
Wheel Width |
2200mm |
|
Maximum Printing width |
2000mm |
|
Diameter of Printing Cylinder |
φ125-480mm |
|
Max. Diameter of Unwind/Rewind |
φ800mm |
|
Printable Material |
BOPP/CPP/PET/PVC/PE/PVDC/NYYLON/EVA/Paper/Aluminum foil etc. |
|
Production Speed: |
10-80m/min(Frequency adjusted) |
|
Machine speed |
10-100m/min |
|
Roller Install Method: |
with shaft/Shaft-less pneumatic cone(optional) |
|
Accuracy of computer Registration |
≤± 0.2mm |
|
Tension Controlrange: |
3-60kg(full-range width) |
|
Machine's Dimension |
16200mm(L)×4500mm(W)×3600mm(H) |
|
Total power: |
53Kw(Hot coal oil heating)/195kw(ELECTRIC HEATING) |
|
Max. pressing pressure |
1700Kg |
|
weight |
about 40T |
NEW MINGHE MECHANICS REASEARCH & DEVELOPMENT Co., Ltd (NMHM) is a specialized supplier of Rotogravure Printing Machinery, Wallpaper Machinery, PU/PVC Leather Processing Machinery, Multilayer Laminating Machinery (For Packaging) and Coating machinery etc. Having integrated product researching, developing, producing and exporting over 30 year's experience, we are able to satisfy customers' changing needs effectively. In recent years, NMHM company has invest great deal of manpower, material resources to import many digital control machines for machining centre from Switzerland, United States, Japans, Taiwanese etc. We have a factory area of over 80, 000 square meters which is divided into material-mixing workshop, machine-processing workshop, metal riveting workshop, trial workshop, composing and adjusting workshop, electrical assembly workshop and showroom of sample machines. Moreover we have well-equipped production facilities and testing measures, stable quality and a perfect system for quality guarantee with a group of professional skilful technicians, which can guarantee completed technical supporting and after-sales services for our customers With relying on our perfect after-sales service, advanced production equipment, outstanding design creative idea, perfect quality guarantee and the reasonable price, our company will initiate great future with our customers hand in hand.
