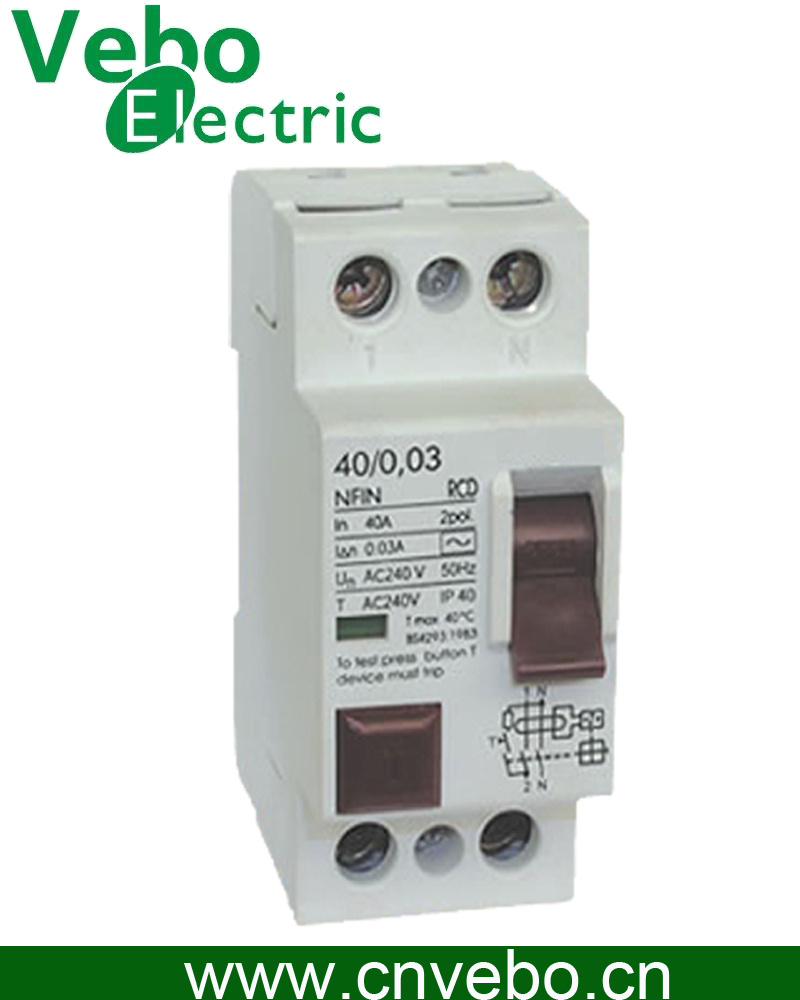

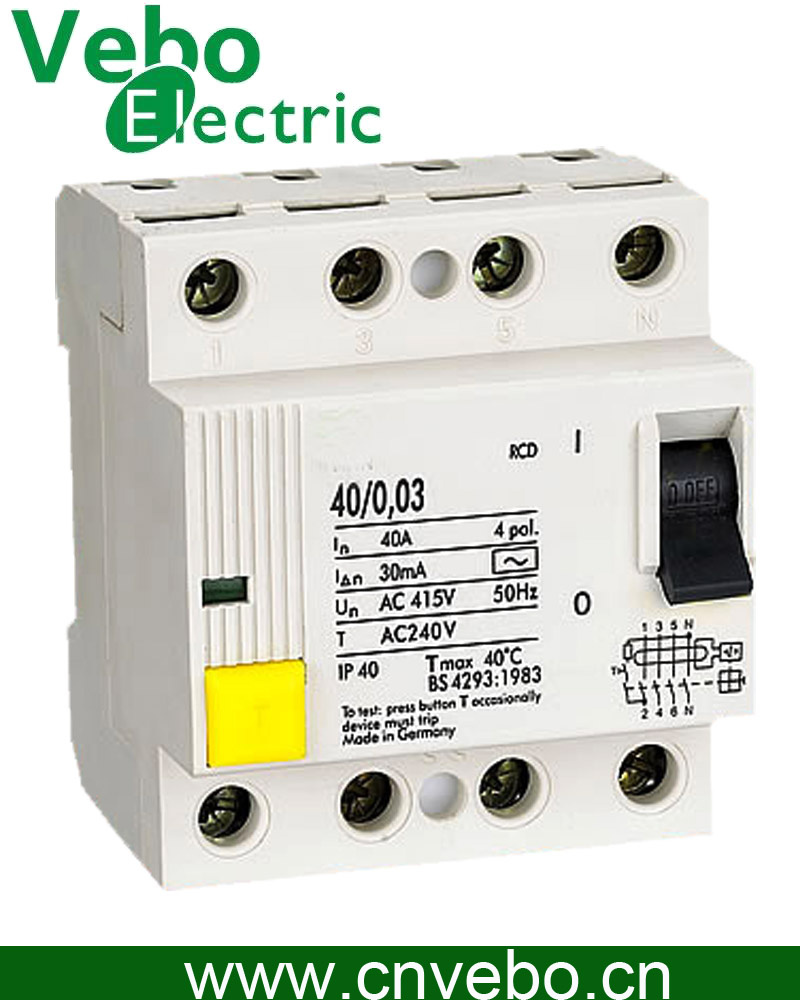

Nfin 4p/E, RCD, ELCB, MCB, RCCB, Residual Current Circuit Breaker
| Price: |
US $ 5.74-5.84/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
NFIN 4P RCD, Electronic Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Nfin RCD |
| Function: |
Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Device |
| Poles Number: |
Residual Current Device |
Product Description
NFIN Product DetailsBasic Info. Model NO.:NFIN 4P RCD, Electronic TypeArc-extinguishing Medium:AirStructure:RCD Type:Circuit BreakerBreaking Capacity:Low Voltage Circuit BreakersPoles Number:2p, 4p Certification:ISO9001-2000, CE, CB, CCCOperation:Manual TypeInstallation:FixedSpeed:Normal Type Circuit BreakerRated Voltage(V):230/400V:Rated Current (a):6, 10, 16, 20, 25, 32, 40Export Markets:GlobalAdditional Info.Trademark:VIBBA or OEM Packing:Standard Carton, or According to Your RequestStandard:CEOrigin:Zhejiang China (Mainland)HS Code:853620000Production Capacity:12000 Poles Per Day Product Description APPLICATION NFIN Residual Current Devices for earth leakage detection. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008. It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. NFIN RCD is mainly suitable for using in varieties of plants, enterprise, buildings, constructions, commerce, guesthouses and families. It can be used in circuits up to single-phase 240V; Three phase 415V, 50 or 60Hz.
|
PARAMETER |
RATING |
|
Type |
Electro-magnetic, Electronic |
|
Number of poles |
2P 4P |
|
Rated making and breaking capacity |
630A |
|
Rated Current(In) |
6, 10, 16, 25, 32, 40, 50, 63A |
|
Rated Voltage(Un) |
AC 2P: 230/240V 4P: 400/415V |
|
Rated residual operating current( In) |
30 100 300 500mA |
|
Rated residual non-operation Current( Ino) |
0.5In |
|
Residual operating current scope |
0.5In~In |
|
Residual current breaking time |
≤ 0.3s |
|
Residual current trip characteristics |
A, AC |
|
Ultimate short-circuit breaking capacity (Inc) |
4.5KA 6KA |
|
Endurance |
≥ 4000 |
|
Connection Capacity |
≤ 25mm 2 |
|
Connection terminal torque (Max. ) |
2.0Nm |
|
Degree of protection |
IP20 |
|
Standard |
IEC/EN61008 |
You are warmly welcome into Yueqing Vebo International Co., Ltd.
Your presence is honoured & your any comments/enquiries/suggestions would be appreciated. Established in 2011, We are one younger company with new management and thinking. We are not a big company and never exaggerate, but we have enough conditions to do your works as well as you hope.
1. )never change the raw material or main parts once we agreed,
2. )full order 100% tested exactly according to standard,
3. )finish your order within the lead time,
4. )no any mistake happened on printing, packing, boxes, labels and cartons,
5. )we have regular skilled workers and can finish large quantity order easily.
6. )English communications is available in twenty-four hours.
We heartily hope to establish good relations with you in the coming days!
