Product Specifications

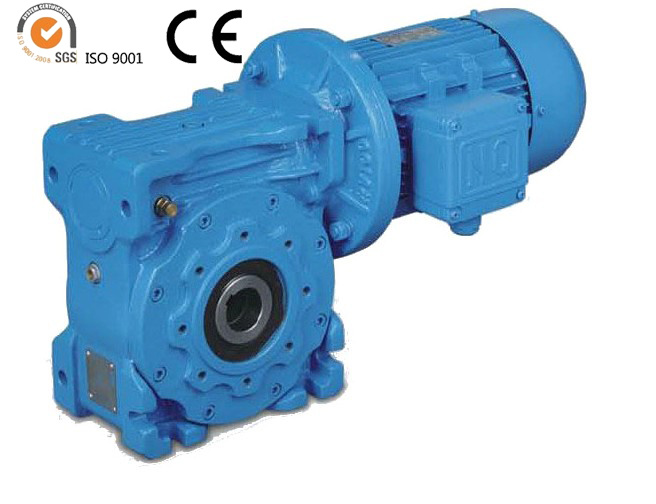

| Prod Model: |
Rv100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Worm and Wormwheel |
| Manufacturing Method: |
Sintered Gear |
| Toothed Portion Shape: |
Spur Gear |
Product Description
Technical data:
1. Power: 0.12-7.5 KW
2. Ratio: 6-80
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 49-9100N. M
5. Transmission stage: 2 stage, 3 stage
6. Mounting position: Vertical, horizontal
7. Brand name: BONENG
Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 20-25 days
4. Payment terms: FOB, CIF, DDP
5. Payment method: T/T, 30% in advance, 70% before delivery
6. Shipping port: Shanghai
Material:
Housing: Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo
Warranty: 18 months
Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions
|
R100 |
7,10,15,20,30,45,60 |
315-555 |
5.8-57 |
|
R125 |
7,10,15,20,30,45,60 |
650-835 |
7.8-57 |
|
R160 |
7,10,15,20,30,45,60 |
1450-1600 |
5.3-18.5 |
|
R200 |
7,10,15,20,30,45,60 |
2500-3050 |
13.3-31.5 |
|
R250 |
7,10,15,20,30,45,60 |
3950-5050 |
22.7-48.7 |
