Product Specifications
Prod Model: |
Energy Saving Star ES33 10-80Kva |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Phase: |
Three Phase |
Type: |
On-line |
Protection: |
Short Circuit |
Product Description
Product Description

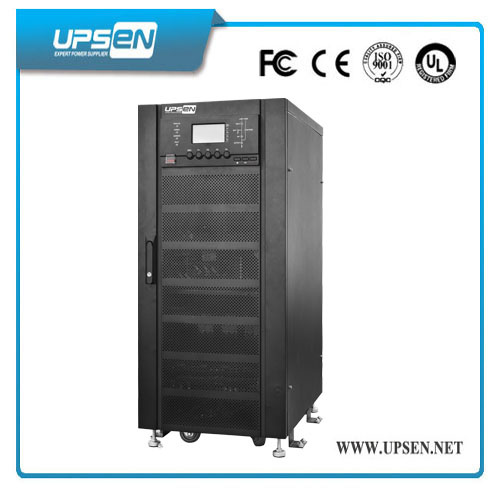

No Break UPS with Long Backup time and Wide input voltage
1:UPS Power with Complete digital control technology
2:UPS with 3 phase 190/208/220vac Input/output
3:UPS with Excellent electrical properties
4:UPS with history events record function for UPS maintenance
3 Phase UPS Perfect Applications
Internet Servor ,Internet Data Center), Medium-scale network system / computing center, bank
and securities, business server group, Medium-scale office automation, precision equipment,etc.
3 Phase UPS Features
Output PF0.9
3 Phase Input/Output for both 190/208/220Vac and 380/400/415Vac
Complete digital control technology
Excellent electrical properties
High input power factor 0.99, green and energy-saving
Dual AC input source supportable
Strong environmental adaptability
Comprehensive protection measures
Similar modular design
Intelligent battery management (ABM)
Model | ES3310 | ES3320 | ES3330 | ES3340 | ES3360 | ES3380 |
Capacity/Rating Power | 10KVA/ 9KW | 20KVA/ 18KW | 30KVA/ 27KW | 40KVA/ 36KW | 60KVA/ 54KW | 80KVA/ 72KW |
AC Input | Rated voltage | 190/208/220Vac Or 380/400/415Vac (Line-Line) | 380/400/415Vac (Line-Line) |
Input connection | Three phase four wires |
Power factor | Above 0.99 |
THDI | Less 5% |
Voltage range | 150-270Vac or 280-480Vac(Line voltage) |
Frequency | 40-70Hz |
Bypass | 150-270Vac or 280-480Vac(Line-Line)+/- 15% |
Output | voltage precision | ±0.5% |
Dynamical | Less 5% ( 0 ~ 100% load step) |
voltage transient |
THDU | THD less 3% (linear load), 5%(non-linear load) |
Power factor | 0.9 (lag) |
Frequency tracking range | 50/60Hz±3Hz |
Frequency precision | ±0.05%(Battery mode) , ±3hz(Line mode) |
OUTPUT | phase displacement | 120±0.5°(Balance or imbalance load ) |
Frequency tracking rate | Less 1Hz/s |
Overload capability | 105% long time operation |
125%,transfer to bypass after 10 minutes |
Above 150%, transfer to bypass after 1s |
Bypass | Above 180%, long time operation |
overload | Above 180%, last for 1s |
Transfer time | 0ms |
System |
System efficiency | Above 92%;98%(ECO) mode |
Display | Touch screen LCD+LED |
EMC | IEC62040-2 |
IEC61000-4-2 (ESD) |
IEC61000-4-3 (RS) |
IEC6100-4-4 (EFT) |
IEC6100-4-5 (Surge) |
Noise (1m) | Less 60dB |
Insulating resistance | Above 2M (500VDC) |
Insulating intensity | (input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
Surge protection | Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
IP class | IP30 |
Battery configuration |
Installation(DC) | 384/432/480Vdc adjustable |
Connection | Bottom cable connection in front |
Charger | 20% Power capacity(Adjustable) |
Dimension (W×D×H)mm | Long-run model | 500×717×798 | 720×900×1450 |
Inbuilt batt. | 500×717×1150 | 500×717×1550 |
Weight (Kg) | Long-run model | 40 | 65 | 95 | 100 | 240 | 260 |
Inbuilt batt. | 125 | 175 | 255 | 295 |
32/36/40pcs*7AH/9AH or 72pcs*7AH/9AH |
