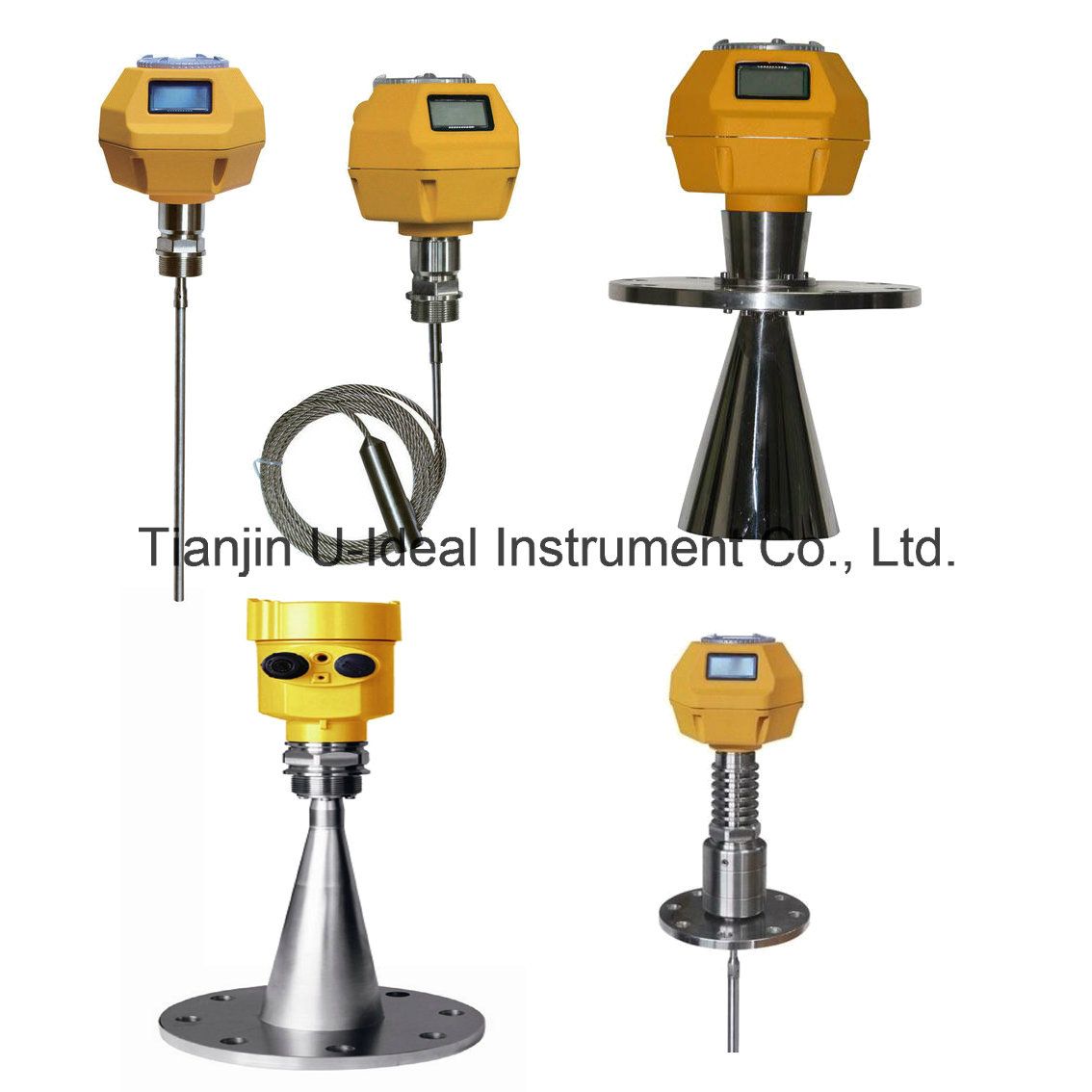

Non-Contact High Frequency Radar Level Meter with Lower Cost

Name: Non-Contact High Frequency Radar Level Meter with Lower Cost
Brand: china-manufacturer-directory.com
SKU: 699321482
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 570/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	UIRD-601-602-603-604-605-606-607
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Cement, Solid, Liquid
Signal:	RS485, Switch, 4~20mA, Indicator
Seal:	IP68
Temperature:	High Temperature Upto 450 C
Range:	>0-30m
Kind:	Radar
Structure:	All in One
Principle:	Radar Level Meter

Product Description

Non-Contact Intelligent 26g High Frequency Radar Level Meter for Liquid and solid (Ex Approved) made in China with lower cost
Design and Manufacturing according to UL, RoHS Standard

Intelligent Radar Lever Meter
Level measurement in various vessels, tanks, material under the most difficult process conditions, being unaffected by the physical character of the subject, using two wires technique, being applied to explosion-proof situation, adopting non-contact and sequential pulse measuring principle, with measuring range up to 70m.

Application:
RD50X series of non-contact radar level meter is a continuous measurement of liquids, slurry and granule materials, it is suitable for occasions of great temperature and pressure changes, inert gases and gas volatilizations.
·The method of microwave impulse measurement secures normal operation within the range of industrial frequency wave bands. The wave beam energy is relatively low, so it is no harm to human and environment and can be installed inside of all kinds of metal, non-metal containers or pipes.

Model introduction

RD501 radar level meter

Applicable medium: liquid, light corrosive liquid

Application: sewage water,
small Volatile soda acid liquid level measurement
Slurry level measuring

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 20m
Antenna:             bar antenna (PP/PTFE material)
frequency rate: 6 GHz
Process temperature: (-40 ~ 130) ºC
Accuracy                   : + / - 10 mm
Process pressure     : (-0.1 ~ 0.3) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: flange (optional)/screw

RD502 radar level meter

Applicable medium: strong corrosive liquid

Application: pressurized liquid level measuring
Sewage water level,
strong Volatile soda acid liquid level measurement
Slurry level measuring

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 20m
Antenna:             bar antenna (PTFE)
frequency rate: 6 GHz
Process temperature: (-40 ~ 180) ºC
Accuracy                   : + / - 10 mm
Process pressure     : (-0.1 ~ 4) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: lap-joint loose flange (optional)

RD503 radar level meter

Applicable medium: liquid, especially pressurized and volatile liquid

Application: crude oil, light oil level measurement;
Aluminum hydroxide level measurement;
Raw coal, limestone position measurement;
Coke material level measurement;

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 35 m
Antenna:             horn antenna
frequency rate: 6 GHz
Process temperature: (40 ~ 250) ºC
Accuracy                   : + / - 10 mm
Process pressure     : (-0.1 ~ 4) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: flange (optional)

RD504 radar level meter

Applicable medium: solid particles or lump, can't use for dust material

Application: lime lump level
Raw coal block material

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 35 m
Antenna:             horn antenna
frequency rate: 6 GHz
Process temperature: (40 ~ 250) ºC
Accuracy                   : + / - 20 mm
Process pressure     : (-0.1 ~ 0.1) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: universal flange (optional)

RD505 radar level meter

Applicable medium: liquid, especially for low dielectric constant,
Low viscosity and liquid with agitator

Application: 20% Flour paste level measure
Liquid with agitator

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 30 m
Antenna:             horn antenna
frequency rate: 6 GHz
Process temperature: (40 ~ 250) ºC
Accuracy                   : + / - 10 mm
Process pressure     : (-0.1 ~ 4) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: flange (optional)

RD506 radar level meter

Applicable medium: solid, special for high temperature medium

Application: blast furnace level measuring

Explosion-proof: Exia IIC T6 / Exd ia IIC T6 Ga
Measuring range: 15 m
Antenna:             horn antenna
frequency rate: 6 GHz
Process temperature: (40 ~ 400) ºC
Accuracy                   : + / - 20 mm
Process pressure     : (-0.1 ~ 0.1) MPa
Signal output: (4 ~ 20) mA/HART
Display: 4 digit LCD programmable
Power: 2-wire (DC24V); 4-wire (DC24V/AC220V)
Repeatability: ± 1mm
Shell: Aluminum
Process connection: flange (optional)

Technical parameters :

Application	suitable for powdered materials, solid particles, the massive material measurement
Measuring range	70 meters
process connection	universal flange
Medium temperature	- 40-450 °C
Process pressure	40MPa
Accuracy	< 0.1%
Frequency range	6.8 GHz
signal output	4... 20 mA ,HART(two line)
Explosion-proof/protection grade	Exia IIC T6 / IP67

radar Level meter, level transmitter, level sensor, level gauge, level gage, level indicators, level switches, level controller for high temperature, high pressure solid or fluid level measuring.

Our other related products: level gauges, flow meters, pressure transmitters, indicators, level meter, industrial system.

Welcome to contact Tianjin U-ideal Instrument if have enquiry.
