Nonflammable Carbon Film Fixed 100r 300k 500k Ohm Resistor
| Price: |
US $ 0.003-1/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
LCR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nonflammable Carbon Film Fixed 100r 300k: |
Yellow |
| Resistance: |
Fixed Resistor |
| Installation: |
DIP Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Throught Hole |
| Brand: |
Pak Heng |
Product Description

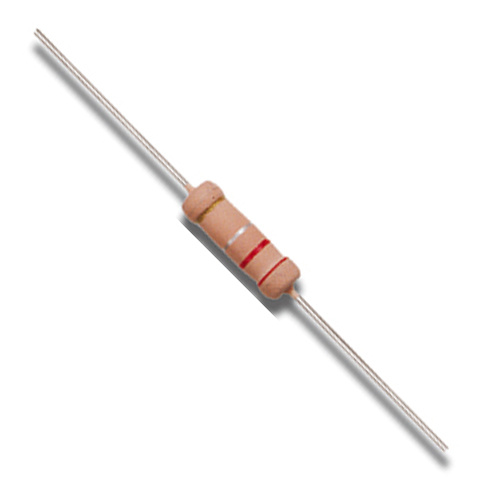

Nonflammable Carbon film fixed 100R 300k 500k ohm resistor

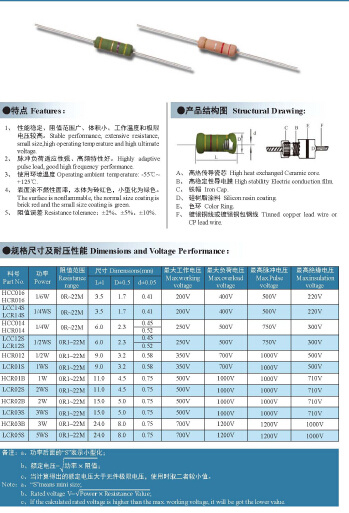

Features:
1, Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage.
2, Highly adaptive pulse load, good high frequency performance
3, Operating ambient temperature: -55`C to +125`C.
4, The surface is nonflammable, the normal size coating is brick red and the small size coating is green.
5, Resistance tolerance: ± 2%, ± 5%, ± 10%.
Power: 1/8W, 1/6W, 1/4WS, 1/4W, 1/2WS, 1/2W, 1WS, 1W, 2WS, 2W, 3WS, 3W, 5WS
Tolerance: ± 2%, ± 5%, ± 10%.
Range: 0R1-22M
