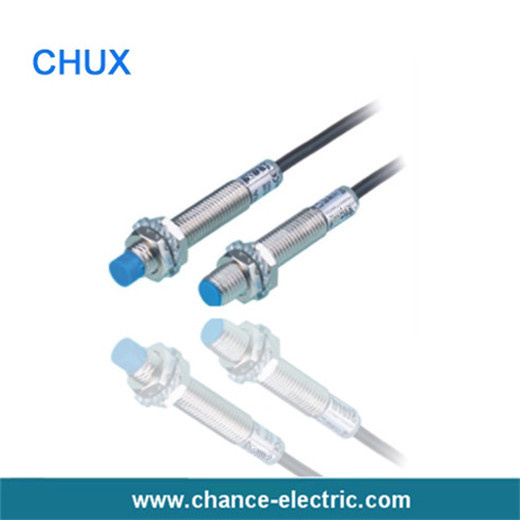

Normally close inductive sensors (IM8-1-DNB)
Model instruction
For examples:
I M 1 2 - 2 - D N A -L
I M: Inductive cylinder type IMF: Inductive square type CM: Capacitive type HM: Hall sensor
XM: Linear sensor
12: Outward code
2: Detect distance: 2mm 4mm 5mm...
D: DC three wires AC: AC two wires DL: AC three wires
N: NPN output
A: NO B: NC C: NO+NC
L: Addition function L: Long sensing distance C: With connector
Main features:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Parameter Data
| Model | IM8-1-DNB |
| Sensing distance | 1mm |
| Supply voltage | 6-36VDC |
| Output | NPN NC |
| Load current | <200mA |
| Voltage drop | <2.5V |
| Current consumption | <15mA |
| Repeated accuracy | <3% |
| Frequency | 200Hz |
| Output display | LED lighting |
| Polarity protection | Yes |
| Short-circuit protection | Yes |
| Ambient temperature | -25~+75C |
| Protection degree | IP67 |
| Housing material | copper alloy |
| Connection | 2m PVC Cable |
| Certification | CE, |
| |
