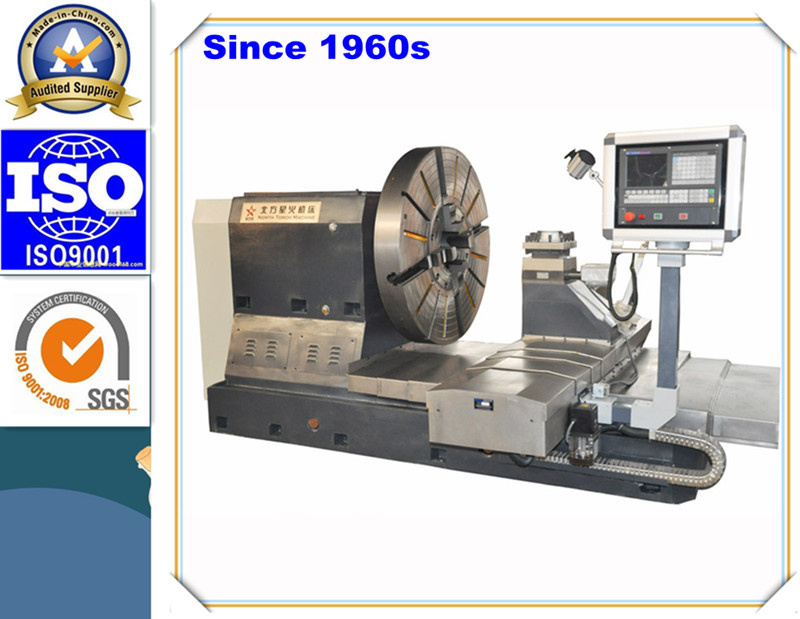

China Professional Floor Type Horizontal CNC Lathe Machine Tool Manufacturer
For Turning Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,Shaft,etc
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
Name | CX6010 | CX6012 | CX6016 | CX6020 | CX6025 | CX6025 | CX6030 | CX6036 |
| Item | Unit |
| Max. Swing Diameter | mm | 1000 | 1200 | 1600 | 2000 | 2500 | 2500 | 3000 | 3600 |
| Max. Weight of work-piece | T | 1 | 1 | 2 | 2 | 3 | 2 | 5 | 5 |
| Max. Length of work-piece | mm | 400 | 400 | 400 | 600 | 600 | 600 | 600 | 500 |
| Range of Spindle Speed | r/min | 16-128 | 16-128 | 16-128 | 12-94 | 12-94 | 12-94 | 4-40 | 4-40 |
| Chuck Diameter | mm | 800 | 1000 | 1400 | 1600 | 2000 | 2000 | 2500 | 3000 |
| Horizontal Stroke | mm | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Longitudinal Stroke | mm | 500 | 600 | 800 | 900 | 1250 | 900 | 1500 | 1800 |
| Main Motor Power | Kw | 7.5 | 7.5 | 11 | 15 | 15 | 15 | 22 | 30 |
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Qingdao North Torch Machine Co., Ltd was established in the 60s of last Century. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.
CNC Heavy-duty horizontal lathe, roll lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe and floor-type boring and milling machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.
The company has passed ISO9001 international quality management system certification, and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.
With the concept of "diversity and pursuit of excellence", we aim to offer superior products and service to our customers.
