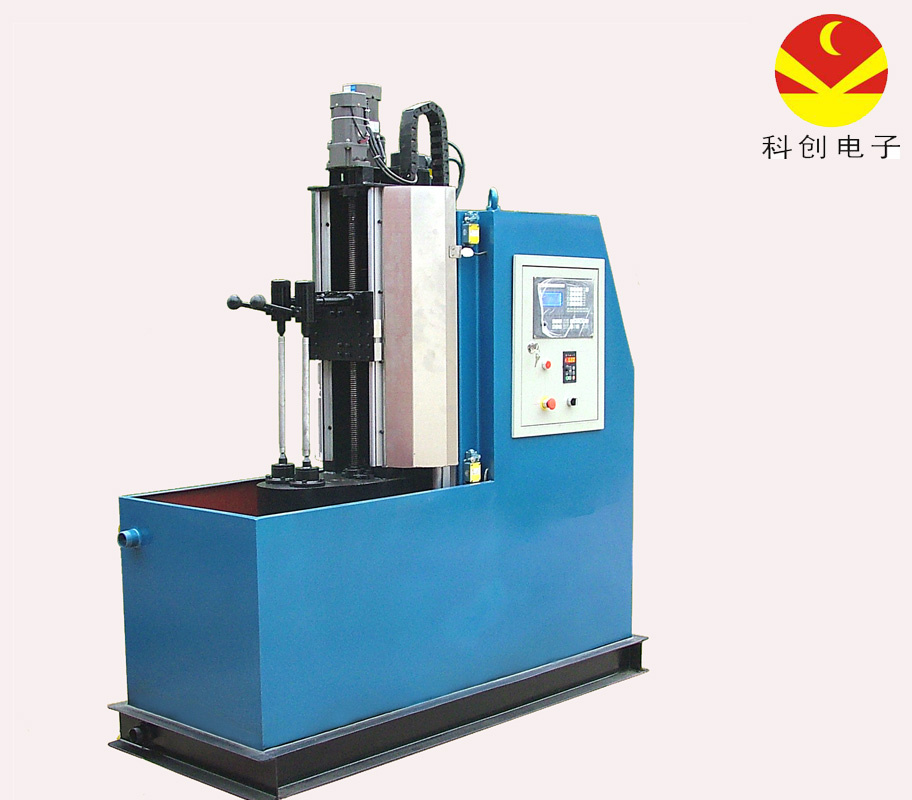

Numerical control hardening machine tools CJC-600 Technical parameter:
Number of work position: 1
Max. Length for machining workpiece: 600mm
Max. Hardening length: 600mm
The range of revolving speed: 60-650r/min
Max. Workpiece weight: 30kg
Hardening feed speed: 6-3000mm/min
Workpiece celerity: 6000mm/min
Max. Workpiece diameter: 350mm
Numerical control system control precision: 0.001mm
Operate way: Auto or manual
Setting accuracy: 0.03mm
Machine arrangment:
1. Ball bearing screw rod of numerical control cutting tool, the whole customize, quality good, precision high;
2. Lead rail abrasion proof, round tube coating with chrome, Long life, hard chrome on surface for prevent rusting;
3. Lifting Part balance weight by sprocket wheel and chain, counterweight is cast weight
4. Sealed water tank, don't need infrastructure project;
Rotate driving: Spindle transducer rotate infinitely variable control;
Total motor power: 2.0KW
Weight: Approximately 0.6ton
Dimension: 1100× 700× 1800
Hardening way: Continuous scan hardening; Timing hardening; Subsection scan hardening
Hardening speed adjust: Infinitely variable control
Rotational speed adjust: Infinitely variable control
Cooling way: Hydrojet
Application: Plate\gear\shaft
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
