Product Specifications
| Prod Model: |
Om200b-M3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flexible Handling: |
Small Resettin Error |
| Long Life-Time: |
Terminal Type |
| With Seal Form: |
Soft or Heavy Handling |
| For Move Photography CCTV Controlsystem: |
for Medical Imaging System |
| For Automative Control: |
for Video Editing Equipments |
| Task: |
Adjust |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Potentiometer Resistance |
Product Description

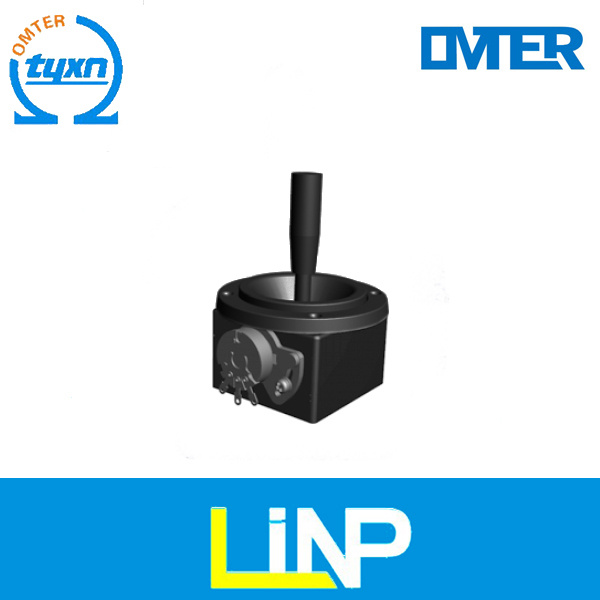

2-Axis Potentiometer Joystick
Resistance: 5k Ohm, 10k Ohm
Lever return: Auto Spring return
Description
Potentiometer Joystick with 2-Axis
Main performance
Model
OM200A
OM200B
OM201A
OM201B
OM203
Resistance
5KΩ , 10KΩ
Resistance Tolerance± 5%
Independent Linearity Tolerance
± 1%
Resolution
Infinity
Temperature Coefficient
± 400 ppm/degree
Output smooth
MAX 0.5%
X and Y Axis Rotational Angle
± 25° -30°
Lever return
With Auto spring return
Insulation Resistance
50 MΩ @500 VDC, 60 sec.
Operating Torque
X and Y Axis 440gf
Reposition Error Rate
± 1%
Life expectancy
500, 000times
Operating temperature-10degree-80degree
Instruction for choosing model:
M1: The total resistance value is 5K, but the effect adjustable resistance range is from 1.8K to 2.5K, then from 2.5k to 3.2K.
M2: The total resistance value is 5K, but the adjustable range is from 0K to 2.5K, then from 2.5K to 5K.
M3: The total resistance value is 10K, But the adjustable range is from 3.5K to 5k, then from 5K to 6.5K.
M4: The total resistance value is 10K, But the adjustable range is from 0K to 5K, then from 5K to 10K.
|
