Omron Automation and Safety E2e-Cr8c1
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Packaging & Delivery
| Packaging Details: | New Original package for Omron E2E-CR8C1 5M |
| Delivery Detail: | Within one workday for Omron E2E-CR8C1 5M |

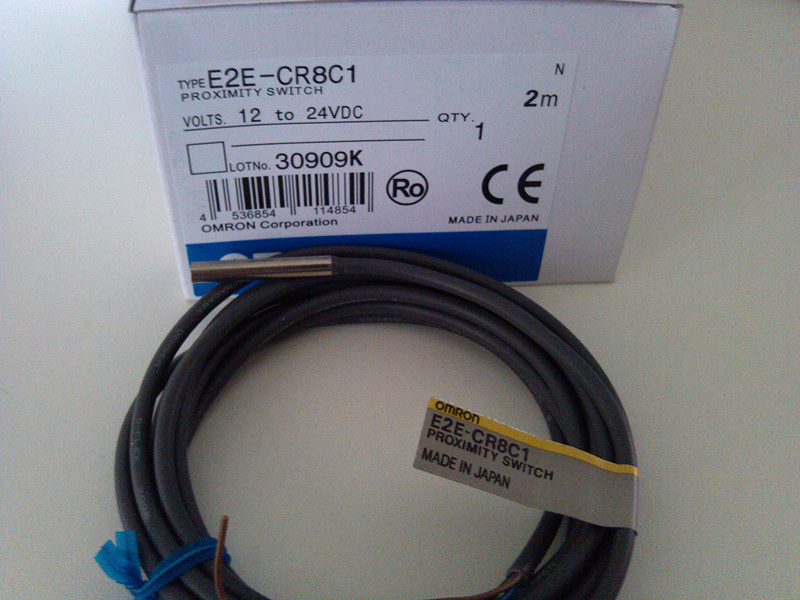

Omron Automation and Safety E2E-CR8C1
Short Description for Omron Standard Proximity Sensor
| pressure sensor |
| weight sensor |
| position sensor |
| light sensor |
| gas sensor |
| sensor switch |
| electrical switch |
| switch power supply |
Datasheet Preview of Omron Automation and Safety E2E-CR8C1
| Cylinder type sensing head size | dia. 4 |
|---|
| Type | Shielded |
|---|
| Sensing method | Inductive type |
|---|
| Sensing distance | 0.8mm -15% to +15% |
|---|
| Setting distance | 0 to 0.5 mm |
|---|
| Differential distance | 15% Max. of sensing distance |
|---|
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
|---|
| Standard sensing object | Iron 5*5*1mm |
|---|
| Response frequency | DC: 3 kHz (average) |
|---|
| Power supply voltage | 12 to 24 VDC ripple(p-p) :10% Max. |
|---|
| Operating voltage range | 10 to 30 VDC |
|---|
| Current consumption | 17 mA Max. |
|---|
| Control output (Output type) | NPN open collector output |
|---|
| Control outpu (Switching capacity) | 0 to 100mA (30VDC Max.) |
|---|
| Indicator | Operation indicator(red) |
|---|
| Operation mode | NO |
|---|
| Protective circuit | Surge suppressor
Power supply reverse polarity protection |
|---|
| Ambient temperature | Operating: -25 to 70 ºC
Storage: -25 to 70ºC
(with no icing or condensation) |
|---|
| Ambient humidity | Operating: 35 to 95 %RH
Storage: 35 to 95 %RH
(with no condensation) |
|---|
| Temperature influence | +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL) |
|---|
| Voltage influence | +/- 2.5% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage) |
|---|
| Insulation resistance | 50 M OHM Min. at 500VDC between charged parts and the case |
|---|
| Dielectric strength | 500 VAC 50/60 Hz for 1 minute between charged parts and the case |
|---|
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
|---|
| Shock resistance | 500m/s2 for 10 times each in X, Y, and Z directions |
|---|
| Degree of protection | IEC60529: IP67
Company standard: Oil-proof |
|---|
| Applicable standard (EC Directive (Low Voltage Directive) ) | EN60947-1
EN60947-5-2 |
|---|
| Applicable standard (EC Directive (EMC)) | EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped |
|---|
| Applicable standard (CCC mark) | Not equipped |
|---|
| Connection method | Pre-wired models (Cable length: 5 m) |
|---|
| Material (case) | Stainless steel (SUS303) |
|---|
| Material (sensing surface) | Heat-resistant ABS resin |
|---|
| Accessories | Instruction manual |
|---|
| Prod Model: |
E2E-CR8C1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| -: |
- |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Application: |
Basement |
| Certification: |
CE |
Yueqiang Tianqiang Electric Co., Ltd was founded in the year of 2013, located in Yueqiang which has a favorable transportation, close to Wenzhou Airport and Ningbo Port.
Our Goal is to ensure our products will be widely accpeted in the international market,
Our company supplys different kinds of products, Power Trasnsformer, Analog meter, UPS, Indicator, AC contactor, etc with High quality at fair price. We' re pleased to have this opportunity to work with you and we will come back to you as soon as we have inquiry from you. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers needs" for the management and "zero defect, zero complaints" as the quality objective. We are looking forward to doing business together for our future.
