Product Specifications
| Prod Model: |

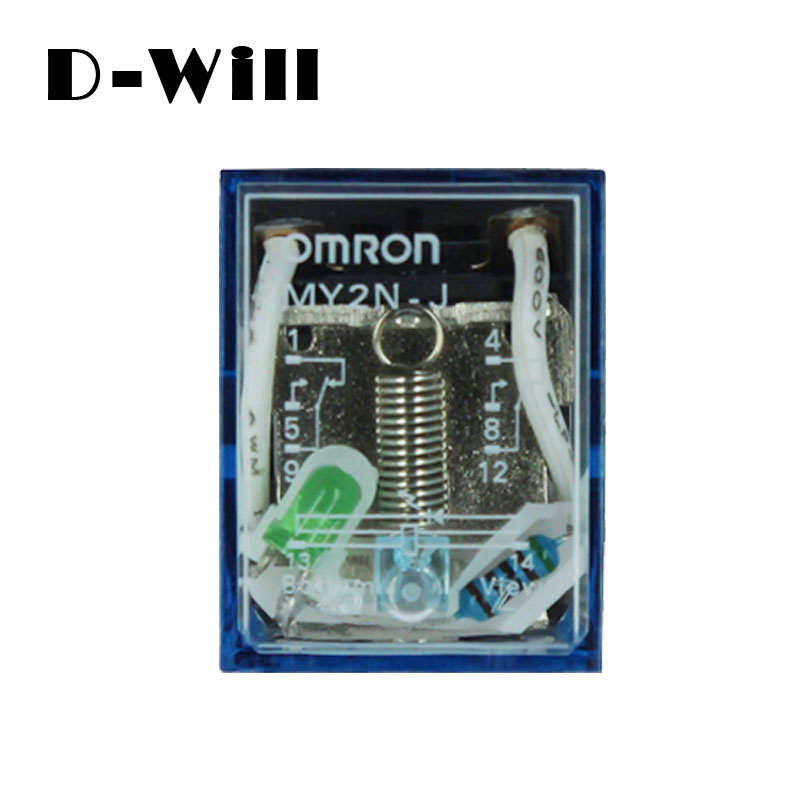

MY2N-J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Description
Features:
7A switching capability (2Z/2C type)
8PIN configurations
Various terminals available.
Various socket available, and dust cover of limpidity...
Silver alloy contact available
Exterior size: 27.5*21*35.5mm
Specification:
Contact Form: 2Z (2C)
Initial Contact Resistance: 50Ω M(1A 6VDC)
Contact Material: Silver alloy AgCdO
Contact Rating(Res. Load): 5A 250VAC/30VDC
Coil Voltage: 5VDC/6VDC/12VDC/24VDC/48VDC/110VDC
6VAC/12VAC/24VAC/48VAC/120VAC/220VAC/240CAC
Max. Switching Voltage: 250VAC/30VDC
Max. Switching Current: 7A
Max. Switching Power: 210W 1750VA
Mechanical life: 1× 107 times
Electrical life: 1× 105 times
Initial Insulation Resistance: 1000m, 500VDC
Dielectric Strength: Between coil contacts 1500VAC 1min.
Between open contacts 1000VAC 1min.
Electric contact group 1500VAC 1min.
Operate Time (at nomi. Volt): 25ms
Release Time (at nomi. Volt): 25ms
Impact Resistance: Stability 100m/s2; Intensity 1000m/s2
Vibration Resistance: 1mm 50~55Hz
Humidity: 98%RH% +40%
Temperature: -55º ~ +70º
Termination: PCB and Plug type leading-out terminal
Unit Weight: 35g
Construction: Dust cover
Coil power: DC: 0.9W AC: 1.2VA
Nominal Voltage: 5VDC/6VDC/12VDC/24VDC/48VDC/110VDC
6VAC/12VAC/24VAC/48VAC/120VAC/220VAC/240CAC
Action Voltage: 4.0VDC/4.8VDC/9.6VDC/19.2VDC/38.4VDC/88VDC
4.8VAC/9.6VAC/19.2VAC/38.4VAC/96VAC/176VAC
Drop-out Voltage: 0.50VDC/0.60VDC/1.20VDC/4.80VDC/11.0VDC
1.80VAC/3.60VAC/7.20VAC/14.4VAC/36.0VAC/66.0VAC
