Product Specifications
| Prod Model: |
S11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Power |
| Frequency Characteristics: |
50/60Hz |
| Brand: |
Safelink |
Product Description

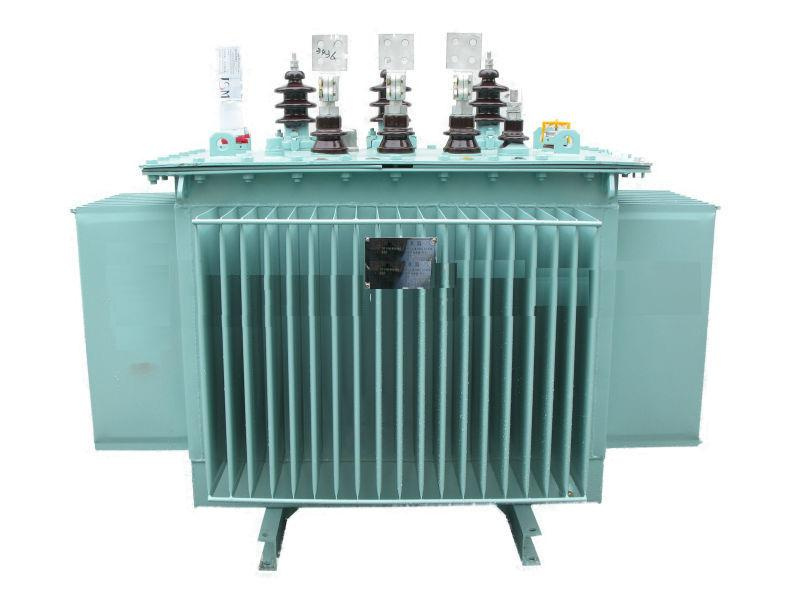

Power transformer three phase oil immsered electrical transformer rated voltage during 6-35kV, oil immersed transformer are most used in power plant,power grid transmission and distribution station,industry& commerce electrical substation as the electrical equipment of power transmission,
1,Two windings or three windings
2,On-load or no-load voltage tapping changer
3,Natural cooling or force air or oil cooling,
4,capacity range 10-5000kVA
Service condition
a) Suitable for indoor or outdoor application
b)Air temperature: Maximum temperature: +40ºC; Minimum temperature:-30ºC
c) Humidity: Monthly average humidity 95%; Daily average humidity 90% .
d) Altitude above sea level: Maximum installation altitude: 2000m.
e)Max wind speed:35M/s
f) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.
g) No frequent violent shake
Note: * Beyond those services condition should enquiry to manufacturer technical dept during order
Tests
1, Voltage ratio. Polarity and phase relationship test on each tapping
2, Resistance of all windings
3, No-load current and no-load losses measurement
4, Load losses measurement at rated current and frequency
5, Impedance voltage measurement
6, Induced over-voltage and separate source voltage withstand tests
7, Impulse voltage withstand test.
8, Noise level test
9, Oil leakage test
10, Overload test at 150% rated current for one hour after temperature rise test and hot resistance measurement of (HV - LV)
Founded in 2006, with a registered capital of 10 million USD, Wenzhou Allian Enjoys about 10 years experience in distribution transformer manufacture.
Allian is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to Shanghai/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.
Our main products include: Step voltage regulator up to 35kV, conventional and complete self-protection transformer, single phase pad mounted transformer, withstand high overload transformer, capacity-adjustable transformer, amorphous transformer, energy-saving transformer, etc green transformer. All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.
The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.
We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the Middle East.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Allian Company is dedicated to become the biggest name in the international business of transformers in China, and contributes its share to the transformation from the Made in China into the Invented in China.
