| Price: | US $ 300-1000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | P860 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measure Range: | 10~2000ppm, 0~2%, 0~21% O2 |
| Sampling Gas Flow: | 150~300ml/Min |
| Sensitive: | 0.01% O2 |
| Signal Outputs: | 4-20mA |
| Sensor Life: | 3 Years (in Normal Condition) |
| Warranty: | 12 Months Analyzer; 12 Months Sensor |
| Response Time: | 90% of Fs Reading in 20 Seconds |
| Sensor Principle: | Ion Current Oxygen Sensor |
| Appearance Dimension: | 160mm×80mm×176mm (W×h×d) |
| Opening Size: | 151mm×75mm |
| Type: | Electrochemical Gas Analyzer |

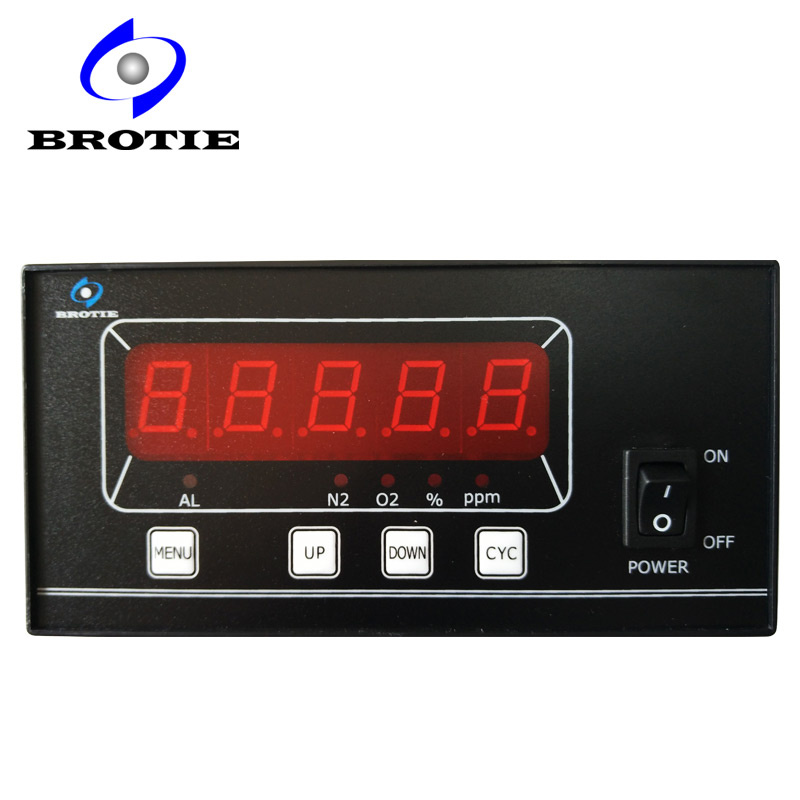

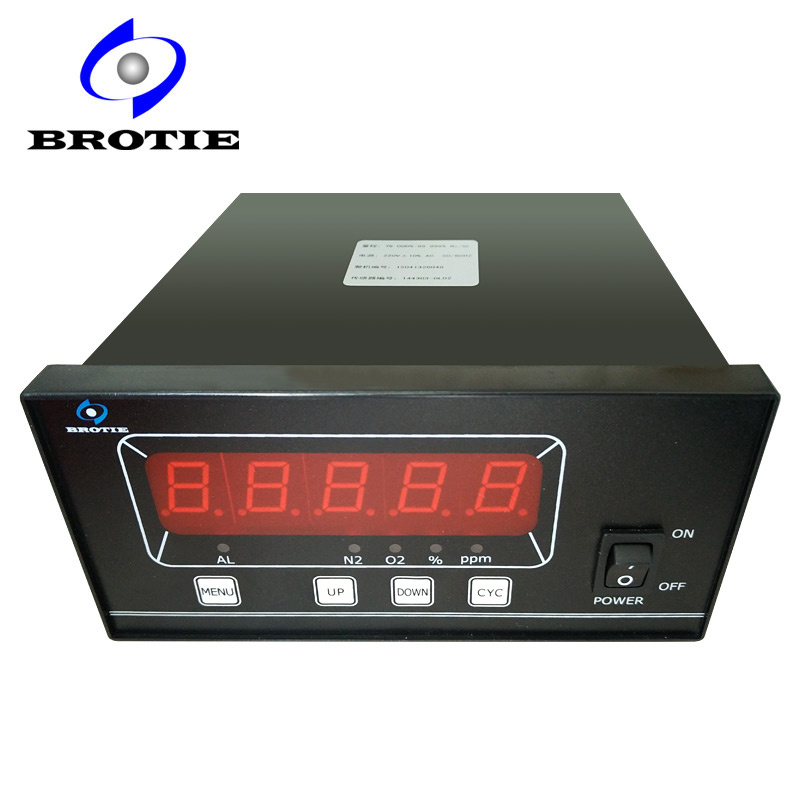

Brotie Online oxygen/nitrogen analyzer
Features
* New pattern long-life conversion ion current tester with fast response and high sensitivity
* N2 or O2 concentration display
* Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
* Setting alarm value freely
* Automatic temperature compensation, eliminating the impact of environmental temperature
* High stability, High precision, multiple application with pretty low price, for big quantity orders, special distributor price will be provided
Technical Specifications
Monitor: Five-digital dynamic LED monitor, visible display window: 90mm×25mm
Measure Range: 10~2000ppm, 0~2%, 0~21% O2
Sensor Principle: Ion current oxygen sensor
Measure Mode: Air inflowing or convection diffusing
Sample Gas Flow: 150~300ml/mim
Accuracy: ±5% in 10~2000ppm O2 range
±2% in 0~2%O2 range
±1% in 0~21%O2 range
Response Time: 90% of FS reading ≤20 seconds
Ambient Temp.: -10ºC~+50ºC
Ambient Humidity: <80%RH
Stability: <±1%.FS (168h)

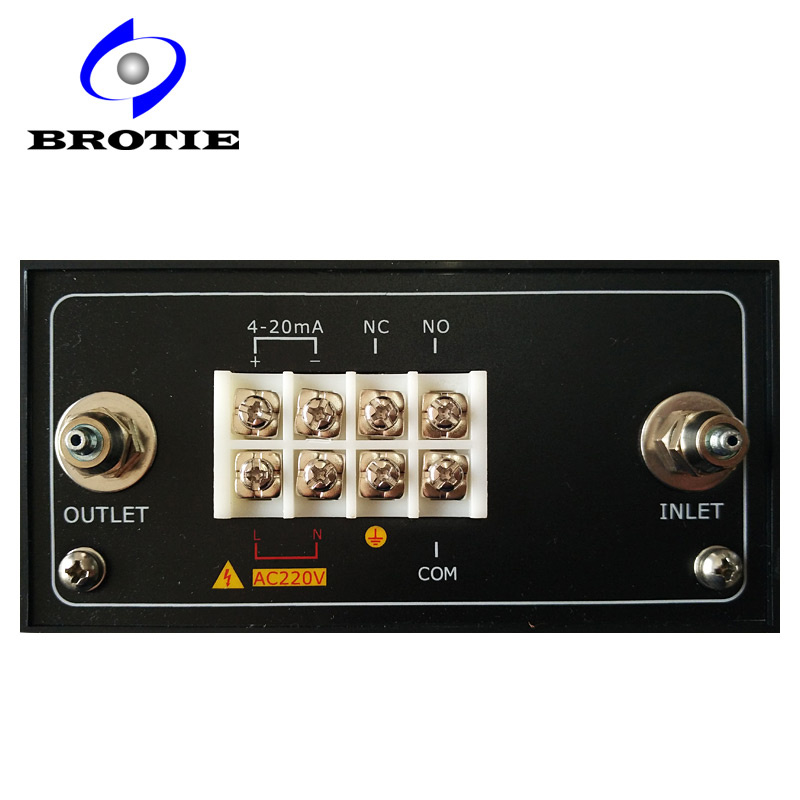

Signal Output: 4~20mA
Power Supply: 220±10% VAC, 50/60Hz, the power loss ≤6VA
Sensor Life: 20000 hours at 25ºCand 1 atm
Warranty: 12 months analyzer; 12 months sensor
Weight: 1kg
Appearance Dimension: 160mm×80mm×176mm (W×H×D)
Opening Size: 151mm×75mm
Model choice
Item | Model | Measure range |
1 | 3O | 21.0%~1000ppm O2 |
2 | 4O | 21.00%~100ppm O2 |
3 | 5O | 21.000%~10ppm O2 |
4 | 3N | 79.0%~99.9% N2 |
5 | 4N | 79.00%~99.99% N2 |
6 | 5N | 79.000%~99.999% N2 |
Notice: Some suppliers without honest showed the pictures of BROTIE products to customers by very low price but with cheap copy products providing. Please pay attention on the lable of the compressors with BROTIE brands to avoid the lost.
