Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 10/Piece |
Pay Type: | L/C,T/T,Paypal,Western Union |
Series | Style | Specification |
CCD Mould | Image sensor | 1/3" SONY HAD 2 CCD, 700TVL |
Lens | CS interface 12mm Lens | |
Min Illumination | 0.5LUX / F1.2 | |
Night version | IR LED | Dot Matrix IR LED, IR distance can be 50m, outdoor |
Video | Compression | H. 264 |
Resolution | D1(720*576) HalfD1(720*288) CIF(352*288) QCIF(176*144) | |
Frame | 1~30fps@D1(NTSC) 1~25fps@D1(PAL) | |
Audio | Audio | G. 711 |
Duplex audio | Support | |
MIC | Connect the voice pickup device | |
Software | WEB Browser | IE 6.0 or above |
Safety | password protection, two grade right | |
hardware | CPU | 32 Bit ARM926EJ-S RISC |
Operation system | Built-in Linux system | |
DDR | 256M | |
Flash | 32M | |
Web | Lan interface | 10/100MBaseT, RJ-45 |
Web protocol | TCP/IP, UDP, HTTP, FTP, UPnP, DDNS, PPPoE, DHCP, SMTP | |
Outside interface | GPIO interface | 1cha alarm input, 2ch alarm output |
RS-485 | Have RS-485 interface | |
Audio interface | 1 ch input 1 ch output | |
Video interface | 1 ch input 1 ch output | |
Power supply interface | Yes | |
Function | OSD | Support |
DDNS | support several DDNS server in China | |
User management | Administrator, common user, anonymous user(Max. viewer: 20) | |
Video management | brightness, contrast and saturation adjustable support several screen switch, single screen support 30 camera, | |
Bandwidth | suitable for different bandwidth by adjusting the resolution, the frame and the compression rate | |
SD card recording | Support(need open the cover) | |
Video keep out | Support | |
Motion detection | Can setup the motion detected area, validity time and sensitivity. Support 4 alarm ways: alarm hummer. Customer notification, recording and email notification. | |
General | Power | Input AC 100-240 V 50/60Hz Output: DC 12V/1.5A |
Temperature control | Built-in Temperature control device(built-in heater inside) | |
Working Environment | Temperature: -30° C- 50° C/ Humidity: 0% - 80%RHG | |
Packing side | 300mm(L) X90mm(W) X140mm(H) |
Prod Model: | IP-2318H |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Video Compression: | H.264/Mjpeg |
Mobile View, Motion Detection: | Support |
Onvif V1.0.2: | Support |
IR Distance: | 50m |

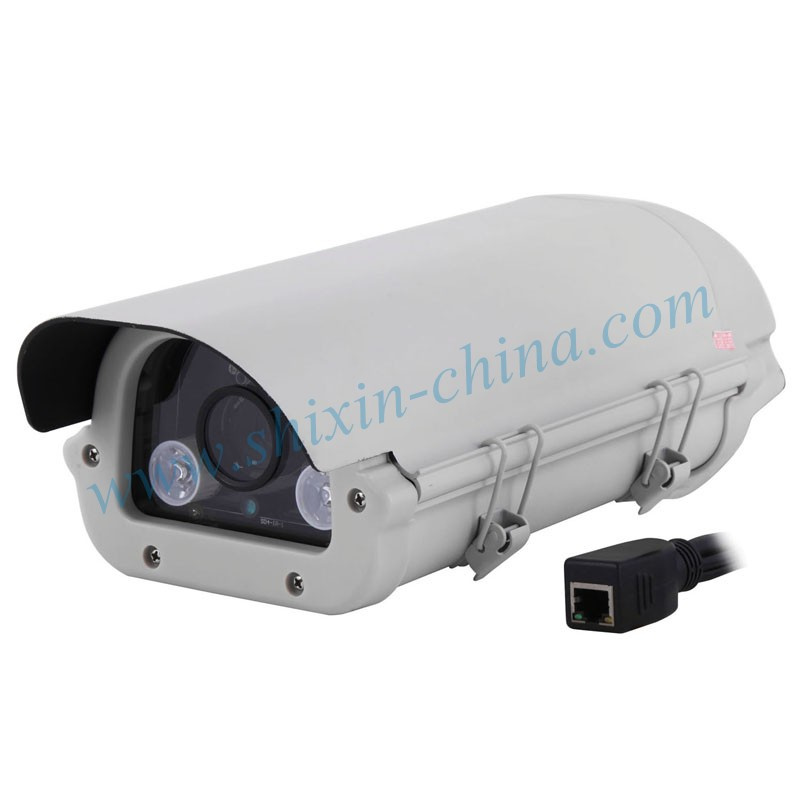

Type: | CCTV Camera |
Sensor: | CMOS |
Style: | Bullet Camera |
Feature: | Waterproof / Weatherproof |
Technology: | Infrared |
Kind: | Manual Focus Lens |
Horizontal Resolution: | 700tvl |
