Product Specifications
Prod Model: |
XKP-560 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Customized: |
Customized |
Weight: |
<50 tons |
Type: |
General Rubber Machinery |
Type Of General Rubber Machinery: |
Material Processing Machine |
Type Of Tire Machinery: |
Rubber Regeneration Machinery |
Power: |
10~100KW |
Using Life: |
≥15 Years |
Name: |
Open Rubber Cracker Mill |
Working Diameter Of Roller: |
560mm Front / 510mm Rear |
Working Length Of Roller: |
800mm |
Product Description

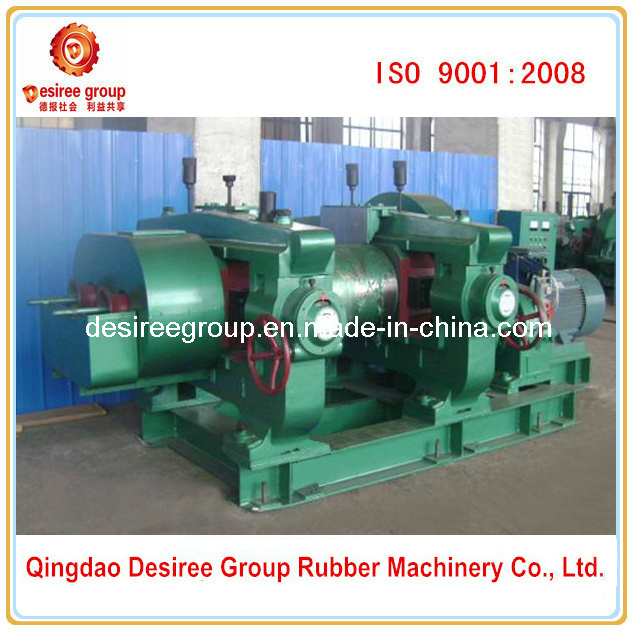

Open Rubber Cracker Mill
Function:
1. Used for crushing the raw rubber before plastication.
2. Used in scrap tire recycling plant, for crushing of processed scrap tire blocks.
Roller detail:
1. Made of chilled cast iron with wear-resistance hard surface.
2. One with grooves, for easy crushing of raw material.
3. The temperature of rollers can be adjusted through inputting steam or cooling water.
Safety:
1. Equipped with overload protection device, to prevent the damage of main components.
2. Equipped with emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Any question about our products, please feel free to contact with us.
We are always pleased to serve you at any time.
Open Rubber Cracker Mill Model No. |
XKP-560 |
XKP-450 |
XKP-400 |
Working diameter of roller(mm) |
Φ560 Front roller/Φ510 Rear roller |
Φ450 |
Φ400 |
Working length of roller(mm) |
800 |
650 |
600 |
Working linear speed of front roller(m/min) |
25.6 |
24.5 |
18.65 |
Friction ratio of front and rear roller |
1:1.28 |
1:1.27 |
1:1.27 |
Main motor power(kW) |
75 |
55 |
37 |
Overall size( L x W x H)(mm) |
4750x2300x2000 |
4650x2000x1550 |
3850x1800x1550 |
Weight(kg) |
18500 |
11000 |
7500 |
Remarks |
Copper bush and rolling bearing both grease and oil |
Nylon bush / Use grease for lubrication |
