Product Specifications
| Prod Model: |
QF-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Qf-Sj-120mm: |
Fiber Cable Extruder |
| Opticale Fiber Cable Machine: |
Fiber Cable |
| Feeding Mode: |
Multiple Feed |
| Assembly Structure: |
Integral Type Extruder |
| Screw: |
Single-Screw |
| Engagement System: |
Full Intermeshing |
| Screw Channel Structure: |
Deep Screw |
| Exhaust: |
Don't Exhaust |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Type: |
Fiber Cable Extrder |
| Plastic Processed: |
Lszh,PVC |
| Product Type: |
Fiber Cable Extruder |
Product Description

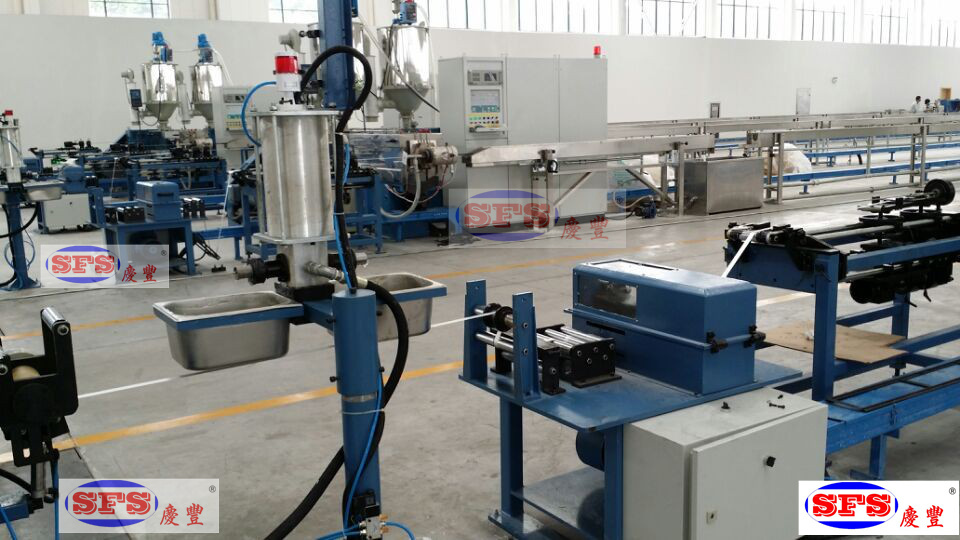

QF-Optical Cable Sheathing Extrusion Line
Application:
Optical cable sheathing line is used for extruding various cable out sheath.
Extrusion materials : LDPE,MDPE, HDPE and etc.
Main Technical specifications:
1.Extruder model:
90 Extruder (According cable spec)
120 Extruder (According cable spec)
2.Designed max linear speed:
90 Extruder:100M/Min
120 Extruder: 80M/Min
3.Production process max linear speed:
90Extruder:80M/Min
120 Extruder: 60M/Min
4. Diameter of finished cable:
90 Extruder: Φ7-30MM;
120 Extruder: Φ8-60MM
5. Extrusion capacity:
90 Extruder: 280kg/h
120 Extruder:360kg/h
6.Size of pay off reel: PN1000-2000
7. Size of take up reel: PN1000-PN2000( or PN1500-PN3150)
8. Power supply: 3 phase, 380V, 50/60Hz.
Main Equipment Structure
1. Portal type rail traversing power pay off
2. Pay off tension controller
3. Steel-aluminum belt pay off device ( or steel wire armored)
3. Steel-aluminum belt mash welder
4. Steel-aluminum belt storage device
5. Steel-aluminum belt corrugators
6. Grease filler
7. Steel-aluminum belt longitudinal tube forming device
8. Non-woven tape pays off device ( optional)
9. 90 extruder(with feeding and drying device)
120 extruder(with feeding and drying device)
10. Electric control cabinet
11. Thermostatic trough (with thermostatic tank)
12. Chilled-water trough
13. Air wiper dyer (without air blower)
14. Diameter gauge tester
15. Inkjet printer (buyer provide it)
16. Spark tester
17. Caterpillar type capstan
18. Take up tension rack
19. Portal type rail traversing take up device.
