Optical Collimator F420-4t

Name: Optical Collimator F420-4t
Brand: china-manufacturer-directory.com
SKU: 712602375
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

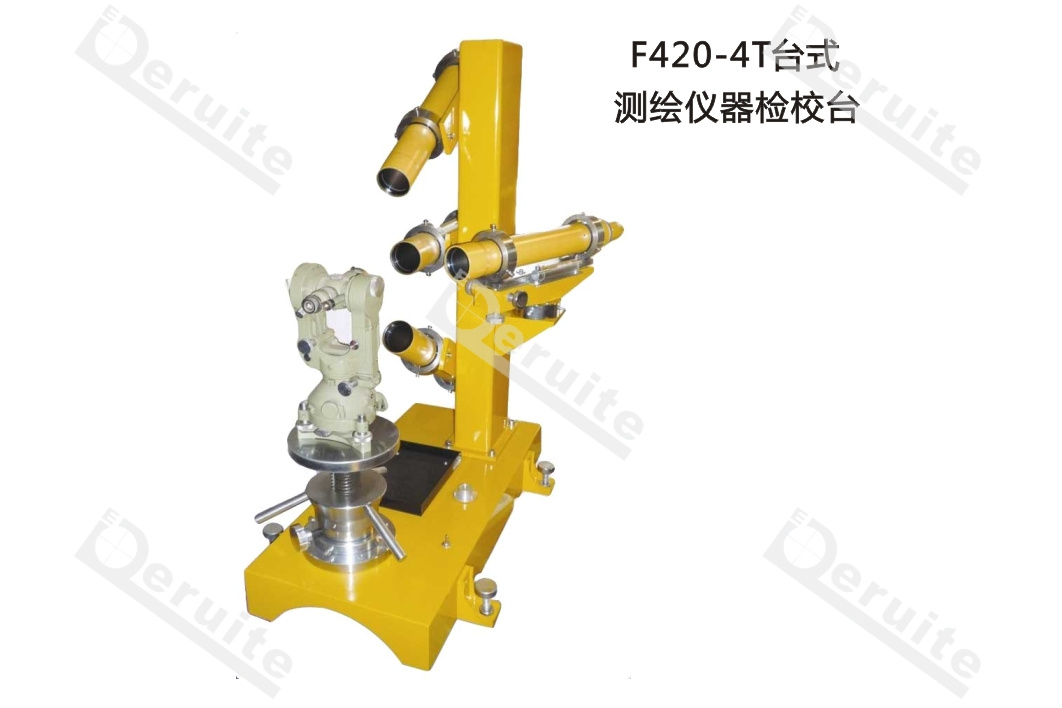

F420-4T is a desktop style and used for autolevel,theodolites and total station.

*Main Technical Parameters:

Tube length: 520mm

Tube focus: 420mm

Tube Aperture: 55mm

Resolution: 3"

Angle of field of view: 10°20

Accuracy(Reticle's division value): 30"

Magnification: 5.7~7X

The shortest target of the level tube: 2m

The far target: ∞

Tubes position:

Horizontal(0°,20°),elevation(30°) and depresion(30°)

Level accuracy:

Round level(On the foundation of the front column): 8"/2mm,

long level(On the front/back horizontal tube):20'

Lifting range of the lifting platform: ≥320mm

Power supply for tube: 4.5~6V,2.1W

Switch power: 1~10A

Lighting source: cold light (with adjustable intensity), green

Shipment package: 3wooden cases,140kgs,0.5cbm

Prod Model:	F420-4T

The company is specialized in surveying instruments and accessories. We can supply you surveying instruments including Theodolites, Total station, Auto Levels, Wooden and Aluminum Tripods, Aluminum staff, Rod, prisms, prism pole, tribach, measuring tapes surveying compass etc.

Besides supplying our products, we can give you international business services with our fully experiences in the field of international trade. We are able to co-ordinate everything from initial design through to manufacturing and production, quality control, assembly, packaging, logistics, imp&exp documents preparation and ultra-fast delivery. We hope our best service will save money for you and send profits to your company.
