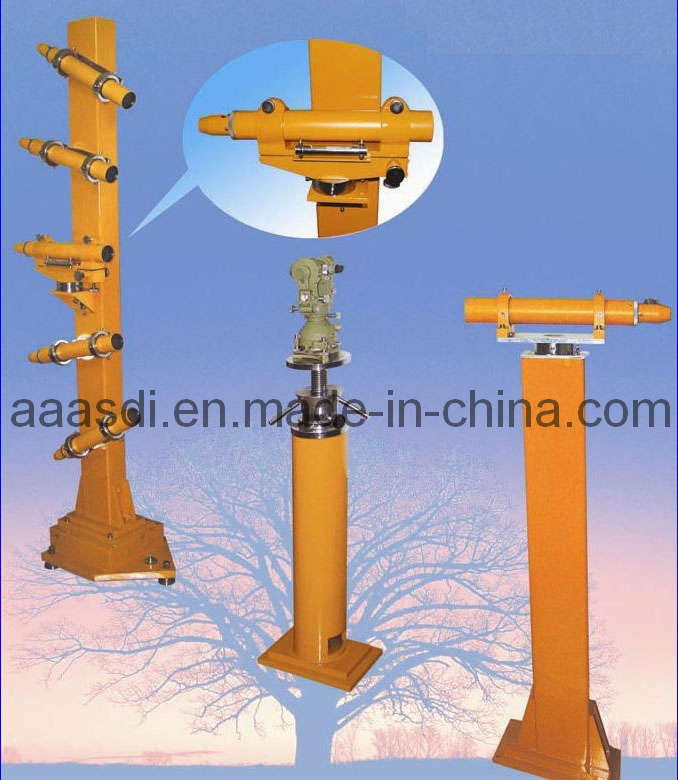

Optical Collimator with Six Optical Tube, (W420-F6)

Name: Optical Collimator with Six Optical Tube, (W420-F6)
Brand: china-manufacturer-directory.com
SKU: 677561145
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,FCA
Min Order:	1/Set
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	W420-F6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

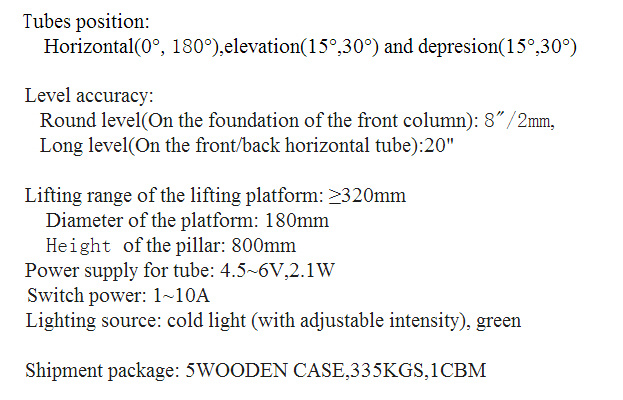

Tubes Position:	(0°,180°),(15°,30°)

Product Description

*Main Technical Parameters:

Tube length: 520mm

Tube focus: 420mm

Tube Aperture: 55mm

Resolution: 3"

Angle of field of view: 10°20

Accuracy(Reticle's division value): 30"

Magnification: 5.7~7X

The shortest target of the level tube: 2m

The far target: ∞

The micro adjusting range of the front/back horizontal tube: 5"

Horizontal: ≤10",

Vertical: ≤10"

The company is specialized in surveying instruments and accessories. We can supply you surveying instruments including Theodolites, Total station, Auto Levels, Wooden and Aluminum Tripods, Aluminum staff, Rod, prisms, prism pole, tribach, measuring tapes surveying compass etc.

Besides supplying our products, we can give you international business services with our fully experiences in the field of international trade. We are able to co-ordinate everything from initial design through to manufacturing and production, quality control, assembly, packaging, logistics, imp&exp documents preparation and ultra-fast delivery. We hope our best service will save money for you and send profits to your company.
