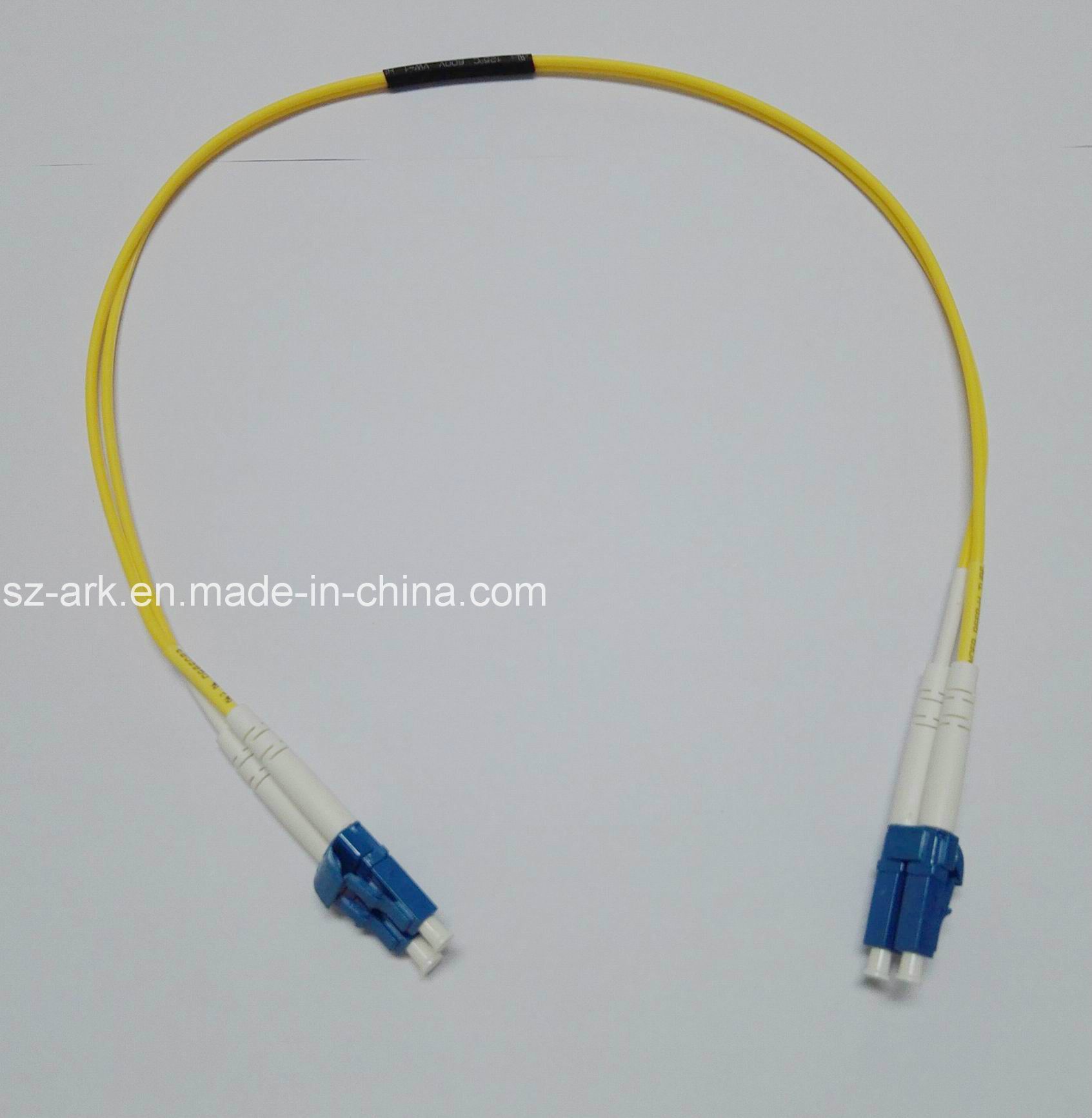

LC-LC patch cord
Features and specifications:
1) Low insertion loss and back reflection loss
2) Good exchangeability
3) Good durability
4) High temperature stability
5) Standard: Telcordia GR-326-CORE
6) Simplex and duplex patch cords available
7) Fan-out available
8) Pigtail available
9) Various boot (cable) sizes available
Parameter:
1) Insertion loss: SM ≤ 0.3dB, MM ≤ 0.3dB
2) Return loss: PC > 45 dB, UPC > 50 dB, APC > 60 dB
3) Durability: ≤ 0.1dB typical change, 1000 mating
4) Operating temperature: -40 to +80° C
5) Repeatability: ≤ 0.1dB
6) Interchangeability: ≤ 0.2dB
Applications:
CATV;
Telecommunication networks
Metro
Active device termination
Premise installations;
Local Area networks;
Data processing networks;
Test equipment
Wide Area Networks
Packing:
Carton, plastic bag or customized
ORDERING OPTIONS
Fiber Type | Cable Type | Connector Color | Boot Size | Boot Color | Polishing Type | Length |
SM: 9/125μm | Simplex | beige | 0.9mm | Beige | UPC | Customized |
MM: 50/125μm | Duplex | blue | 1.8mm | Blue | APC |
|
MM: 62.5/125μm | 4 fiber | green | 2.0mm | Green |
|
|
MM: OM3/150 | 6 fiber | aqua | 2.4mm | Yellow |
|
|
MM: OM3/300 | 8 fiber | black | 3.0mm | Red |
|
|
MM: OM3/550 | 12 fiber | red |
| Black |
|
|
| 24 fiber | metal |
| White |
|
|
