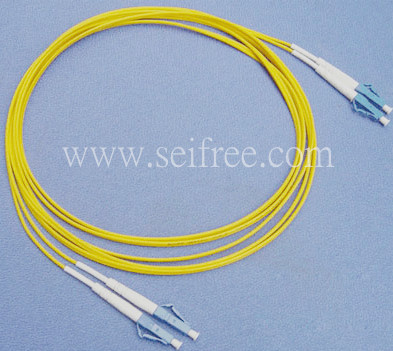

Patch Cord
Patch Cord are important parts of optic network, we also call Optical Jumper Wire. They have same or different type connector which is installed on the end of fiber optic cable.
Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment High Return Loss
CATV System
Telecommunication network
FTTH/FTTX
Quick Details
Place of Origin: Wuhan, China(Mainland) Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve Leadtime: 2 weeks
Mode: single mode
Company Profile
Business type: Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.
Ordering Information
SOFC- - - - - - - -
Cable | First End | Second End | Fiber Type | Pigtail Dim.(mm) | Fan Out Length | Jacket Type | Length |
1=1Fiber | FU(A)=FC/UPC(APC) | FU(A)=FC/UPC(APC) | H=Hi 780 | 09=Φ0.9 | 05=50cm | E=PE | 05=50cm |
2=2Fiber | SU(A)=SC/UPC(APC) | SU(A)=SC/UPC(APC) | F=Flex 1060 | 2=Φ2 mm | 10=100cm | C=PVC | 10=100cm |
4=4Fiber | | | D=G652D | 3=Φ3mm | | H=LSZH | |
| LU(A)=LC/UPC(APC) | LU(A)=LC/UPC(APC) | A=G657A | | 20=200cm | A=Armored | 20=200cm |
R=Ribbon | X=Customization | B=G657B | X=Customization |
| | B=Bow -type | |
| | OM1=62.5/125 | |
| | OM2=50/125 | |
| | OM3=50/125 | |
| | OM4=50/125 | |
Specification
Parameter | Unit | Value |
Connector | / | FC ST SC LC |
Ferrule | / | PC | UPC | APC(Step) | APC(Conical) |
Fiber Type | / | SM | MM | SM | MM | SM | MM | SM | MM |
Insertion Loss | dB | <0.25 | <0.20 | <0.25 | <0.20 | <0.30 | / | <0.30 | / |
Repeatability | Time | >1000 |
Interchangeability | dB | <0.10 |
Return Loss | dB | >45 | >36 | >50 | >36 | >60 | / | >60 | / |
Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.
The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.
We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.
We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
