Focusing or imaging applications
Focal Length: F = -R/(n-1)
N: Refractive index
R: Radius curvature

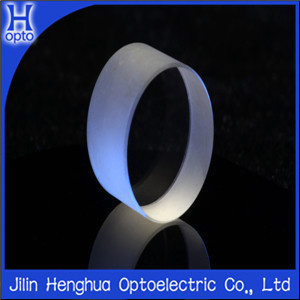

Plano-concave lenses are useful for a wide range of applications. These lenses are manufactured from BK7A grade A (or customer design) optical glass and are supplied uncoated. Anti-reflection coatings are available as listed earlier in this section. To order an anti-reflection coated lens simply append the wavelength in nanometers to the product number.
Parameter:
Item PLCX, PLCC, BICX, BIXX, CXCC, DOUBLET
Material BK7 etc.
Design Wavelength Customer design
Dimension Tolerance +0/-0.05mm
Thickness Tolerance +/-0.1mm
Surface Quality 40-20 or better
Surface Figure Sph surface: Lambda/4 or better @632.8nm
Center Error ETV better than 0.01mm
Clear Aperture 90% of diameter
Bevel Protective bevel
Coating BBAR or customer design
Welcome to inquire us we will make fast reply and service for you!
Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
