Product Specifications
| Prod Model: |
NF-911 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Meter Wavelength: |
850/1300/1310/1490/1550/ 1625nm |
| Light Source Wavelength: |
1310/ 1550nm |
| Visual Fault Locator Wavelength: |
650nm |
| Connector: |
FC/Sc/St |
| Power Supply: |
1.5V * 3PCS |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
ODF |
Product Description

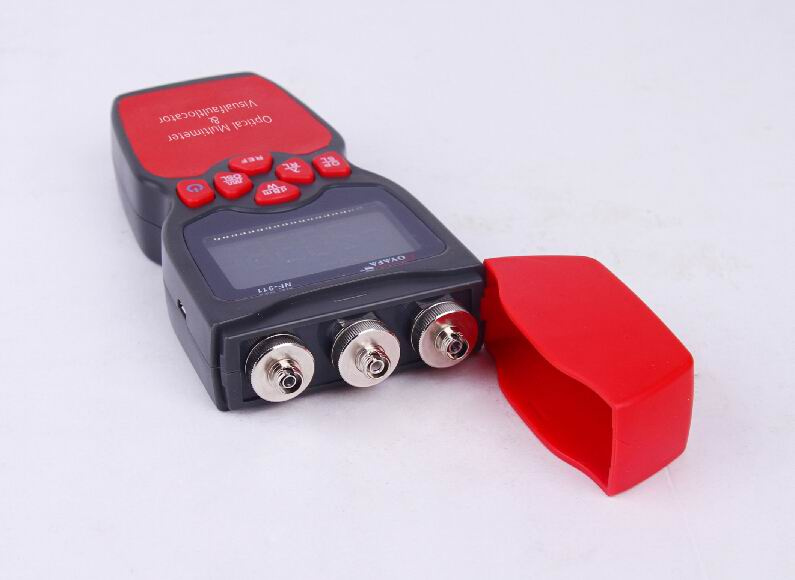

Funtions (Optical multimeter NF-911) :
1. Optical power meter + light source+ visual fault locator
2. Measurement of the power of optical sender (dBm and W).
3. Insertion loss test of optical devices.
4. Built-in VFL, Check fiber breakage, winding,ect.
5. New REF user-defined.
6. FC/SC/ST general-purpose interface.
Applications of Optical multimeter
> Telecom, Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, College, Science & Research Agency, etc.
Specification:
| Model | NF-911 |
| Power meter | Power detecting range(dBm) | -70 ~ +10 | -50 ~ +26 |
| Wavelenth (nm) | 800-1700 |
| Probe | InGaAs |
| Detection limit | ∮1.0mm |
| Standard wavelenth | 850, 1300, 1310, 1490, 1550, 1625nm |
| Display resolution | 0.01dBm |
| Light source | Modulation frequencies | CW/270Hz,1Hz,2Hz |
| Standard wavelenth | 1310, 1550nm |
| Emitter type | FP-LD |
| VFL | Emmiting Energy | 5mw/ 10mw/ 20mw/ 30mw selectable |
| Standard wavelenth | 650±10nm |
| Working temp | -20 ~ +70ºC |
| Power supply | 1.5V*3pcs |
| Battery Operating Time | 240 h with 1.5V Battery(3) |
| Overall dimension | 160x75x32mm |
Standard carton:
* Carton size: 51x33x51cm
* Quantity : 20pcs/ ctn
* Weight: 10kg
