Product Specifications
| Prod Model: |
TL-OP232-IEC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
The optical probe 600007 for smart metering is an interface for data exchange between a consumption meter (eg, electricity meter, gas meter, heating meter, water meter, etc. ) and a peripheral device via infrared optical waves. The optical reading head is manufactured in accordance
With the standard IEC 62056-21 (IEC 1107).

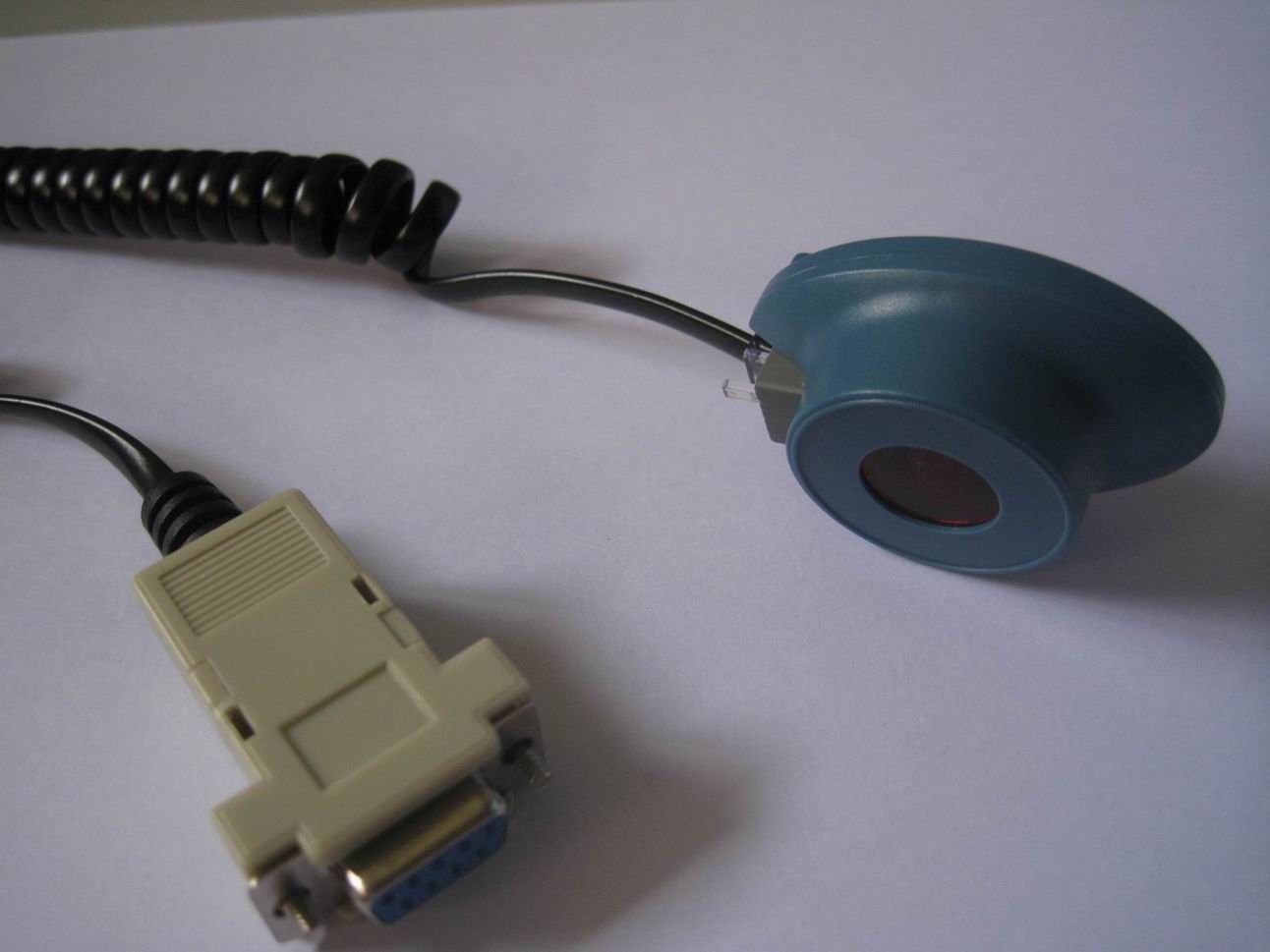

Our optical probe 600007 has on one end a serial dB-9 connector (RS-232, female) which can be connected to a peripheral device. There is a fix mounted magnetic ring on the other end of the optical reading head 600007, which will be docked on your consumption counter.
Please note that additional, specific software is necessary to exchange data between the consumption meter and your peripheral device.
Mechanical description of the optical probe 600007:
Dimensions (Diameter X H): 32 X 27 mm
Magnetical holding force: > 15 N
Casing material: ABS
Cable length: 3 m (Spiral cable)
Weight: Approx. 95gr
Color: Blue
Electronical description of the optical probe 600007:
Standard: IEC 62056-21 (IEC 1107)
Power Supply: From RS-232 interface, no battery required.
Bit rate: 19200 bit/s
Wavelength: 880nm
Signal Levels: Compatible with EIA-232 (RS-232)
