Product Specifications
| Prod Model: |
ADSS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ADSS: |
Fiber Optical Cable |
| Fiber Cable: |
Optic Cable |
| Uni-Tube: |
Support |
| Loose Tube: |
Support |
| Fiber Account: |
2-24 Cores |
| Steel Tape: |
Support |
| Outer Sheath: |
HDPE |
| Underground: |
Support |
| G652D Sm Fibers: |
Support |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
Product Description

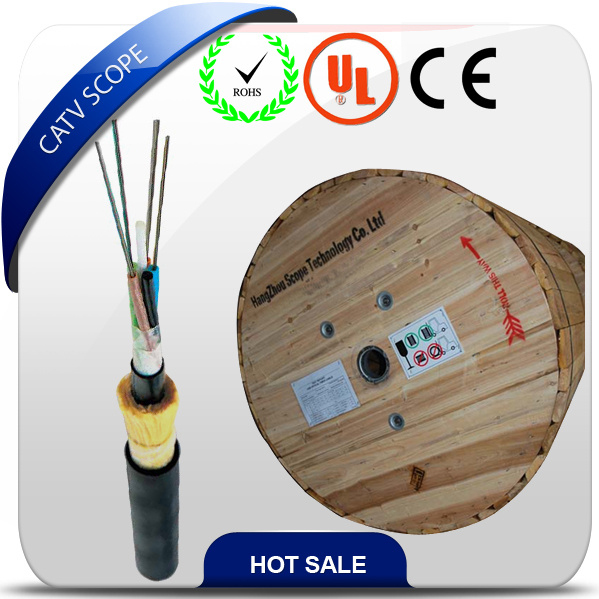

Optical self-supporting cable LTxxx-SM-ADSS
Use: ADSS (All Dielectric Self-supporting) - self-supporting, fully dielectric optical cable for hanging on supports of communication lines and power supply lines, railroad overhead contact system, between houses and other objects.
Design: Cable with several optic modules, twisted around the central dielectric strength element, which can contain up to 144 optical fibers. Cavities between optical modules are filled with hydrofobic water-blocking compound. In cable with small amount of fibers, instead of missing optical modules so called «filling» modules are used. Self-supporting properties of the cable are provided by layer of high-strength kevlar (aramid) threads, placed between extrenal coatings. Two-layered coating is made from UV-stabilized polyethylene of high density, for cables layed along electric power supply lines with voltage value more than 12 kW, a tracking-resistant modification of polyethylene is applied.
Parameters, which should be specified in order:
amount of fibers;
PSL(power supply line) voltage level;
maximum, minimum, and average operating temperatures;
span length*;
maximum allowable speed of wind*;
maximum allowable thickness of ice surface*.
Note: instead of parameters with (*) mark, it is enough to specify maximum allowable tensile force for the cable.
An optical fiber Fujikura FutureGuide is placed in the cable - LWP (complies with ITU-T G.652.D) its specifications you can find here. On a client's demand cable can be manufactured with fibers by ITU-T G.655
CatvScope Co. Ltd is specialized in fiber optic communication product provider. Our products range from the basic components to end products, including passive and active categories. We are an experienced and trusted provider of FTTH optical cables and all kind of accessories needed for the network construction, we also provide Ethernet and CATV equipment.
The Company's current broad product offering is built on fundamental technologies, and is designed to provide end-users with fiber optic cables that are easy and economical to install, provide a high degree of reliability and offer outstanding performance characteristics.
We offer a comprehensive selection of fiber optic products to customers in different industries and regions. Our one-stop electronic shop gathers thousands of products from the best Chinese factories as well as some well-known brands.
We provide only the best quality products, with fast and on time delivery at competitive prices. To serve our customer better, we stock most of the commonly used products.
We constantly screen the Chinese fiber optic equipment market in a search of the most efficient product solutions available.
We supply products of a consistent quality. Our engineering team monitors the manufacturing process and inspects products before shipment. A professional customer service team is always ready to consult you on all the issues related to our products.
Our company is well known in China and Overseas markets and with our experience, our comprehensive quality control process, Our clinet include: Europe, Middle East, South Asia, South America.
