Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength(Nm): |
1310/1550 |
| Emitter Type: |
Fp-Ld |
| Transmission Distance: |
≥80km |
| Dynamic Range: |
40db |
| Battery Operating Time: |
5 Hours |
| Optical Connector: |
FC/PC |
| Operating Temperature: |
-10 ~ +60 Degree |
| Storage Temperature: |
-25 ~ +70 Degree |
| Dimension(Mm): |
215X115X55 |
| Weight(G): |
520 |
Product Description

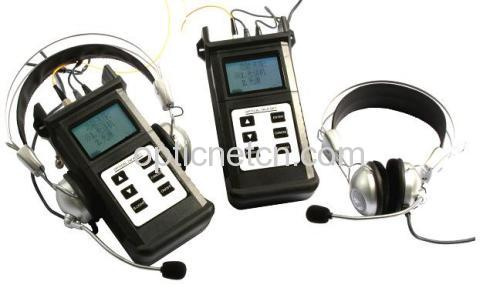

ONT400 Optical Talk Set is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The ONT400 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Feature
1) Portable, rugged, light weight; Easy to use
2) More accurate testing results and better repeatability
3) Up to 8 fiber faults can be detected in each measurement
4) Automatic Pulse Width Control design to ensure a convenient operation
5) Easy to identify the fault location
6) Built-in visual fault locator(VFL), conveniently to find the results in dead zone
7) Dust, water and shock proof, designed for field use.
8) Long battery life, up to 5000 measurements operation
Applications
1) Maintenance in Telecom
2) Maintenance CATV
3) Test Lab of optical fibers
4) Other Fiber Optic Measurements
Standard Packages
ONT400 Optical Talk Set(pair), Protective Rubber Boot, Headset, Rechargeable battery, Power Supply Adaptor, Instruction Manul, Contton Tampon and soft carrying case.
| Type | ONT400 |
| Wavelength(nm) | 1310/1550 |
| Emitter Type | FP-LD |
| Transmission Distance | ≥80km |
| Dynamic Range | 40dB |
| Output Power | -5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation |
| Output Stability | ±0.1dB/±0.25dB(1/8hrs) CW |
| Power Supply | Rechargeable Battery + Power Supply Adaptor |
| Battery Operating Time | 5 hours |
| Optical Connector | FC/PC |
| Operating Temperature | -10 ~ +60 degree |
| Storage Temperature | -25 ~ +70 degree |
| Dimension(mm) | 215X115X55 |
| Weight(g) | 520 |
| Remark: we also provides Fiber Optic Clip-on Coupler device according to customers needs. |
Optic Network Technology Co. Ltd. Is one of the high-tech companies, who is specialized in developing, manufacturing, selling and serving telecommunication-level products.
We have several branches, offering a wide range of the products, such as Fiber Optic Splice Closure, Fiber Optic Termination Box, rack mounting ODF, wall mounting ODF, optical cross cabinet as well as passive components, such as patchcord, pigtail, optical splitter, attenuator, DWDM/CWDM/WDM, etc. One of the divisions also covers fiber optic testing equipment such as Optical Power Meter, Optical Light Source, Fiber Identifier, OTDR, Visual Fault Locator, etc.
With the continuing rapid development of Internet, new Internet service which continuously increase needs of bandwidth of Internet access, our company FTTX solutions adopt independent R&D Optical Link Service products. We have taken full consideration of requirement in different operating environment by offering a range so f OLT, ONU, etc. GEPON products for customers various needs. Our FTTX products also include FTTX FOSC with splitter mounted, FTTX box,
MDU splitter terminal, EPON/GEPON broadband data integration cabinet.
Our company have consistent quality, and our QC team monitor the manufacturing process and inspect all the products before shipment. Our products have been exported to North America, South America, East Europe and West Europe, Middle East, Africa and Asia.
"High quality, good service, competitive price, mutual benefit and innovative technology' is our eternal goal. We are confident that we will be your reliable partner in China and Look forward to establishing fruitful business relationship with the customers domestic and overseas
