Product Specifications
| Prod Model: |
cat5e |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Bare Copper,CCA Tc,Ccag,CCS Is Available |
| Conductor Diameter: |
0.5mm |
| Insulation: |
PE |
| Jacket: |
PVC+PE |
| Al Foil: |
Yes |
| Length: |
305m/Pull Box |
| Color: |
Blue,Grey,Green,Yellow...Optional |
| Flammability Grade: |
CMP,Cmr,Cm,Cmg,Cmx |
| Temperature Range: |
-20,+75 |
| Service Life: |
10~15years |
| Application: |
LAN Cable |
| Type: |
Cat 5 |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Model: |
Cat5e |
| Brand: |
ADP&OEM |
| Conductor Material: |
Bare Copper |
| Material Shape: |
Figure 8 |
Product Description

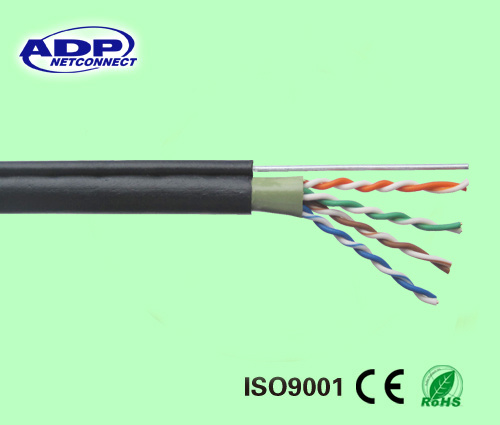

Outdoor Cat5e Cable with Steel Messenger for telecommunication use
Reference standard: UL, ISO9001: 2000, CE
Material of conductor: Ccag/CCA/CCA+CCS/A copper(99.99%copper)/B copper(85% copper)
Diameter: 23awg/24awg/26awg/28awg
PVC+PE double jacket
Complies to TIA/EIA-568B&ISO/IEC 11801
Application:
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring
Cable Construction:
Conductor Dimension: 0.50mm
Core Dimension: 0.91mm 0.92mm
No. Of Pairs: 2 or 4
Nom. OD: 5.3mm 14.0mm 13.0mm
Type of Jacket: PVC/PE PVC/PE PVC/PE
Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21
Note: New material of PE/PVC
PE: 150Degree PVC: 80Degree
Work temperature: -20degree to 70degree
Testing: Put the cable into the fridge and adjust the temperature lowest until 24 hours, it will not broken.
Packing:
1.305m/color box(can design according to customer requirement)
Three color box/CTN(61.5*35.8*36.5)
1050boxes/ 20 GP 2100boxes/40GP 2500boxes/40HQ
Other lengths available according to client's request.
Sample can be free available if want to final checking.
|
AWG |
23,26,28 |
|
Type |
indoor,outdoor |
|
Fluke |
pass |
Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.
Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.
Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.
We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
