Product Specifications
| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
More Than 9000CD/Sqm |
| Mtbf: |
10, 000hours |
| IP Grade: |
IP68 |
| Lide Span: |
More Than 12years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
RoHS |
| Pixel Density: |
10000 dot / m² |
| Pixel Pitch: |
6mm |
Product Description
Feature and Advantage

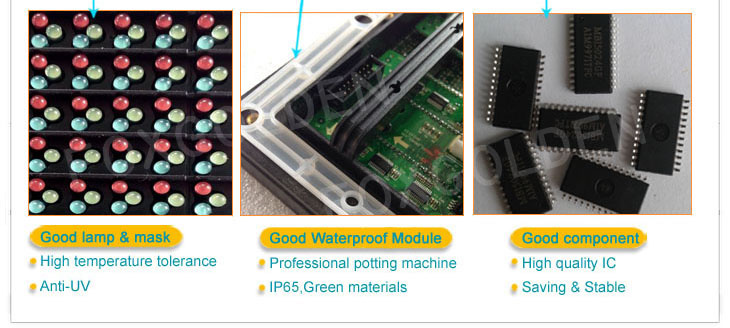

1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 10-300m
3. White balance brightness: 9000CD/sqm can adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 500W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days
|
Description |
Technical parameter |
|
Unit module |
Module size |
256*128mm |
|
Pixel pitch |
16mm |
|
Pixel density |
3904dots/m2 |
|
Pixel configuration |
2R1G1B |
|
Led specification |
Φ 5ellipse |
|
Pixel resolution |
W: 16dots*H: 8dots |
|
Cabinet |
Dimension |
1024mm*768mm*110mm |
|
Quantities of module |
24pcs |
|
Power supply |
5pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
55kg |
|
Best viewing angle |
12-300m |
|
Temperature |
Storage: -35degree~+85degree |
|
Working: -35degree~+85degree |
|
Thickness |
11cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. |
|
Power |
Working voltage |
AC220V/110V± 10% |
|
Average power consumption |
500W |
|
Max. Power consumption |
≤ 1000W/sqm |
|
Current |
≤ 20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
Static scanning, also virtual |
|
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥ 400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 9, 000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥ 10, 000hours |
|
Life span |
≥ 100, 000hours |
|
Flatness |
Tolerance of interpixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Communication distance |
Network calbe: 100m, Multi-model: 500m, Single-model fiber: 20km |
|
Software |
LED media player |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
