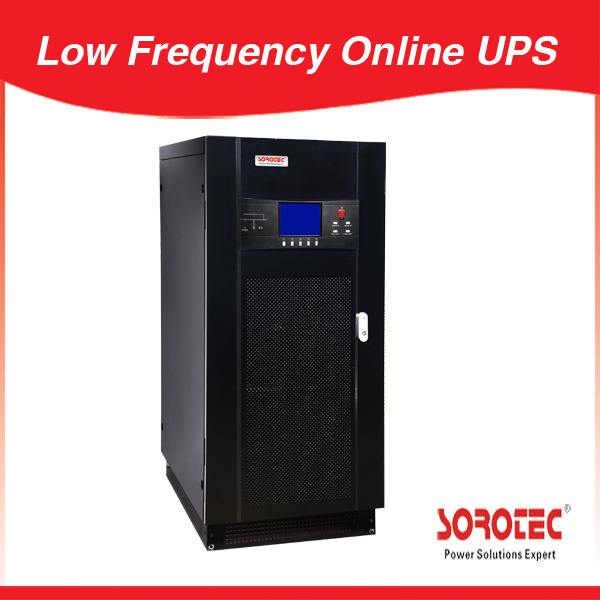

Output Power Factor 0.9 Low Frequency Online UPS Series 120 - 800kVA 3pH in / out

Output Power Factor 0.9 Low Frequency Online UPS
Key Features:
1.0.9 output power factor,UP to 6 units in parallel

2.6-inch extra large LCD that display 12 language( English/Russian/Spanish/French^)

3.The efficiency of the machine is more than 94%, and reach 98% in ECO mode.

4.6th generation DSP control

5.Intelligent battery management: Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.

6.Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety under extreme conditions

7.Extra wide input voltage and frequency range make it adapt to severe power grid environment

8.Standard input/output filter improves the system EMC performance

9.Intelligent battery management maintains battery automatically to prolong the battery life

Applications:
Mainly used in large IDC rooms, bank/securities settlement center, communication network management center, semiconductor product lines and large automation production and its control system. According to the special needs of users was improved, and used in large sports venues, conference room, theater and highway and railway tunnels metal halide lamp lighting system.

Product Descriptions of 40Kva Online UPS

Model

GP9335C 10-120KVA

6p

12p

6p

12p

6p

12p

6p

12p

6p

12p

12P

12P

12P

Rated Nominal

10KVA /9KW

20KVA /18KW

30KVA /27KW

40KVA /36KW

60KVA /54KW

80KVA /72KW

100KVA /90KW

120KVA /108KW

Rated input voltage

380/400/415VAC 3-phase 4-wire

Rated frequency

50/60HZ

Input parameters

Input voltage range

±25%

Input frequency range

45Hz~65Hz

Input soft start function

0-100%   5-300settable

Input power factor

>0.8

Input harmonic current (THDi)

<20%

Bypass

Bypass voltage range

-20%~+15%

Bypass frequency range

50/60HZ±10%

Output parameters

Inverter output voltage

380/400/415VAC 3-phase 4-wire

Voltage stability

±1%(Steady status),±3%(Transient status)

Frequency

50/60Hz

Mains power synchronization window

±5%

Actually measured frequency accuracy (internal clock)

50/60Hz±0.05Hz

Output power factor

0.9(Output 90kW per 100kVA)

Transient response time

<5ms

Inverter overload capability

At 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s

Short circuit current from inverter

3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds

DC Voltage

360/384/432/480VDC

Maximum Bypass capability

1000% for 100ms

Phase shift

With 100% balanced load

With 100% balanced load

<1%

characteristic

With 100% imbalance load

With 100% balanced load

<1%

Total harmonic

100% linear load

100% linear load

<1%

Distortion(THDv)

100% non-linear load

100% non-linear load

<3%

System efficiency (full load)

Up to 94% (inverter efficiency is up to 98%)

Rectifier output parameters

Charger output voltage stability

1%

DC ripple voltage

≤1%

Operating environment

Operating temperature range

0~40°C

Storage temperature

-25~70°C(Without battery)

Relative humidity

0~95% No condensation

Maximum Operating Height

≤Elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m

Noise (1m)

58-68dB

Protection level

IP20

Standard

Safety: IEC60950-1 IEC62040-1-1 UL1778 EMC IEC62040-2 CLASS C2 EN50091-2 CLASS A Design and Test IEC62040-3

Physical Parameters

Weight(kg)

980

1420

1200

1750

1350

2000

1600

2200

2100

2750

3690

6390

7390

Dimension(WxDxh)mm

900 *855 *1900

1250*855   *1900

1640 *855 *1900

1250 *855 *1900

1640*855   *1900

2280 *855 *1900

2835 *1000 *1950

3955 *1090 *1950

APPLICATION OF OUR PRODUCT
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip

COMPANY SHOW
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.

WHY CHOOSE US ?
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

FAQ
1.Output wave when take the full load
This product provide pure sine wave output when take the resistance load.
  ...................................................................................................................................................
2.About THDI
Because this series product is not rectifier function, so can't make the THDI when use it.
  ...................................................................................................................................................
3. About service
We are keep the most closely relationship with customers ,In order to satisfy the
customer enjoy the most perfect after- sales service.
  ...................................................................................................................................................
4.About SORO technology
We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.
  ...................................................................................................................................................
