Price: | US $ 1990-2120/Square Meter |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Square Meter |
Pay Type: | T/T,Western Union |
Prod Model: | P3 Indoor LED Display |
---|---|
Markets: | North America,South America,Africa,Mid East,Western Europe |
LED Module Size: | 192mm*96mm |
Module Resolution: | 64dots *32dots |
LEDs: | SMD2121 |
LED Modules Max Power: | 18W |
Brightniess: | 1500mcd/Suqare Meter |
Interface Type: | Hub75A |
LED Modules Weight: | 0.2kg |
Warranty: | 2 Years |
Display Type: | LED Video Display |
Tube Chip Color: | Full Color |
Display Function: | Video Display |
Scanning Mode: | 1/16 Scan |
Application: | Shopping Guide |
Pixel Configuration: | 1R,1G,1B |
Certification: | FCC |
System Operating Platform: | WIN2000 |
Pixel Pitch: | 3mm |
IP Rating: | IP31 |
Pixel Density: | 111111 |

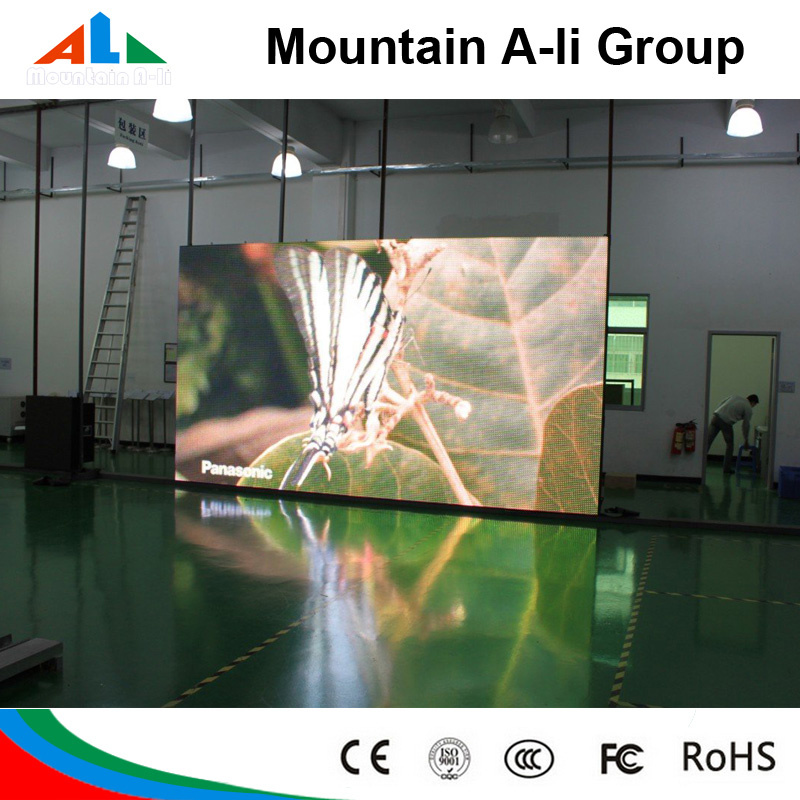

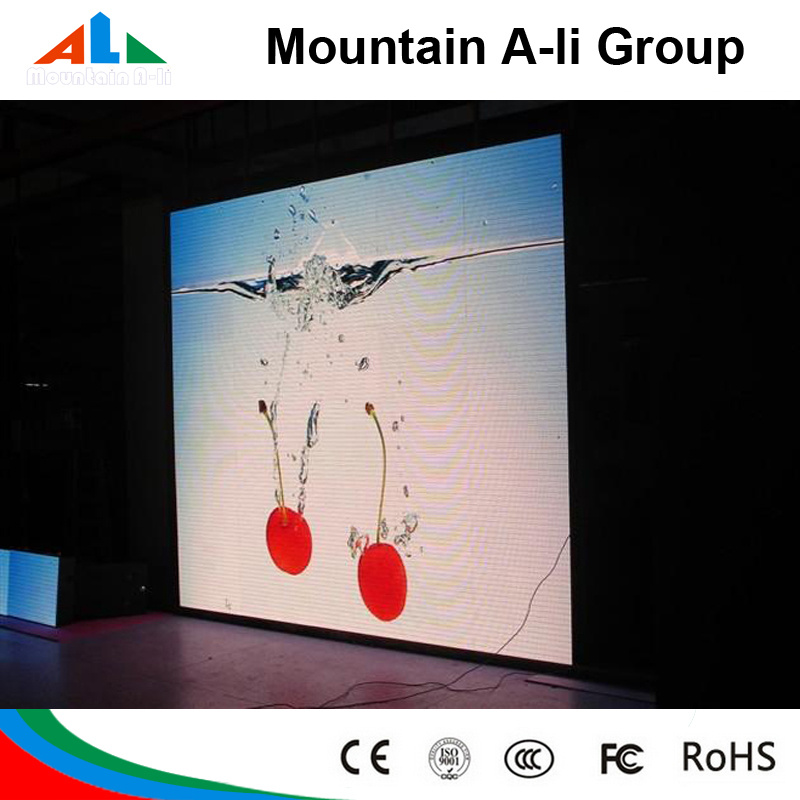

P3 Indoor Rental LED Display For Stage Video
Advantages:
Features:
1,Super slim cabinet and maximum thickness is only 75mm.
2,Super light cabinet and it's only 9.5kg/pcs.
3,Different colors of back cover can be satisfied with people's demand in different feeling.
4,Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ.
5. The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid
accidental collision and dropping off and connect the screen is safer.
6,Based on unique back cover of design, according to the site conditions, it can be selected a
variety of quick repairing method.
7,Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure
and its flatness ≤0.5mm.
8,Using Neutrik flight connector can make sure that LED screen is connected to be faster and it
works more steadily.
9,Using DC cooling fan can effectively reduce the noise when it's used in indoors.
10,Support for stacking and hanging installation.
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1. | |||
Pixel | Item | Parameter | |
Real Pixel pitch | 3mm | ||
Pixel composition | 1 red, 1 green and 1 blue LED | ||
Module | Module resolution | 64 x32 =2048pixels | |
Module size | 192mm x96mm | ||
Cabinet | Cabinet size | 576mm x576mm x 88mm | |
Cabinet resolution | Real pixel: 36864pixels | ||
Cabinet materials | Cold rolled steel (mixed Iron & steel) | ||
Screen | Physical Resolution /sqm | 111111pixels/sqm | |
Brightness | ≥ 1500cd/sqm | ||
Brightness adjustment | 256 level automatically | ||
Scanning method | 1/16scan & physical pixel | ||
Drive methods | Constant current drive | ||
Best Viewing angle | Horizontal: 110 degrees, vertical: 110 degrees, | ||
Grey scale | 65536 levels | ||
Color processing | 16bit | ||
Display colors | 4.4trillion | ||
Contrast ratio | 2000: 1 | ||
Frame rate | > 60 frames/sec | ||
Refresh rate | 1000-3000HZ(no flickers whilecamcorder recording) | ||
Control method | Synchronized with computer monitor | ||
Lifetime | > 100, 000 hours | ||
Defects rate | ≤ 0.0001 | ||
Operating voltage | AC220V± 15% , 50/60HZ | ||
Screen power consumption | Max: 1800w/sqm; Average: 750w/sqm | ||
Color temperature | 6500K± 500 | ||
Control distance. | 100 m(no repeating) by net line; Optical fiber: 500m- 10km | ||
IP level | IP40 in the front, IP40 at the back | ||
Operating temperature | _ 20degree--+60degree | ||
Operating ambient humidity | 10%_ 95%RH |
