Description

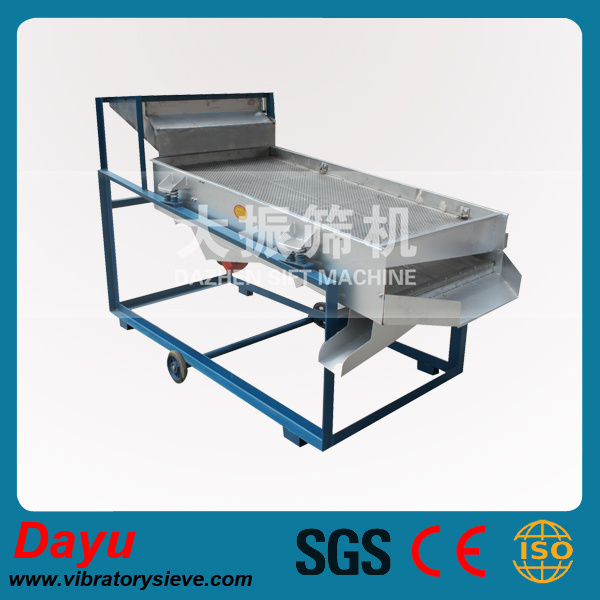

Stainless Steel Linear Vibrators Screen uses wonderful vibrant motor as power source,
so that the materials can be thrown up on the sieve and forward to making a linear moving path.
Linear vibrating sieve machine for sand can be equipped with single or multi-deck to realize the grading, removing impurities, dust, testing,washing selecting, dehydration and so on.
Advantage
1. Stainless Steel Linear Vibrators Screen have high sieving efficiency, high utilization ratio of screen, with bouncing balls set under the screen which eliminates mesh blockage, increasing precision of sieving.
2. Continuous working.
3. Fully enclosed structure avoids dust overflow, realizeng the request of sanitation.
4. Rubber springs may be used on customers' requests, which would considerably reduce
running noise, improving labors' working environment.

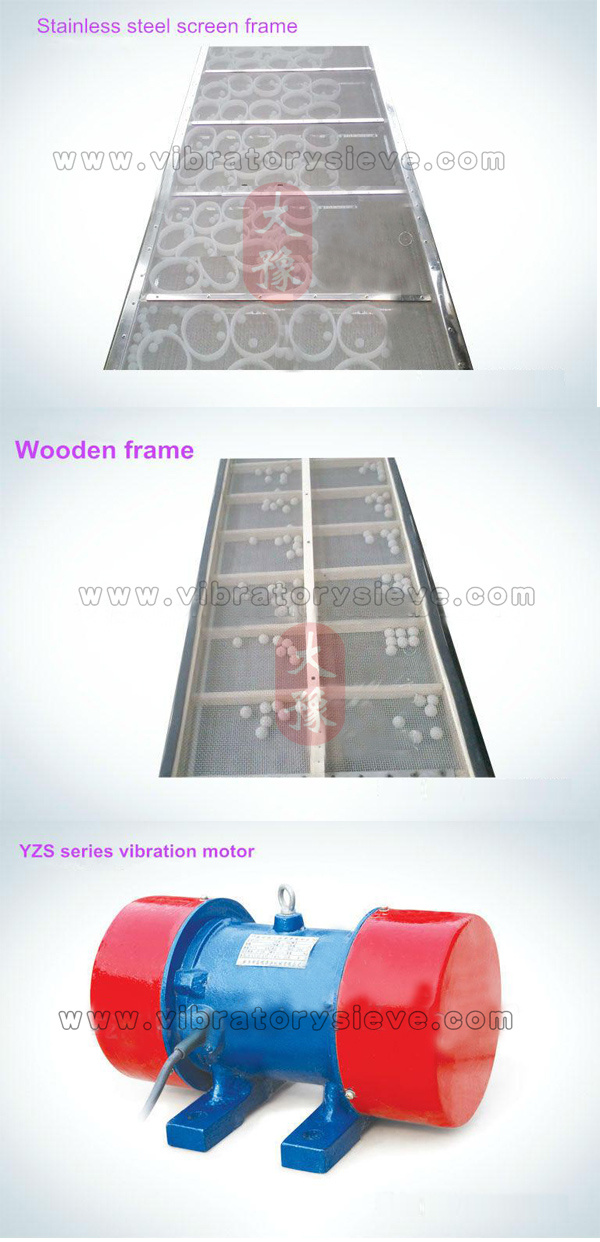

5. Simple and rational tensioning mode of screen, easy to replace.
6. The screen frame may be replaced as every different mesh numbers, saving running cost.
IN ADDITION:WE HAVE EXPERT GLOBAL MARKING EXPERIENCE FOR TEN YEARS SO WE CAN RESPOND TO YOUR DEMAND QUICKLY
How to get a suitable machine?? Pls kindly provide the follow information:
1. What are the materials to process?
2. What's the feature of the materials? Like density, moisture degree,input particle size and output particle size.
3. How many layers do you need? And what's the screen mesh for each layer?
4. What's your capacity per hour?
5. What's material for the machine? Stainless steel or contact part stainless steel or carbon steel??
6. Other special requirement.
We can design the vibrating screen according to your requirement,
if you are interested in our products, pls contact wih us for more information.
| Model | Screen
Specification
(mm) | Layer | Mesh Size
(mm) | Particle Size
(mm) | Vibrating Frequency
(r/min) | Double Amplitude
(mm) | Power
(KW) |
|
| DZS525 | 500×2500 | 1--6 | 0.074-10 | 0.06-15 | 960, 1450 | 4--8 | 2×0.4, 2×0.75 |
| DZS 1020 | 1000×2000 | 1--6 | 0.074-10 | 0.07-20 | 960 | 4--8 | 2×0.75, 2×1.5 |
| DZS 1025 | 1000×2500 | 1--6 | 0.074-10 | 0.07-15 | 9,601,450 | 5--8 | 2×0.4, 2×0.75 |
| DZS 830 | 800×3000 | 1--6 | 0.074-10 | 0.1-20 | 960 | 6--8 | 2×0.75, 2×1.5 |
| ZYSZ1030 | 1000×3000 | 1--6 | 0.074-10 | 0.1-20 | 960 | 6--8 | 2×0.75, 2×1.5 |
| DZS 1224 | 1200×2400 | 1--3 | 0.074-10 | 0.1-23 | 960 | 6--8 | 2×0.75, 2×1.5 |
| DZS 1230 | 1200×3000 | 1--3 | 0.074-10 | 0.1-23 | 960 | 6--8 | 2×1.5 |
| DZS 1530 | 1500×3000 | 1--6 | 0.074-10 | 0.1-23 | 960 | 6--8 | 2×1.5 |
Xinxiang DaZhen Sift Machine Co., Ltd, located in Xinxiang industrial zone, is an SGS audited enterprises engaged in R&D, production and sales of vibrating screen equipments, grain cleaning and grading machine, bucket elevator, belt and auger conveyors, vibration motor etc.,
Our company owns an experienced technical team, with more than 100 workers and 30 engineers. We have two production bases, with all kinds of mechanical processing, Sheet metal forming, and welding equipment.
Our main products include:
Vibrating screen series: Ultrasonic vibrating screen, rotary vibration sieve, flange type rotary vibration sieve, gate vibration sieve, sieve for ceramic industry, test sieve, linear vibrating screen, mining vibration screen, high-efficient heavy-duty sieve, round vibration sieve, sieve, sieve dehydration, strokes such as linear sieve, hot griddle;
Lift series: Vertical vibration of elevator, bucket elevator;
Conveyor series: Screw conveyor, belt conveyor, belt conveyor, vibrating conveyor, high temperature material conveyor, long and high temperature conveyor;
Feeder series: Reciprocating vibrating feeder, vibrating feeder motor, electromagnetic vibrating feeder, vibration motor, vibration occlusion device, etc.
Products are widely used in chemical, food, medicine, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, South Korea, Japan, Korea, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.
With 20 years experiences, our company insist on "Best Quality, Excellent Service, Advance Techniques, Continuous Innovation", we have obtained trust and good reputation from our customers. We also establish an impeccable service system to solve problems for customers. We believe you will also appreciate us for our quality products and best service after a period cooperation with us.
