Price: | US $ 158/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
Prod Model: | CM8811FN |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measuring Range: | 0 - 1250um/ 0 - 50mil |
Language: | English and Chinese Selectable (Customiz |
Accuracy: | +/-(2%+2um) / +/-(2%+0.1mil) |
Display: | Simultaneously Display Measuring Value, a |
Memory: | 50 Data Store |
Unit: | Metric/Imperial Switchable (Mil/Um Selectabl |
Backlight: | Brightness Adjustable, Clear and Easy |
Alarm: | Set Higher and Lower Alarm Range for Measur |
Calibration: | Zero-in, 2 Points Calibration and Mul |
Data Delete: | Delete a Single Data or Clear All The |

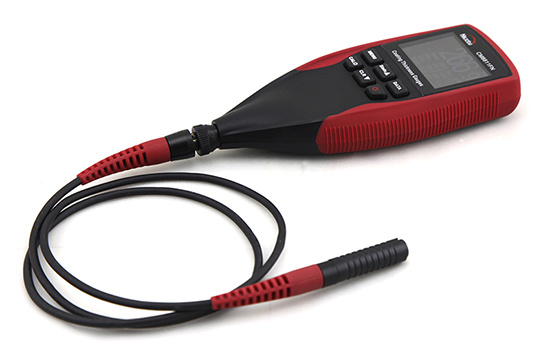

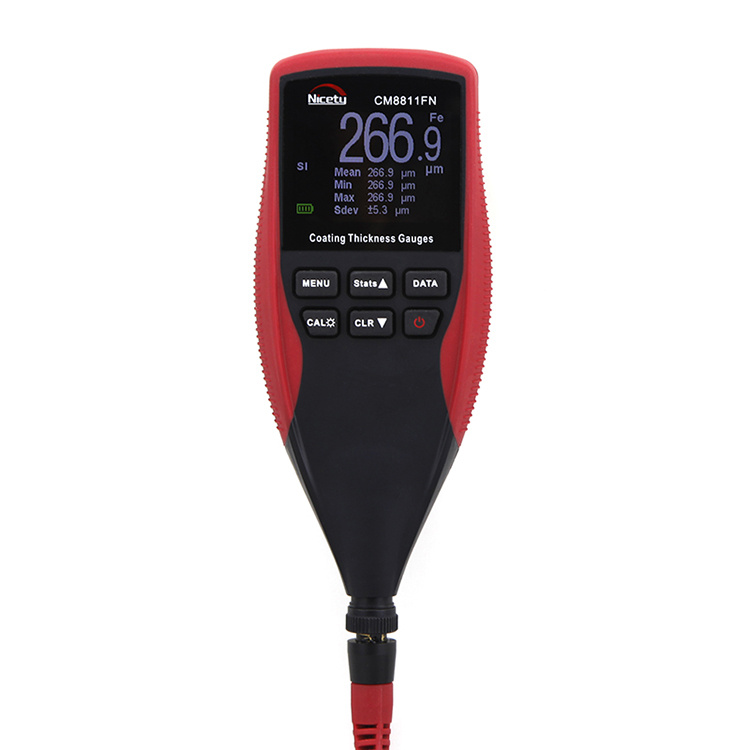

Paint Thickness Gauge Automotive Paint Thickness Gauge Paint Detective Car crash check Lacktester
Function:
Measuring: Continuous and Single Measurement available
Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory: 50 data store
Unit: Metric/Imperial switchable (mil/um selectable)
Backlight: Brightness adjustable, clear and easy reading under any light condition
Alarm: Set higher and lower alarm range for measuring
Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
Battery: Low battery indication
Language: English and Chinese selectable (customization for other languages available)
Data Delete: delete a single data or clear all the data
Specification
Range: 0-1250μm /0-50mil
Resolution: 0.1μm/mil
Accuracy: ±(2%+2μm) / ±(2%+0.1mil)
Display: TFT 320*240 LCD
Test Limits:
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface: Φ8mm
Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):
Temperature: 0ºC~40ºC
Humidity: 20%RH-90RH
Product Size: 166 x 68 x 30mm
Weight: 180g (batteries included)

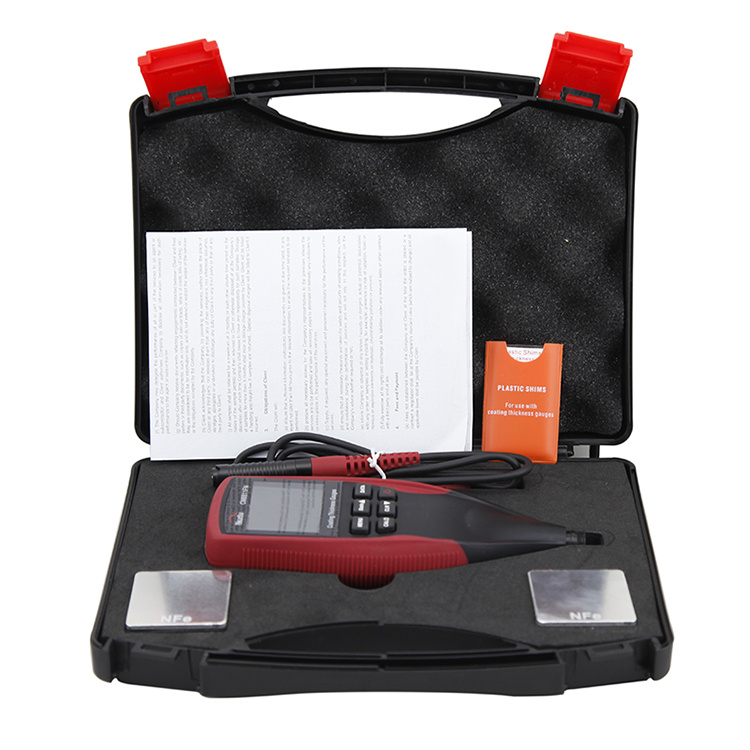

Standard Individual Packing:Fe / NFe probes.Set of plastic test shims and 2 reference calibration plates (Steel and Aluminum).Hard shell storage case.Instruction manual.
Standard Quantity Per Carton:30PCS
Standard Carton Measurement:48.5*58.5*26mm
Standard Carton Gross Weight: 14.8kg
