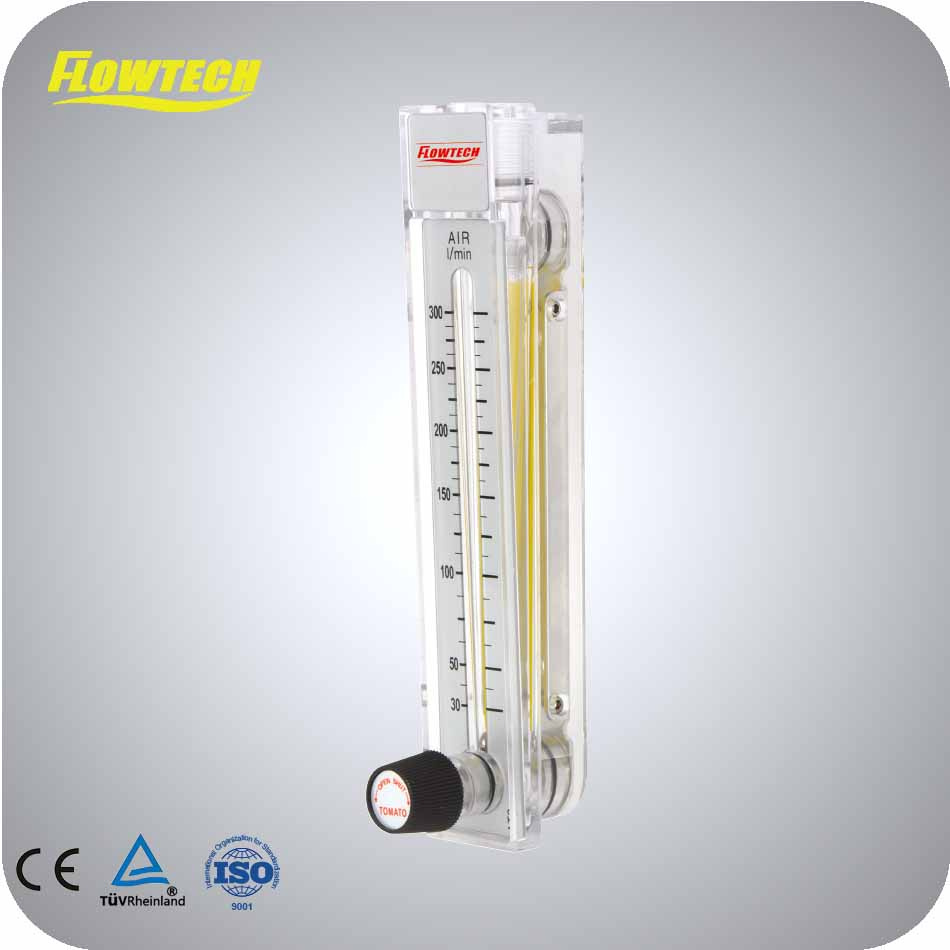

Panel flow meter
Z-7000 series flowmeter is used in small air flow and liquids, with good shape, easy to install, wash and replace spare parts.
Body is PC(polycarbonate), valve is optinal
Flowmeter line of direct reading precision flowmeters incorporates many unique user features at moderate cost. These low cos flowmeters are ideal for general use.
Easy to ready design-the direct reading scales eliminate troublesome conversions. The scales are PC stickers. Special integral flow guides stabilize the float throughout the range to keep it from hunting or wandering in the bore. The float is highly visible against a white background.
Construction assures accuracy-All rate flowmeter bodies are injection molded of tough, cear, shatter-proof polycarbonate plastic around a precision tapered pin. The result is accurate and repeatable readings. The single piece plastic body s mounted to a stainless steel back bone into which pipe thread inserts are welded to absorb piping torque. Precision metering valves of brass or stainless steel.
Installation is simple-the flowmeter can be neatly panel mounted to keep flow tube centers in the same plane as the panel surface or surface mounted on the automatically positions the instrument at the correct depth in the panel cutout. Surface mounted units can also be held in place by the piping.
Model |
FlowRange |
Connection |
Working Pressure
(MPa) |
Accuracy |
Temperature
(C) |
|
LPM(WATER) |
LPM(AIR) |
Z-7001 |
0.1-1.1
0.25-2.5
0.3-3.5 |
0.05-0.5
0.1-1
0.5-5
2.5-25
5-50 |
6mm hose |
≤0.6 |
+/-5% |
0-60C |
Z-7002
|
1-1.5
1-2
1-3 |
0.5-5
1-10
5-25
7-70
5-50
10-100 |
1/8PT |
Z-7003 |
1-4
1-7
1-9 |
10-100
15-150
20-140
20-200
30-300 |
1/4PT |
YUYAO ZHENXING FLOWMETER INSTRUMENTS FACTORY established in 1991 as a professional manufacturer of flow instruments, having been involved in this field more than 20 years. Our main products are electromagnetic flowmeters, paddle wheel and turbine transducers, battery powered electromagnetic water meters and rotameters. We are located in the city of yuyao where near High-speed rail station only 2000 meters with convenient transportation access. Our plant area is more than 18000 square meters, we have done more than 10 years of foreign trade business with about one hundred countries include United States, the Netherlands, Poland, Germany, Itay, Korea, Japan, Taiwan, France, Arabia, Brazil, Australia, South Africa, Sweden, India, Malaysia, Vietnam etc, and has experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
We have high accuracy instrument equipments to strictly control the products quality and we also have a good team to develop flowmeters. Besides, we are also making great efforts to develop new products to meet special requirements. We have a good reputation among our customers of our good service, high quality and competitive prices. We hope to do good business with your company base on mutual benefits and warmly welcome to our factory for further cooperations.
