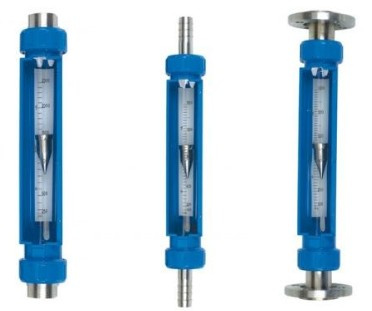

Panel Mount Acrylic Flowmeter-Glass Rotameter-Oxygen Flow Meter
| Price: |
US $ 130/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
Lzm-Zt / T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| Pressure: |
Suitable for Very High Pressure |
| LCD: |
Yes/No |
| Output Signal: |
4~20mA |
| Flow Fluid Measured: |
Liquid, Air, Gas |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN5-10 |
| Sensor: |
Tube/Flange |
| Type: |
Volume Type Flow Meter |
| Measuring Media: |
Gas |
| Measuring Principle: |
Mechanics |
Product Description

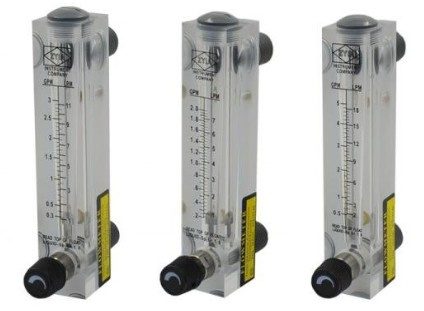

LZM series panel type, pipeline flow meter
LZM series flowmeter is a plexiglass as a main flow meter used to measure the liquid or gas single-phase non-pulsating flow. It is characterized by the appearance; weight; easily broken; long service life.
LZM-6T the O oxygen bar flow meter the flow meter is mainly used to detect and control the flow of oxygen, the flow meter is widely used in the oxygen generator.

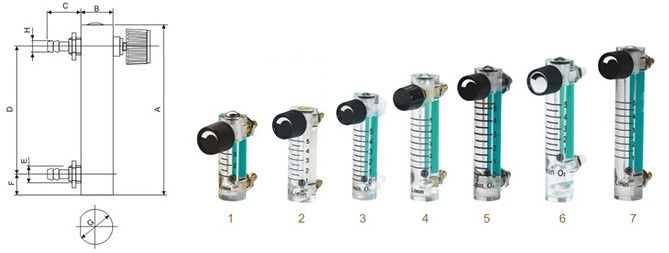

The outline size of LZM-6T 02 Oxygen Flow Meter
The material and code of the parts of LZM-6T 02 Series Flow Meter
| With value | Value | Fitting | O-ring |
| T- with O- No | Brass Ss | 1. Brass 2. Brass chromeplat 3. Ss 4. POM Plasti POM | 1- Fluorin rubber 2- Butyl |
| Model | N0 | Measure Range I/min | Connection | Accuracy | Size(mm) |
| A | B | C | D | E | F | G | H |
| LZM-6TO2 | 1 | 1-3 | tube | ±5% | 60 | 20 | 21(or)19 | 40 | M10×1
(or)
9/16-18 | 8 | 22 | 8 |
| 2 | 1-5 | 70 | 20 | 55 | 7 | 22 | 7 |
| 3 | 0-5
0-9
0-10
| 93 | 20 | 70 | 10 | 22 | 8 |
| 4 | 1-5
0-6 | 96 | 20 | 70 | 13 | 22 | 8 |
| 5 | 0-5 1-5
0.1-1
2-10
0.5-10
0.5-14
4-25
0-1000cc/min | 106 | 20 | 80 | 13 | 22 | 8 |
| 6 | 1-5
0.5-10
2-10 | 108 | 20 | 70 | 25 | 22 | 8 |
| 7 | 0-5
1-5
2-10
0.5-14 | 115.5 | 20 | 90 | 13 | 22 | 8 |
