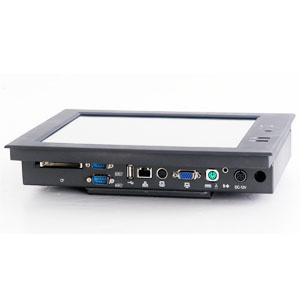

Features:
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
Plastic and metal shell have excellent heat dissipation; ;
Intel M CPU inside;
3 × USB 2.0 interfaces;
Keyboard or Mouse supports;
Extends double RS232;
Wide voltage 12-24V;
4 tracks of audio output;
VGA output;
Strong vibration resistance;
Optional: GPS (external), GPRS(external), Bluetooth (external), Wi-Fi 802.11 b/g/n (external).
Display Screen 10.4 LED backlit
Resolution 800× 600 (1, 440, 000) pixels
Touch Panel 4-wire resistive
Brightness 250cd/m2
Aspect Ratio 4: 3
Contrast Ratio 500: 1
Viewing Angle 160° / 160° (H/V)
OS Windows XP, Windows 7, Linux Ubuntu
CPU Intel Pentium M 1.0GHz / 2 M Cache
Memory 256M (DDR 266/333/400), up to 1.0G
Storage Optional HDD 80G (IDE, 5400 RPM), up to 120G
Chipset Intel 855GM North Bridge, Intel ICH 4 South Bridge
L2 Cache 1024KB
Video Card built-in display memory
Sound Card 4 tracks
Expansion Storage CF Card / USB Flash Memory
Transfer Interface VGA× 1, S VIDEO-OUT× 1, USB× 3, CF slot× 1,
PS/2(Mouse/Keyboard)× 1, RJ45 10/100M LAN× 1,
RS232× 2, 4P-DC port× 1, Audio-OUT× 1
Input Voltage DC 12-24V
Current 2.3 - 3.2A
Power Consumption <40W
Speaker 1W
Working Temperature -10 - 65º C
Storage Temperature -25 - 80º C
Dimension(LWD) 280 × 210 × 60 mm
Weight Weight: 2370g (with HD 90g)
Accessories:
PS/2 connection cable
Power adapter: 1 Piece
Driver disk: 1 Piece
Fixed bracket: 1 Piece
Fixed screw: 4 Piece
Operation manual: 1 Copy
