Product Specifications
Prod Model: |
GT-N02B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Gt-N02b |
Product: |
Paper Box Compression Testing Instrument |
Paper Box Compression Testing Instrument: |
Paper Box Compression Strength Testing Instrument |
Product Description

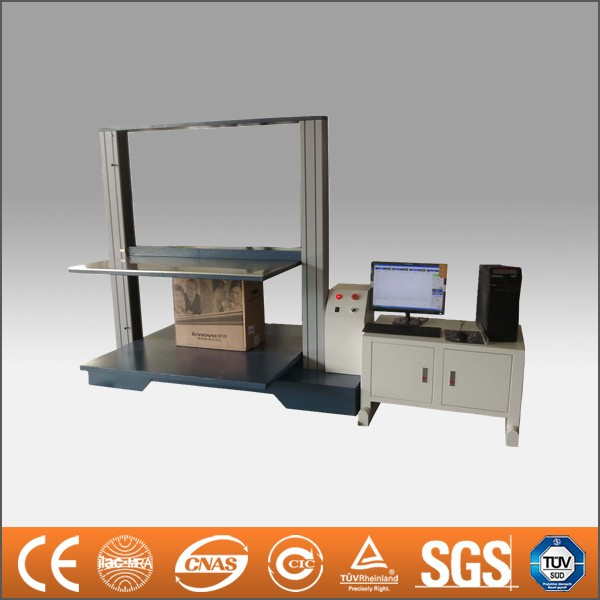

GT-N02B Paper Box Compression Strength Testing Instrument
Paper Box Compression Testing Instrument, Carton Compression Testing Machine
1. Paper Box Compression Strength Testing Instrument
2. Free for one year maintain
3. CE, ISO Calibration certificate
4. SGS Audited supplier
Application
GT-N02B Type Compression Testing Machine with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: Good parallelism, reliable measure precision and high return speed.
The testing machine is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; Data processing function to gain the statistical result of all parameters directly; And automatic reset and fault diagnosis function and easy operation.
Software Function
1. Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers.
2. Can conduct tensile, compression, bending, shearing, tearing and peeling test; Use PC and interface board for data collection, preservation, processing and printing test result; Can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters.
3. Can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
Features
1. Strength test
Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.
2. Constant Value Test
There are two parameters which are to be set in the constant value test: Load force value and
Deformation value. The user can set one or both of them according to the practical requirement. The measure is complete when any parameter reaches the set value.
3. Stacking Test
Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: Compressive strength and testing time (hour). When the test starts, the system will check the current pressure at any moment to ensure the set value; The measure is complete when the test time is expired or the deformation value exceeds the set one within testing time. The overall system is in good parallelism, stationarity and high return speed.
Why choose us?
1. Considering different countries plugs, manually change thevoltage from 110V to 220V, insurance indicator.
2. Excellent Aftersale Service:
16 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Pakaging:
Simulation Animatronic Costom Triceratops are covered with air bubble fim before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Model |
GT-N02B |
Plate Size |
500 mm x 500 mm or 600 mm x 600 mm
800 mm x 800 mm or 1000 mm x 1000 mm
1200 mm x 1200 mm or 1500 mm x 1500 mm |
MAX stroke |
500mm or 600 mm
800mm or 1000 mm
1200mm or 1500mm |
Measuring range |
0-10KN, 20KN, 30KN, 50KN. 70KN, 100KN ( Option) |
Indication error |
+/-0.5% |
Test Speed |
0.001-500mm/min, can set by computer, with up & down fast adjustment button of grips |
Force Unit Switch |
Kgf, N, Ibf, g, ton, Mpa |
Display |
Computer display mode |
Stop Mode |
Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Drive |
Servo motor drive, synchronous wheel and precision ball screw drive |
Power |
AC 220V 5A 50HZ |
Standards |
ISO2872, ISO2874,
ASTM D642 |
