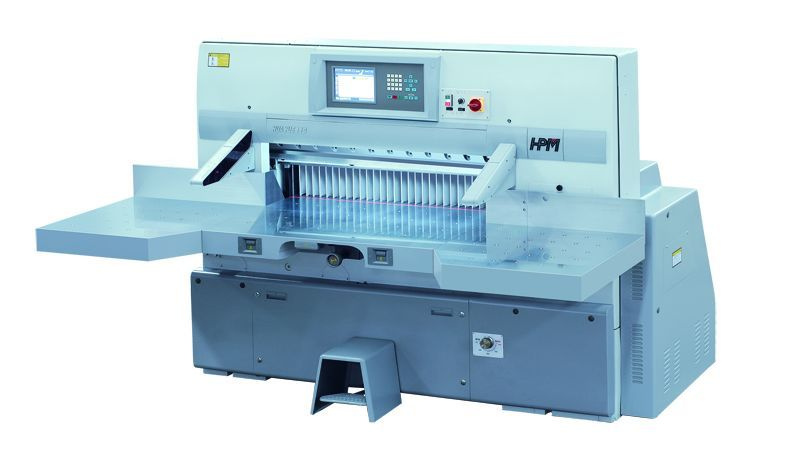

Product Specifications
| Prod Model: |
HPM92/115/130/137/168M15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
92;115;130;137;168 |
| Touch Screen: |
15.6 Inch |
| Automatic Grade: |
Automatic |
| Driven Type: |
Hydraulic |
| Computerized: |
Computerized |
| Blade Material: |
HSS |
| Type: |
Paper Cutting Machine |
| Classification: |
Program Control |
Product Description
Computer System
1. The up-to-date 15.6" Widescreen LCD, full touch screen; Siemens PLC control.
2. Eight languages to choose.3. Metric system and British system two units, show the dimensions of the front knife and the back knife.
4. Stepless speed adjustment function with latest technology,to make the cutting speed from 30 to 48 times within 1 minute,no need to change knife angle for different cutting material.5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 18m/min.
6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.7. With USB, transmit data, to convenient operator make programming and arrangement via PC. 8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic prompt switch failure.make the machine more convenient maintenance.9. The backgauge is driven by a Panasonic servo-motor with four speed levels.
10. Use Italy oil pump and hydraulic system.11. With automatic pushing paper function, the distance can be adjusted.12. Adjustable time delay for knife activation, accurate and convenient.13. Uses icons to show operational functions, which are simple and user friendly.
14. With full automatic cutting function. The backgauge and knife movements can be monitored on the screen.
Machine Performance
1.Knife seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
2.Clamp press paper stack through hydraulic system, the spring re-position.
3.Worm gear drive mechanism, hydraulic clutch, mechanical brake.
4.Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.
5.One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
6.Import ball screw with double linear guides to drive backgauge.
7.High safety infrared protection device according to CE standard.
8.Main electronic units are from French TE and Japanese ORMON famous international brands.
Model
Unit
92
115
130
137
168
Max.Cutting Width
cm
92
115
130
137
168
inch
36.2
45.3
51.2
53.9
66.1
Max.Cutting Length
cm
92
115
130
145
168
inch
36.2
45.3
51.2
57.1
66.1
Max. Cutting Height
mm
120
165
165
165
165
inch
4.7
6.5
6.5
6.5
6.5
Min. Cutting Size
(without false clam pplate)
mm
25
30
30
30
30
inch
1
1.2
1.2
1.2
1.2
Min. Cutting Size
(with false clamp plate)
mm
90
90
90
90
90
inch
3.5
3.5
3.5
3.5
3.5
Front Table Length
cm
63.2
71.5
73
73
75
inch
24.9
28.1
28.7
28.7
29.5
Max.Clamp Pressure
N
30000
40000
40000
45000
60000
Max. Cutting Speed
time/min
42
43
43
43
43
Main Motor
KW
3
4
4
4
8.5
Net Weight
Kg
2300
3700
3900
4100
6200
Gross Weight
Kg
2500
4100
4300
4500
7000
Packing Size(L×W×H)
cm
228×140×188
285×190×210
285×190×210
310×190×210
360×205×220
