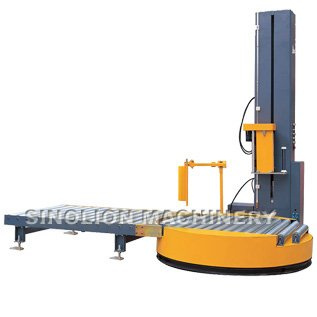

Automatic Stretch Wrapper, packing Machine- Partner with Global Top equipment supplier, ensure system running safely
- Attention to innovation, achieved many kinds of national patent
- Established by a rich experience and skillful team
- Providing one-stop service suited with digram design, making, installation, debugging and aftersales for home and overseas clients
Parameters
Max. Load size (mm) 1100(L)× 1100(W)× 2400(H)
Turntable diameter 1650mm (2000, 2100 available)
Turntable height 500mm (other available)
Turntable bearing capacity 2000kgs (2500, 3000 available)
Turntable speed 3-12rpm
Machine weight 1000kgs
Power supply 220V 50Hz 1Phase
Power 2.0kw
Air 0.4-06Mpa
Overall dimension 2745(L) × 1800(W) × 3330(H)
Packing efficiency 30-40 load/h, basing on loadControl SystemPLC control system
Photo-eye pallet height sensor
0-9 separate top, bottom & up-down wrap count selectors
Photoeye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
312RPM variable turntable speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability
Separate start, reset and emergency stop buttons
Manual carriage up/down switch
Turntable jog button
Conveyor Jog (for each conveyor)
Dust-tight Precious Metal Slip-ring for long reliable service
Remote Control
Turntable1800mm Diameter Structural steel plate
500mm high profile turntable
Position turntable alignment
Soft start/ Soft stop
Heavy duty chain drive
Table Fully Shrouded for Greater Personnel Safety
Film carriagePowered pre-stretch system up to 200% to min film consumption(Prestretch ratio can be specially made according your requirements. )
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Heavy duty double-chain carriage lift, calm and safety

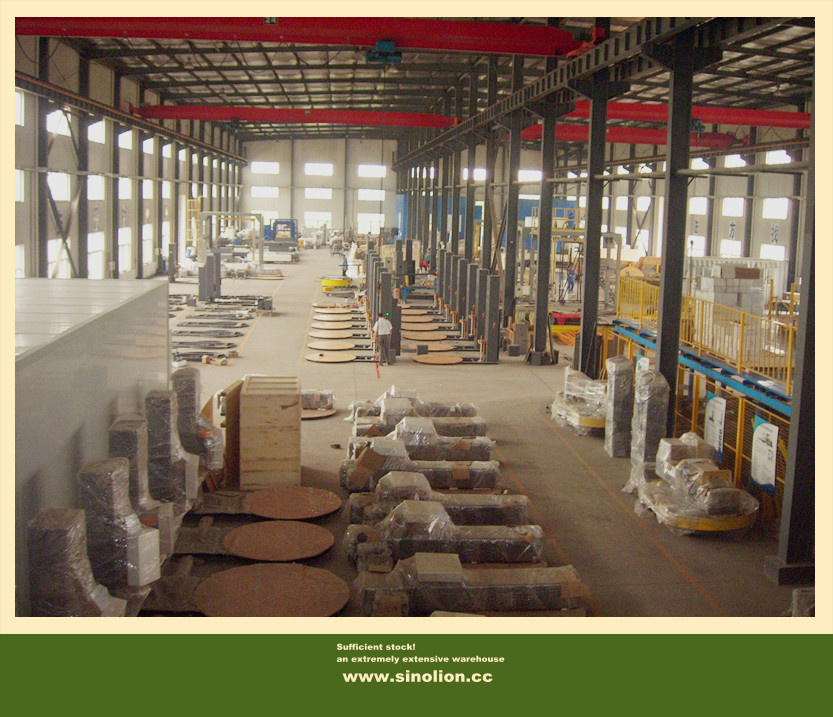

SERVICE Service It is important to know that SINOLION has an extensive repair service.Our company also has an extremely extensive components warehouse in order to be able to offer an immediate solution if problems occur.
Control system |
PLC control system |
|
Touch screen allows operation easily |
|
Auto sensing pallet arribe&start wrap cycle |
|
Auto cut&grab film after wrap finished |
|
Film tension control adjustable |
|
Separate variable carriage up /down speed |
|
Variable T/T rotation speed |
|
Safety tower light alarm |
Turntable |
Go home position after wrap cycle finished |
|
Soft start/soft stop |
|
Turntable slew bearing drive |
|
|
Table fully shrouded for greater personnel safety |
Film carriage |
Powered pre-stretch system up to 300% to min film consumption(pre-stretch ratio van be specially made) |
|
Carriage door opens for effortless roll change and thread film |
Technology Data |
Max load size(mm):1100(L)X1100(W)X2400(H) |
|
Turntable dia:1800mm(2000 available) |
|
Turntable Height:500mm(other available) |
|
Turntable weight capacity:2000kgs(2500,3000 available) |
|
Turntable speed:3-12rpm |
|
Electrics:220V 50HZ 1 phase |
|
Power:2.0 KW |
|
Packing efficiency:30-40 load/h base on load |
|
Air:0.4-0.6Mpa |
|
Machine weight:1000kgs |
Option |
Addition conveyor & other type(chain,belt) avaiable |
|
Safety fence |
|
Infed & outfeed conveyor |
Conveyor |
Heavy structural steel fram construction |
|
Heavy Duty Conveyor Guards |
|
Adjustable Leg Height |
|
Different Roller Diameters and Roll Spacing Available |
|
Photo-eye pallet sensing |
|
Auto film tail cut&wipe system |
Pheumatic clamps grab the film tail after the wrapping finished |
|
Hot wire cut film |
|
Pheumatic brush activate |
Sinolion Machinery is one of the top leader in the stretch packaging industry with emphasis on Quality, Innovation and expertise. An High-technology enterprise in Shandong Province has been over eight years specialize in producing stretch wrapping machines, and also deals with shrink packing machine, strapping machine, taping machine & packaging materials etc. Our products conform to Quality Manage System Standard ISO9001: 2000.
Sinolion Machinery was started, with the vision of creating a "dare to be different company". Different because our research & development facilities is so advanced we design machines that are most economical, reliable and safe to run. Different because we are forever ready in providing our immaculate service to our clients in the industry. Constant contact with our clients will result in a cordial working relationship in a stress free environment. It is indeed very rewarding to learn that the vision has taken off, with local support from all over China, and foreign exports to Europe, North America, Asia etc.
