Product Specifications
| Prod Model: |
SN-GM1-P16192H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Certification2: |
CCC |
| Certification3: |
UL |
| Type: |
Elevator Door System |
Product Description

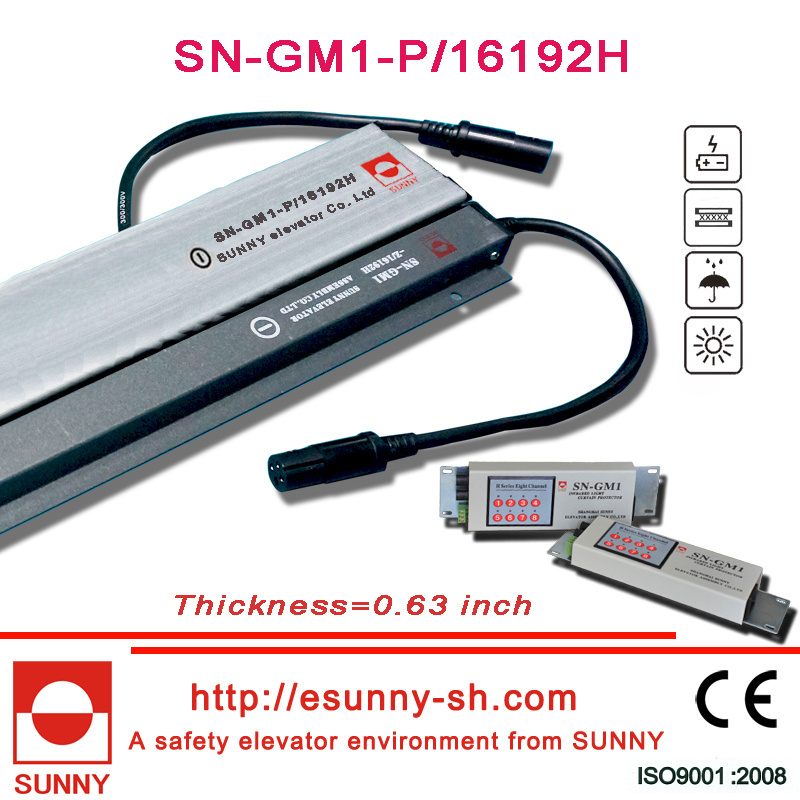

OTIS elevator parts Elevator Infrared Light Curtain / Door Detector H series
Model Name: SN-GM1-P/16192H Side-open Light Curtain
Specifications
1. Patent Product, channel function
2. Elevator side open light curtain
3. Real 64 diodes, 192 beams
4. Hot selling
Description
SUNNY elevator light curtain H series, which has obtained national invention patent (No. ZL01105213.9), is widely used in luxury elevator and is famous for its 8-channel special design, which means anyone can make urgent repair by pushing the blinking switch on the control box to avoid great inonvenience to the elevator users when some diode is broken.
SUNNY light curtain, with 64 pairs of diode inside, 192 beams and 10 ms quick response time, is much safer and much more reliable than the product in the market, which ensure the safest protection area even the door is nearly closed ( door width is under 300mm).
This model SN-GM1-P/16192H side open light curtain is widely used in Hyundai elevator.
About us
Shanghai Sunny Elevator Assembly Co., Ltd, found in 1992, is a 21-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elvator light curtains, photoelectric switches and elevator buttons. The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance, together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service. Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, Wittur etc.
|
Specification |
Model |
|
192H |
320HG |
|
No. of diodes |
64 |
64 |
|
Max. beams |
192 |
320 |
|
Min. beams |
192 |
192 |
|
Distance between Two Diodes |
emitter/ receiver 42/ 55 mm |
|
Size |
1980 height x 30 width x 9/16/35 thickness mm
Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available |
|
Light curtain Detecting Distance |
0~4.5 meters Customized to reach 20 meter |
|
Light-proof |
can work under the sunlight ≥100,000 lux |
|
Installation Tolerance |
Vertical ≤±20mm, horizontal ≤± 10mm, angle ≤±7° |
|
Working Temperature |
-25°C~+65°C |
|
IP |
Ip33 circuit strip Ip63 controller box |
|
Response Time |
≤80 ms |
|
Cable Strength |
3C, 4.5M*2, 1 million times of life |
|
EMC |
En61000 GB/T17626 |
|
Timeout Response |
25±5s Buzzer rouse |
|
Power |
≤7.5 VA |
|
Voltage Range |
85~264VAC 60/50Hz |
